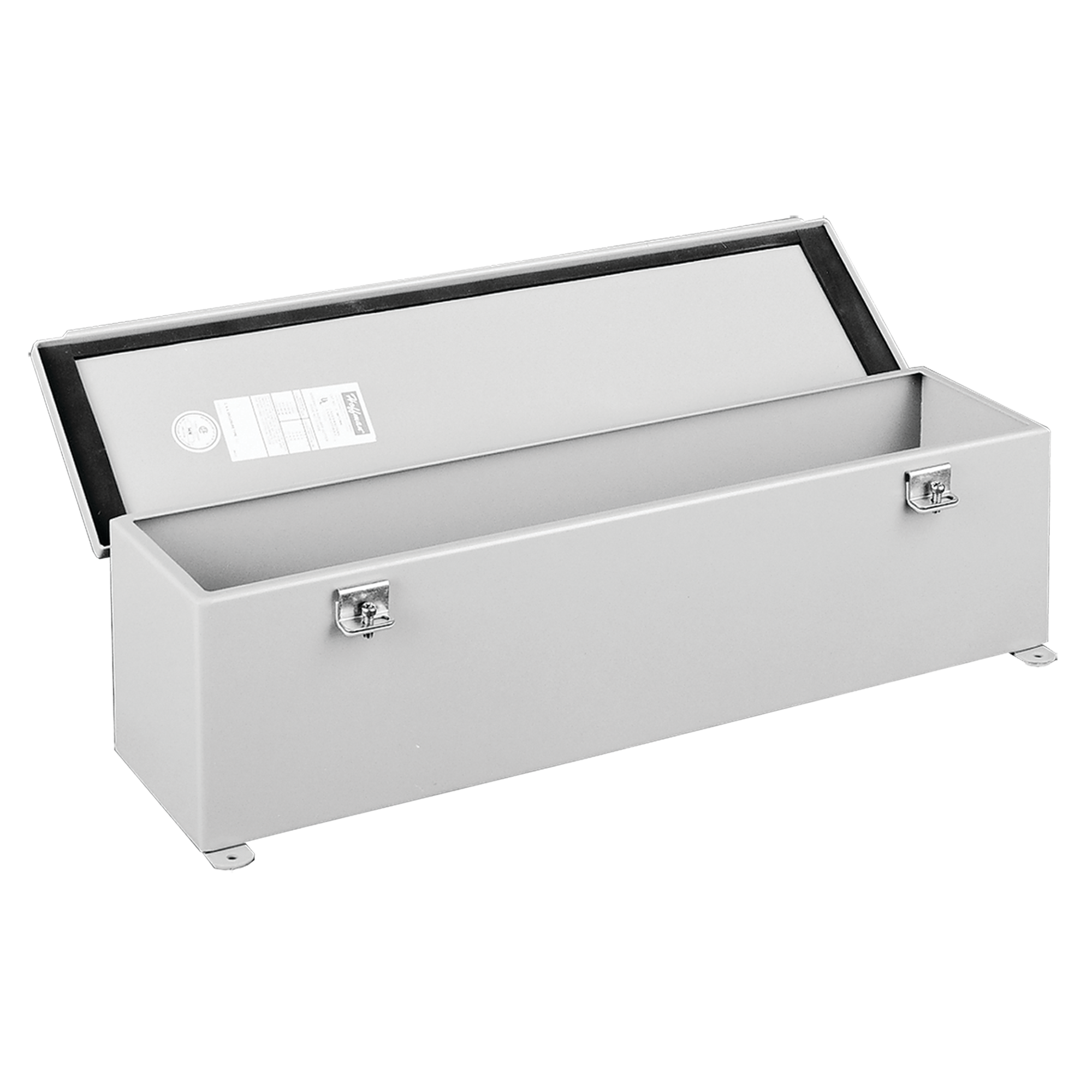

Hoffman F44T18HC Hinged Cover Wiring Trough 4.00x4.00x18.00

Product Description

The HOFFMAN F44T18HC Hinged-Cover Wiring Trough, Type 12 is used for protecting wire and cable distribution, junctions and terminations in a variety of applications. This wiring trough meets basic functionality requirements for moist or dirty applications, with the added feature of a hinged, screw clamp cover for easy access.

• Ends and seams continuously welded and ground smooth
• No holes or knockouts
• Butt hinges

Product Highlights

Wiring trough designed to protect wires and cables in corrosive or dirty indoor and outdoor applications. The removeable top hinged cover provides convenient cable installation and maintenance.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44T18HC
• Country of Origin: MX

Technical Specifications

• Article Number: 16590
• Type: Trough
• Height: 4.6000 in
• Width: 4in
• Depth: 18in
• Material: Mild Steel
• Finish: Galvanized
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Clamp Quantity: 2
• Mounting Bracket Quantity: 2
• UPC: 783510165901
• Bulletin Number: F20HC
• Enclosure Rating: 12, IP65
• Enclosure Type: NEMA 12, IP55
• Size: 4.00x4.00x18.00 in
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• GTiN: 00783510165901
• Product UPC: 78351016590
• Length: 18 Inch
• Approximate Depth: 18 in
• Approximate Height: 4 in
• Approximate Width: 4 in
• Dimensions: 4.60 in H X 19.50 in W X 5.90 in L
• Manufacturer Part Number: F44T18HC
• UPC Code: 00783510165901
• Application: Power Distribution
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: F44T18HC
• Country of Origin: MX
• Harmonization Tariff Schedule Code: 7326908688
• Height [Metric]: 11.6840 cm
• Item Group: F20HC
• Length [Metric]: 49.5300 cm
• NEMA Rating: 12 Indoor, dust-resistant
• Standards: UL 870/27524, JIC standards EGP-1-1967 and EMP-1-1967, CSA, File No. 42184, Type 1, RoHS Compliant
• UNSPSC: 39131714
• UPC 11: 78351016590
• UPC 12: 78351016590
• Width [Metric]: 14.9860 cm
• Manufacturer: HOFFMAN ENCLOSURES
