Hoffman F44lsag Seal Plate, 90 Deg, 4.00x4.00, Steel/Zinc

Product Description

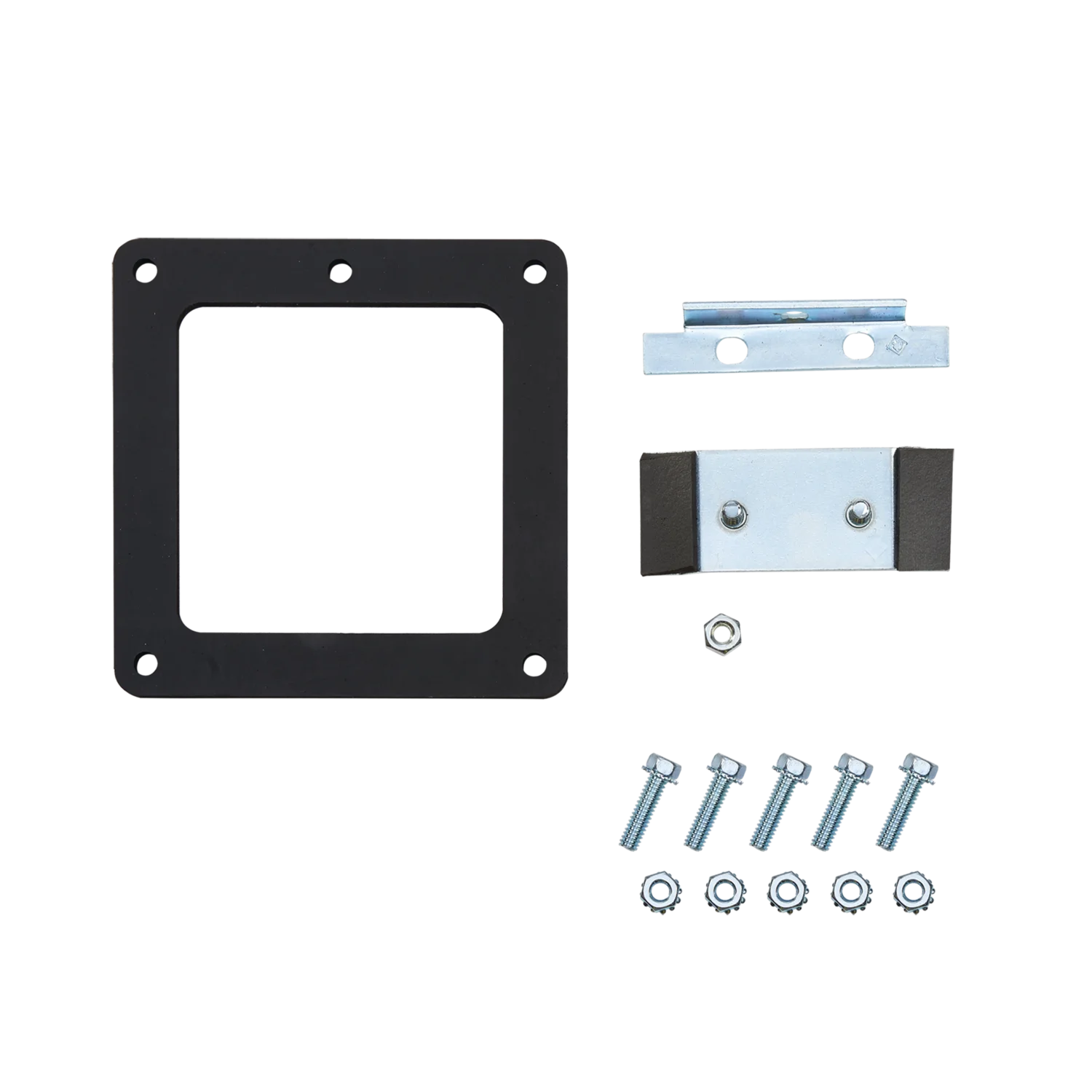

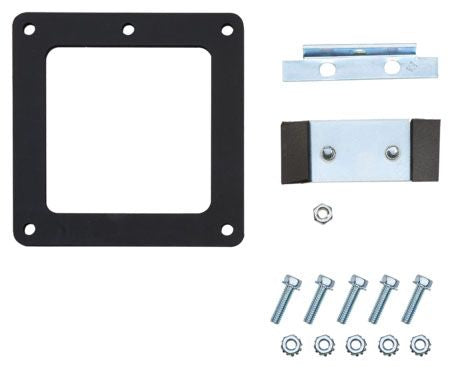

The Hoffman F44LSAG seal plate is designed for wireway applications. This 90-degree angle sealing plate measures 4.00x4.00 inches and is constructed from steel with a zinc finish. It is suitable for use as a junction to a lay-in wireway section or fitting to a closure plate, a box connector, or a non-lay-in section.

• Designed for wireway applications.
• Constructed from steel with a zinc finish.
• Includes one gasket and one set of screws to join sections.

Product Highlights

The Hoffman F44LSAG provides a reliable sealing solution for 90-degree wireway connections, ensuring secure and compliant installations.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44LSAG
• Country of Origin: MEX

Technical Specifications

• Brand: Hoffman
• Material: Steel
• A x B: 4.00 x 4.00 in
• Description: 90-Degree Angle Sealing Plate
• Enclosure Type: 12 & 3R
• Manufacturers Part Number: F44LSAG
• Wireway Type: Lay-In
• Width: 4 Inch
• Height: 4 Inch
• Thickness: 14 Gauge
• Finish: Galvanized; Powder Coated
• Enclosure NEMA: 12
• Enclosure IP Rating: IP54
• Approval: UL 870, CSA
• Accessory Type: Plates
• Lead-Free: True
• RoHS Compliant: True
• Includes: Flange Gasket, Screw
• Applicable Standard: IEC 60529
• Type: Sealing Plate
