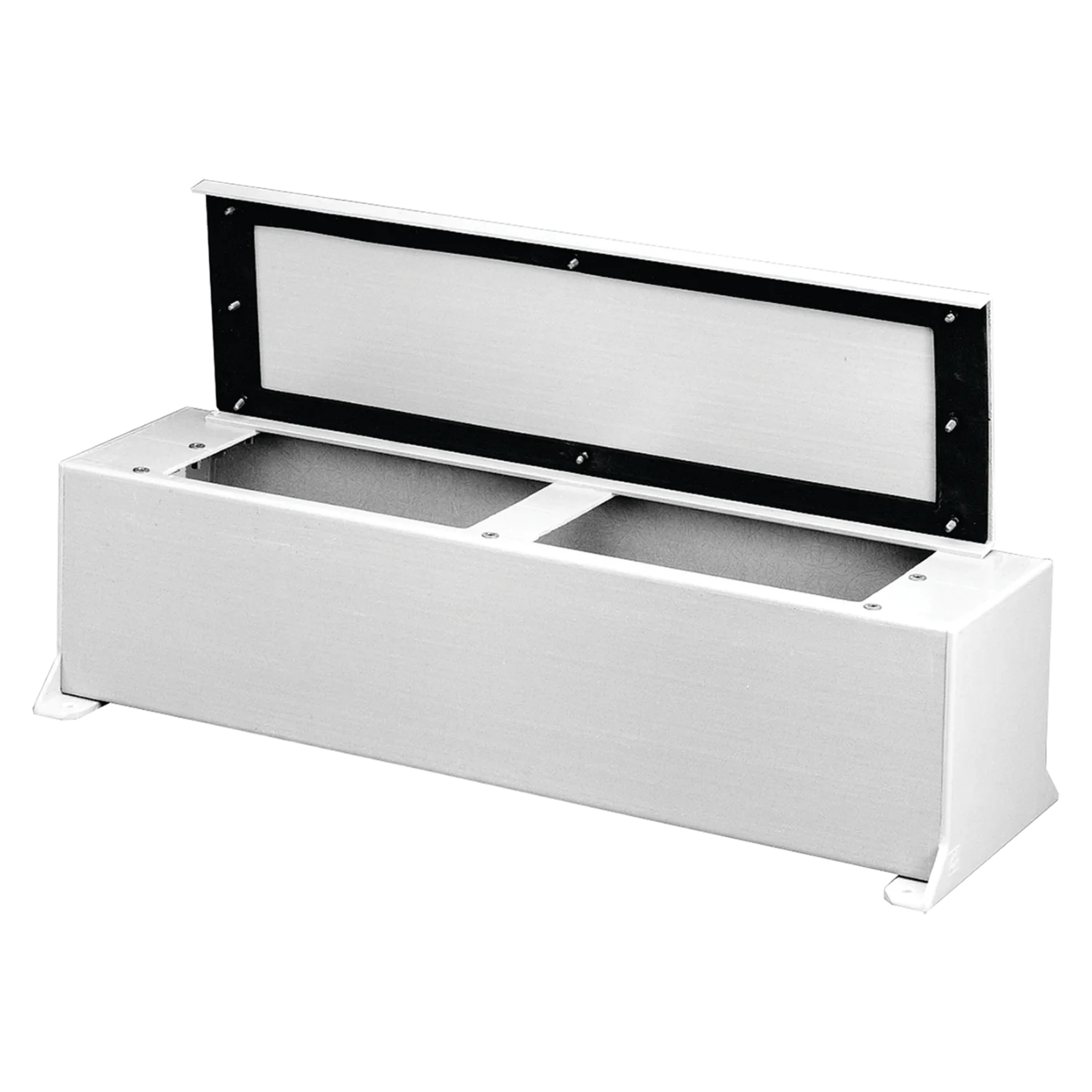

Hoffman F4448FG Wiring Trough 4.00x4.00x48.00 Fiberglass

Product Description

The HOFFMAN F4448FG wiring trough is NEMA Type 12 and 3R and is used for protecting wire and cable distribution, junctions, and terminations. This lightweight, temperature- and chemically-resistant fiberglass trough is designed for use in corrosive or dirty indoor or outdoor applications.

• Captivated Monel cover screws
• Seams are sealed
• Oil-resistant gasket attached with oil-resistant adhesive

Product Highlights

Fiberglass wiring trough protects wire and cable distribution in corrosive environments. Features captivated Monel cover screws and sealed seams.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F4448FG
• Country of Origin: US - United States

Technical Specifications

• Article Number: 15700
• Type: Trough
• Height: 4in
• Width: 4in
• Depth: 48in
• Material: Fiberglass
• Finish: Smooth Matte
• Color: Gray
• Color Code: ANSI 61
• Thickness: 0.12in
• Opening Quantity: 4
• Cover Screw Quantity: 10
• UPC: 783510157005
• Bulletin Number: F25
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F4448FG
• UPC Code: 00783510157005
• ECCN: EAR99
• UNSPSC: 39131710
• Applications: Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
• IP Rating: 55
• Number of Screws: 10
• Sub Brand: Hoffman
• Series: F25
• Cover Type: Captivated Monel Screw
• Application: Used in corrosive or dirty indoor/outdoor applications
• Length: 48
• Primary brand: Hoffman
• Secondary brand: nVent
• Main function: Raceway
• Functions: Wiring trough
• Design: nema type 12 and 3R
• Degree of protection: NEMA 12
• GTIN code: 00783510529406
• Order code / Manufacturer SKU: F4448FG
• Manufacturer product status: Commercialized
• UPC code: 783510529406
