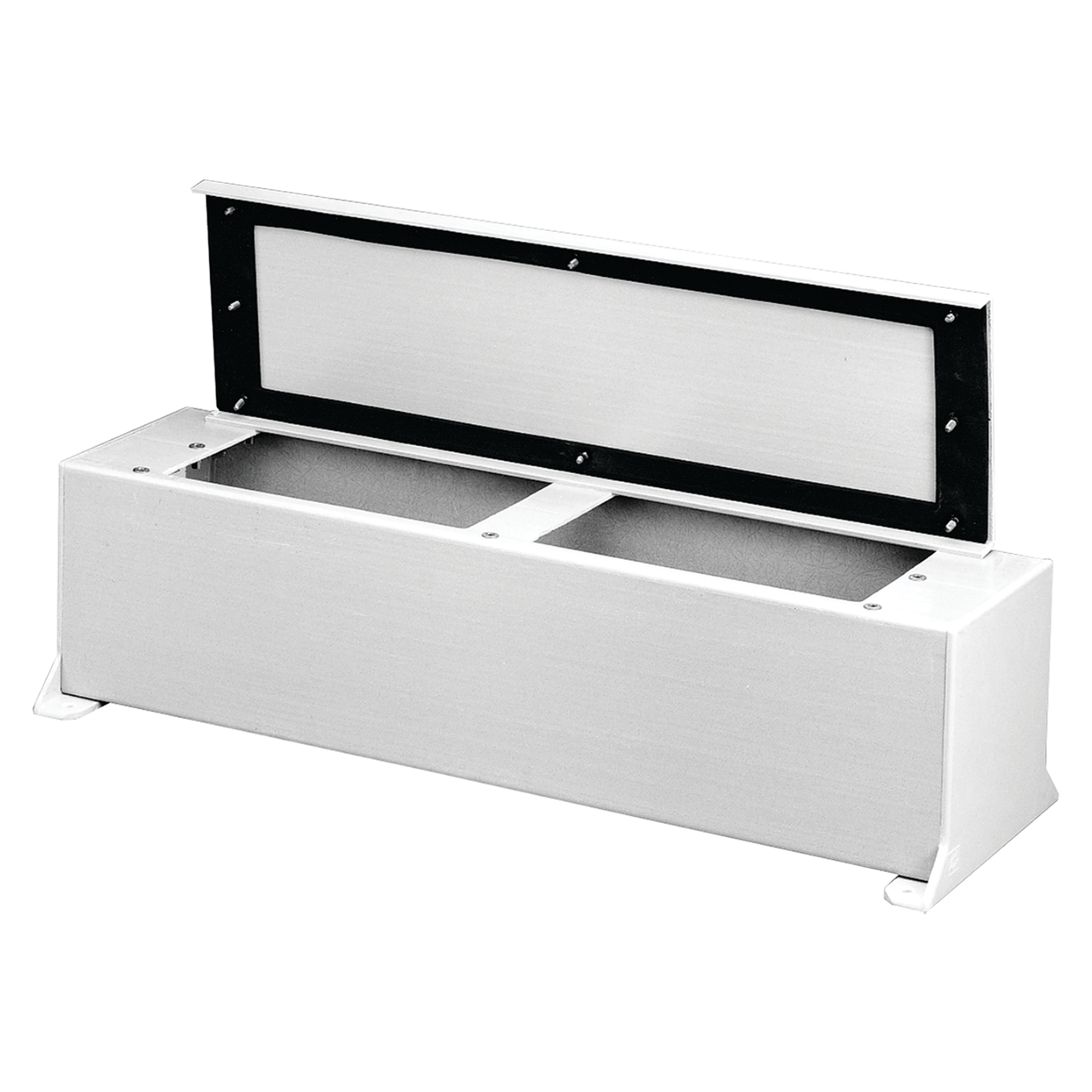

Hoffman F4424FG Wiring Trough 4.00x4.00x24.00 Fiberglass

Product Description

The HOFFMAN F4424FG fiberglass wiring trough is designed for protecting wire and cable distribution, junctions, and terminations. This lightweight, temperature- and chemically-resistant fiberglass trough is suitable for corrosive or dirty indoor or outdoor applications.

• Captivated Monel cover screws
• Seams are sealed
• Oil-resistant gasket attached with oil-resistant adhesive

Product Highlights

Protects wires and cables in corrosive or dirty environments with a removable top cover.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F4424FG
• Country of Origin: US - United States

Technical Specifications

• Article Number: 15680
• Type: Trough
• Height: 4in
• Width: 4in
• Depth: 24in
• Material: Fiberglass
• Finish: Smooth Matte
• Color: Gray
• Color Code: ANSI 61
• Thickness: 0.12in
• Opening Quantity: 2
• Cover Screw Quantity: 6
• Weight: 5lb
• UPC: 783510156800
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F25
• Enclosure Type: NEMA 12/3R
• Description: Fiberglass Wiring Trough
• Number of Compartments: 2
• Manufacturers Part Number: F4424FG
• Brand: Hoffman
• A x B x C: 4.00 x 4.00 x 23.88 in
• Applications: Power Distribution; Hygienic Environments; Corrosive Environments
• Number of Screws: 6
• Sub Brand: Hoffman
• Product UPC: 78351015680
• Length: 24.1 Inch
• DISK UNSPSC: 39131710
• ECCN: EAR99
• Series: F25 Series
• UNSPSC: 39131710
• Approximate Depth: 24 in
• Approximate Height: 4 in
• Approximate Width: 4 in
• Dimensions: 6.60 in H X 24.10 in W X 6.40 in L
• UPC Code: 78351015680
