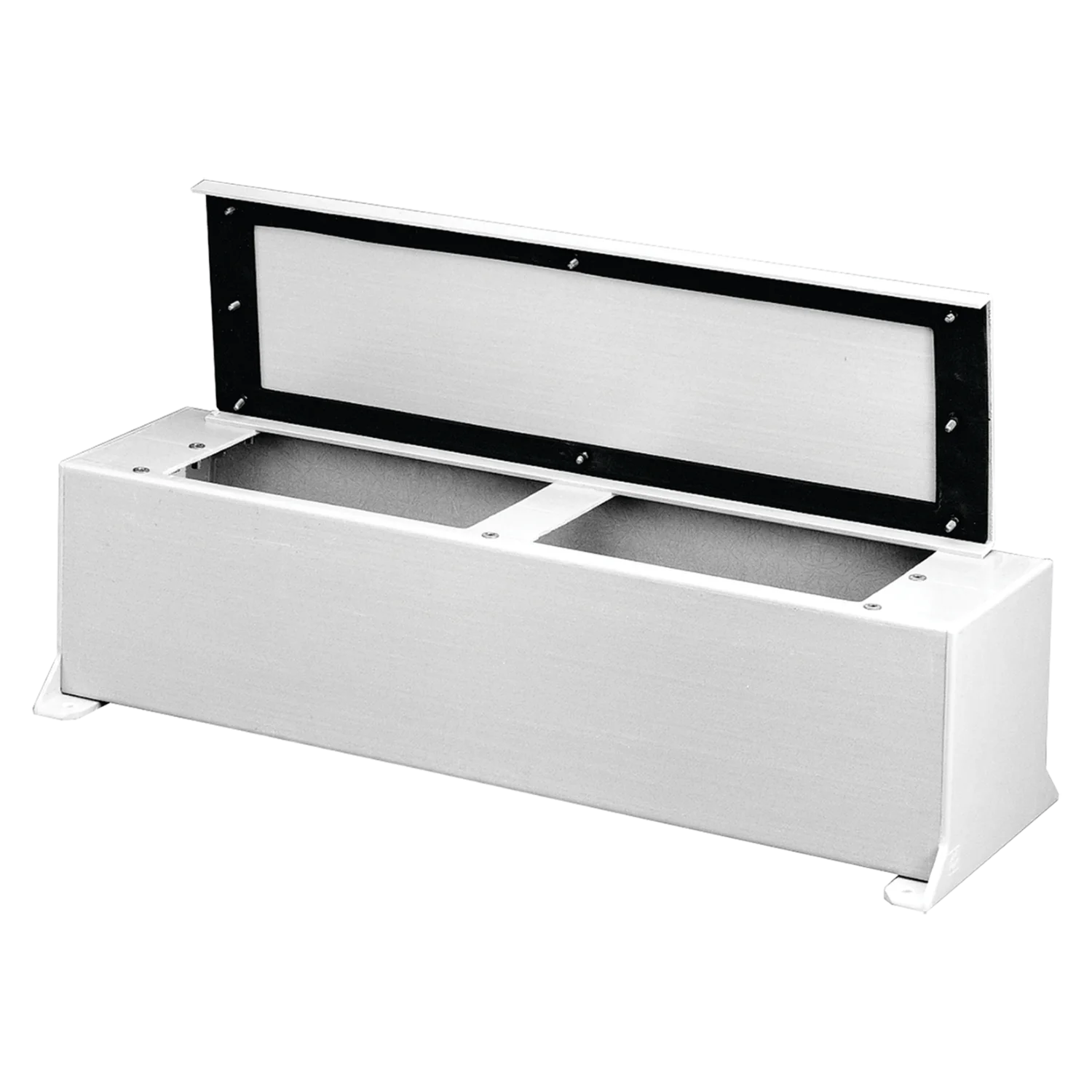

Hoffman F4412FG Wiring Trough 4.00x4.00x12.00

Product Description

The HOFFMAN F4412FG wiring trough is designed for protecting wire and cable distribution, junctions, and terminations. This fiberglass trough is temperature and chemical resistant, making it suitable for corrosive or dirty indoor or outdoor applications. The trough features a screw cover and comes in dimensions of 4.00x4.00x12.00 inches.

• Captivated Monel cover screws
• Seams are sealed
• Oil-resistant gasket attached with oil-resistant adhesive

Product Highlights

Protects wires and cables in harsh environments with a durable, chemical-resistant fiberglass design.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F4412FG
• Country of Origin: US - United States

Technical Specifications

• Article Number: 15670
• Type: Trough
• Height: 4in
• Width: 4in
• Depth: 12in
• Material: Fiberglass
• Finish: Smooth Matte
• Color: Gray
• Color Code: ANSI 61
• Thickness: 0.12in
• Opening Quantity: 1
• Cover Screw Quantity: 4
• UPC: 783510156701
• Bulletin Number: F25
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Manufacturer: Hoffman Enclosures, Inc.
• Mounting Type: Screw
• Part Status: Active
• Wire Duct Type: Solid (Raceway), 2 Piece
• ECCN: EAR99
• Series: F25 Series
• Approximate Depth: 12 in
• Approximate Height: 4 in
• Approximate Width: 4 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F4412FG
• UPC Code: 00783510156701
• Primary brand: Hoffman
• Secondary brand: nVent
• Main function: Raceway
• Functions: Wiring trough
• Design: nema type 12 and 3R
• Degree of protection: NEMA 12
• Technical compatibility with: Industrial - industrial wireway - industrial wiring troughs
• GTIN code: 00783510522001
• Order code / Manufacturer SKU: F4412FG
• Manufacturer product status: Commercialized
• UNSPSC code: 39131710
• UPC code: 783510522001
