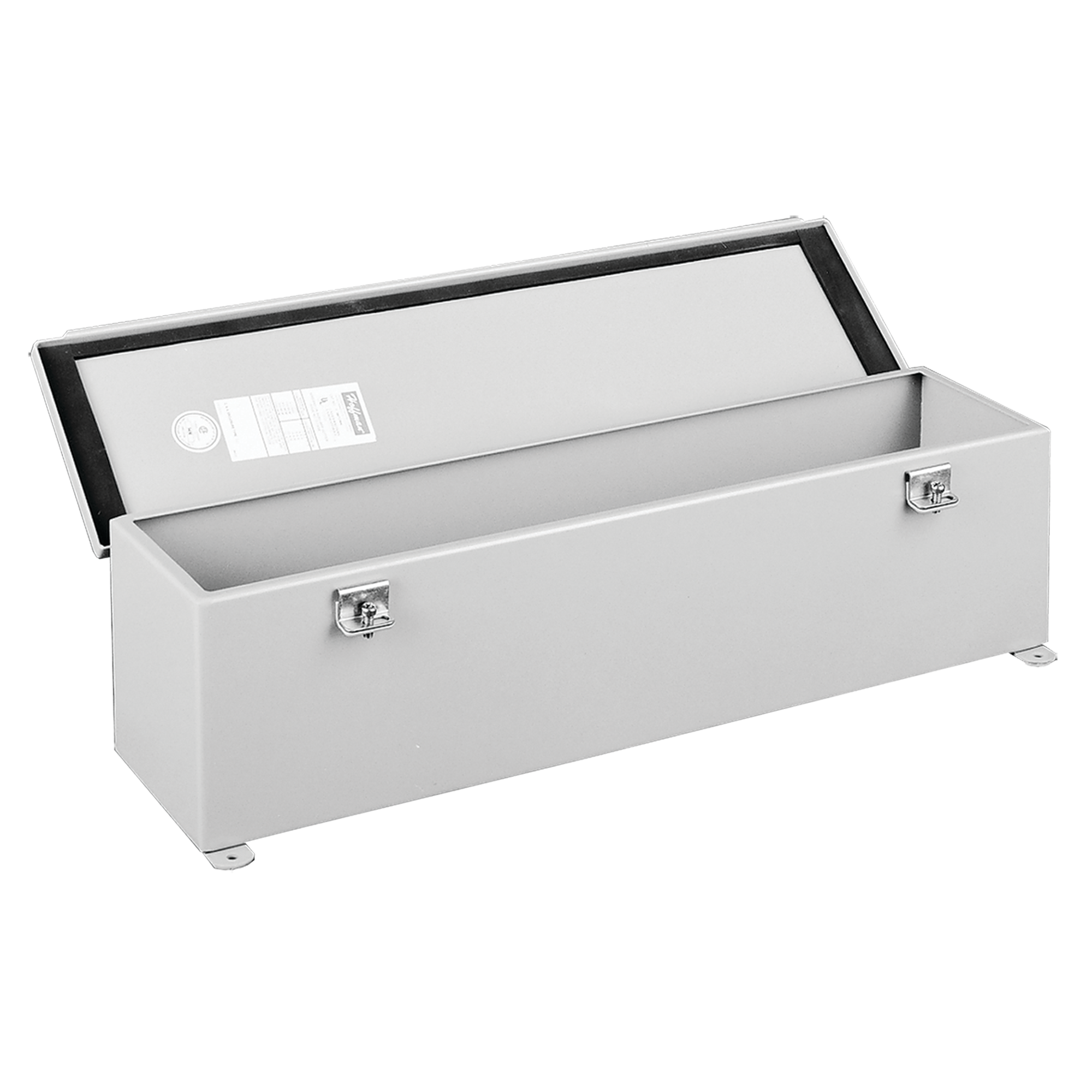

Hoffman F22T60HC Hinged Cover Wiring Trough 2.50x2.50x60.00

Product Description

The HOFFMAN F22T60HC hinged-cover wiring trough, Type 12, protects wire and cable distribution, junctions, and terminations in various applications. Meeting basic functionality requirements for moist or dirty environments, it features a hinged, screw clamp cover for easy access. It is made of mild steel with galvanized and powder-coated finish.

• Ends and seams continuously welded and ground smooth
• No holes or knockouts
• Butt hinges

Product Highlights

This wiring trough is ideal for protecting electrical wiring in demanding environments, offering easy access and robust construction.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22T60HC
• Country of Origin: Mexico

Technical Specifications

• Article Number: 16560
• Type: Trough
• Height: 2.5in
• Width: 2.5 in
• Depth: 60in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Clamp Quantity: 4
• Mounting Bracket Quantity: 3
• UPC: 783510165604
• Bulletin Number: F20HC
• Applications: Power Distribution
• IP Rating: 60
• Size: 2.50x2.50x60.00 in
• Standard: CSA,File No. 42184,File No. E27524,IEC 60529,IP55,JIC Standards EGP-1-1967 And EMP-1-1967,NEMA Type 12,Type 1,UL 870 Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Manufacturer Part Number: F22T60HC
• Series: F20HC
• NEMA Rating: NEMA 12
• Cover Type: Butt Hinged/Screw Clamp
• Polyester Powder Painted: Polyester Powder Painted
• UNSPSC: 39131714
• Country of Origin: Mexico
• BABA Compliant: No
