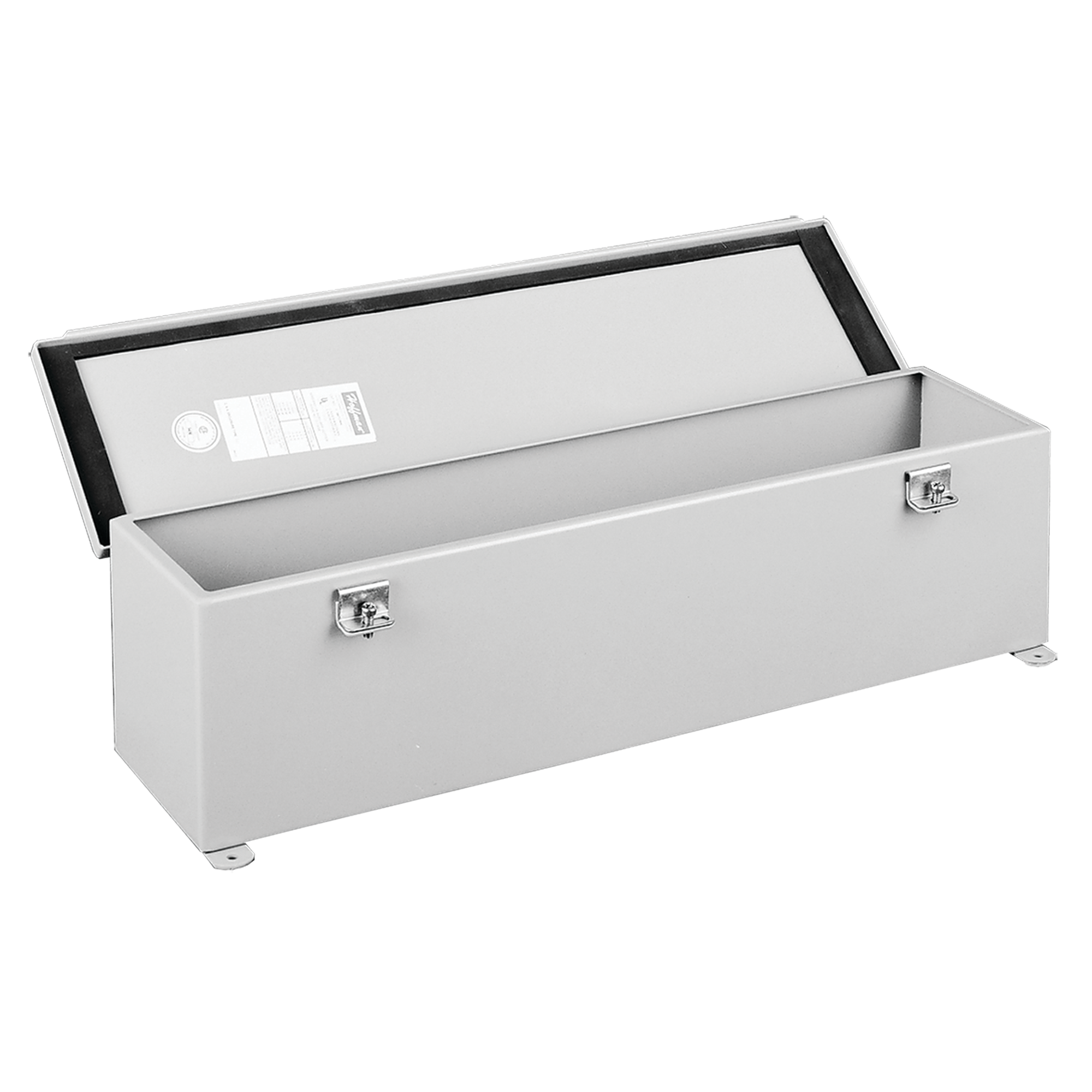

Hoffman F22T48HC Hinged Cover Wiring Trough 2.50x2.50x48.00

Product Description

The Hoffman F22T48HC hinged-cover wiring trough, NEMA Type 12, protects wire and cable distribution, junctions, and terminations. It meets functionality requirements for moist or dirty applications, with a hinged, screw clamp cover for easy access.

• Ends and seams continuously welded and ground smooth
• No holes or knockouts
• Butt hinges

Product Highlights

Wiring trough protects wire and cable distribution in moist or dirty applications. Features a hinged, screw clamp cover for easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22T48HC
• Country of Origin: MX - Mexico

Technical Specifications

• Applications: For Moist or Dirty Applications, with the Added Feature of a Hinged, Screw Clamp Cover for Easy Access
• Color Coding: ANSI 61
• IP Rating: 60
• Material: Steel
• Size: 2.50x2.50x48.00 in
• Standard: CSA,File No. 42184,File No. E27524,IEC 60529,IP55,JIC Standards EGP-1-1967 And EMP-1-1967,NEMA Type 12,Type 1,UL 870 Listed
• Type: Trough
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• UPC: 783510165505
• Finish: Powder Coated
• Depth: 64 mm
• Height: 2-1/2 Inch
• Length: 48 Inch
• Thickness: 1.9 mm
• Width: 64 mm
• Series: F20HC Series
• Manufacturer Part Number: F22T48HC
• Color: Gray
• Bulletin Number: F20HC
