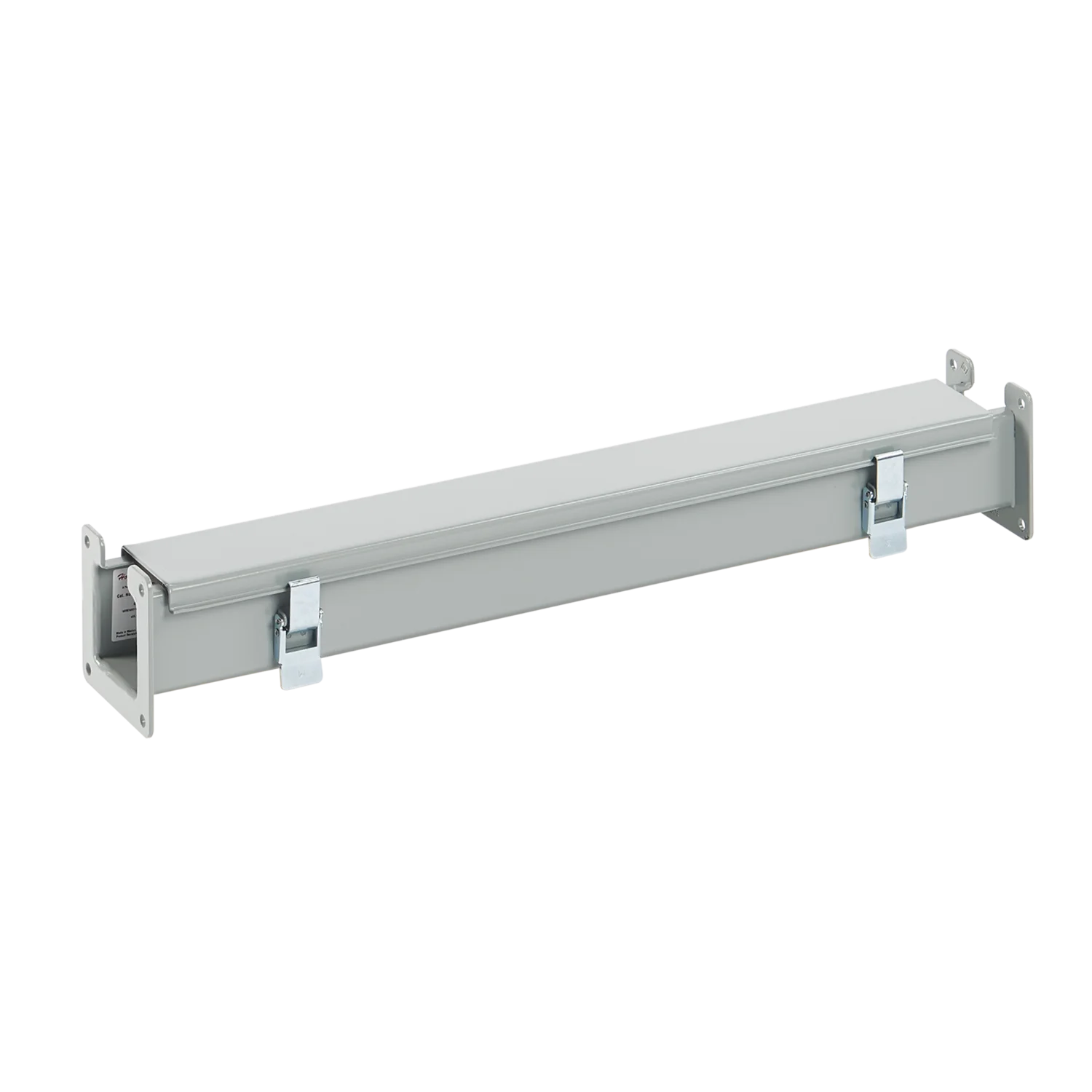

Hoffman F22L24 Straight Section Lay-in Hinged-Cover Type 12, 2.50x2.50x24.00

Product Description

The HOFFMAN F22L24 Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.

• Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
• This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
• Seams continuously welded and ground smooth

Product Highlights

The HOFFMAN F22L24 wireway is designed to protect wires and cables in corrosive or dirty indoor and outdoor applications. Featuring quick-release latches for easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22L24
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 18030
• Type: Straight Section
• Height: 2.5in
• Width: 2.5in
• Depth: 24in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• UPC: 783510180300
• EAN: 8713574238848
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F22L24
• Numeric ID: 2510412
• UPC Code: 78351018030
• ECCN: EAR99
• NEMA Rating: 12
• Cover Type: Quick Release Latch Cover
• Color Family: Gray
• Length: 24 in.
• UNSPSC: 39131710
• Size: 2-1/2 in x 2-1/2 in x 24 in
• Gauge: 14 ga
• Features: Dust-Resistant
• Standards: Certified by Canadian Standards Association.
• Protection Rating: NEMA Type 12; IP54
