Hoffman F22HD Drop Hanger Fits 2.50x2.50

Product Description

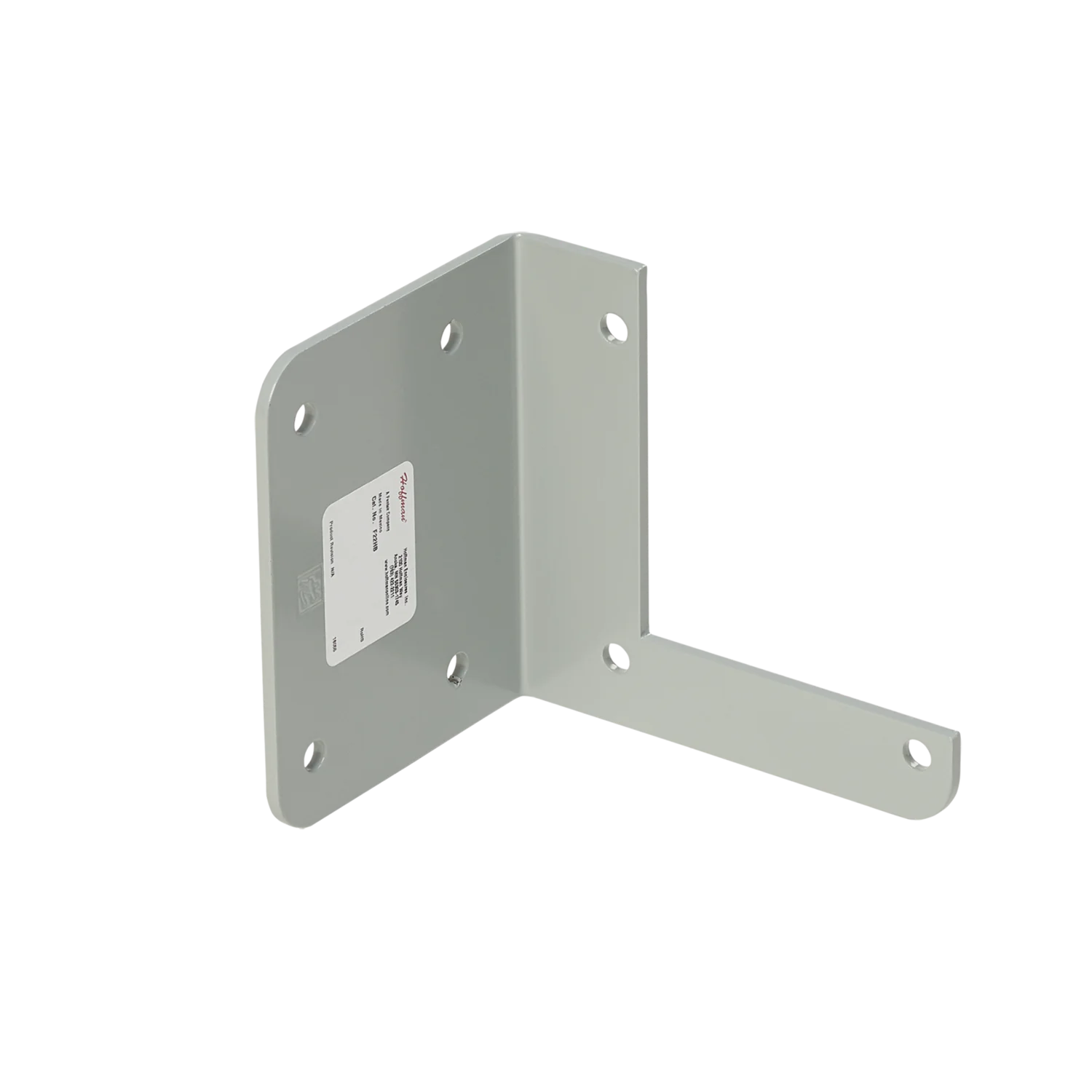

The HOFFMAN F22HD Drop Hanger is used to support a wireway run. The drop hanger is normally attached to an overhead beam or ceiling while the bracket hanger can be used for wall, floor or ceiling installations. Hangers are finished with paint over plated surfaces.

• Hangers are used to support a wireway run
• The drop hanger is normally attached to an overhead beam or ceiling while the bracket hanger can be used for wall, floor or ceiling installations
• Hangers are finished with paint over plated surfaces

Product Highlights

The Hoffman drop hanger supports wireway runs and attaches to overhead beams or ceilings. It features a paint over plated surfaces finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22HD

Technical Specifications

• Article Number: 14170
• Type: Hanger
• Height (H): 2.5in
• Width (W): 2.5in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness (T): 14ga
• Sealing Plate Type: None
• Sealing Plate Quantity: 0
• UPC: 783510141707
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F22HD
• Numeric ID: 2510412
• Applications: Power Distribution
• IP Rating: 54
• Sub Brand: Hoffman
• IP/NEMA Rating: IP54
• Height: 2.500 in
• Width: 2.500 in
