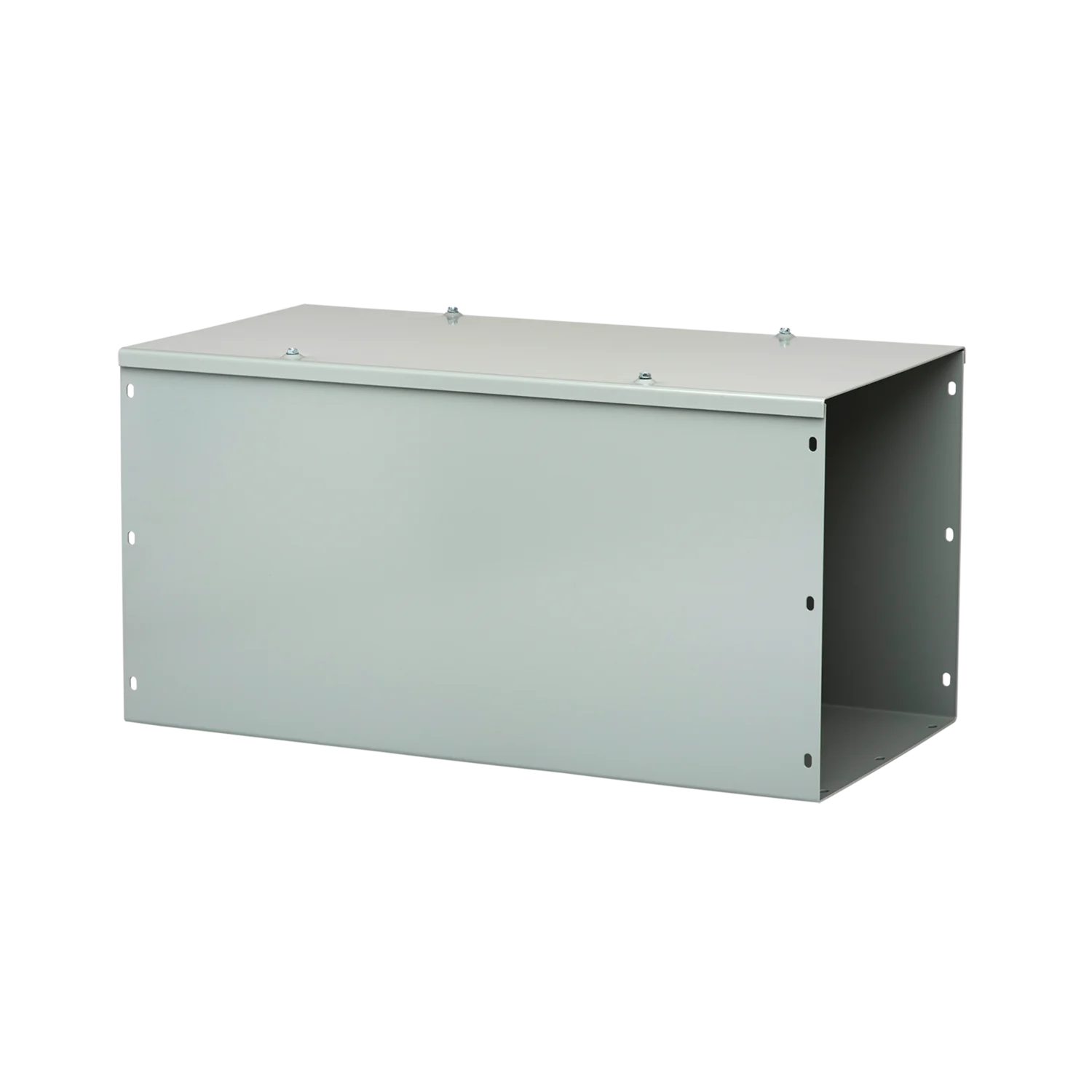

Hoffman F22G12WK Straight Section Lay-in Hinged-Cover Type 1 2.5x2.5x12

Product Description

The HOFFMAN F22G12WK straight section lay-in hinged-cover type 1 is used for enclosing wire and cable in wireway runs. The sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation. Available in lengths from 12 inch to 120 inch, with or without knockouts.

• Used for enclosing wire and cable in wireway runs
• Sections are completely open on one side so wires and cables can be laid in along wireway run
• No pulling through of wires or cables prevents damage to insulation

Product Highlights

The HOFFMAN F22G12WK straight section is designed for easy wire and cable management with its lay-in feature and hinged cover.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22G12WK
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 52850
• Type: Straight Section
• Height: 2.5in
• Width: 2.5in
• Depth: 12in
• Material: Steel
• Finish: Polyester Powder Painted
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Sizes: (8) 0.50 - 0.75"
• Cover Style: Hinge
• UPC: 783510528508
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F40
• ECCN: EAR99
• UNSPSC: 39131710
• NEMA Rating: 1
• Cover Type: Hinged
• Knockout Size: 1/2 to 3/4 in
• Manufacturer: nVent
• Number of Knockouts: 8
• Package Type: CASE
• Series: F40
• Type / Style: Lay-In Straight Section
