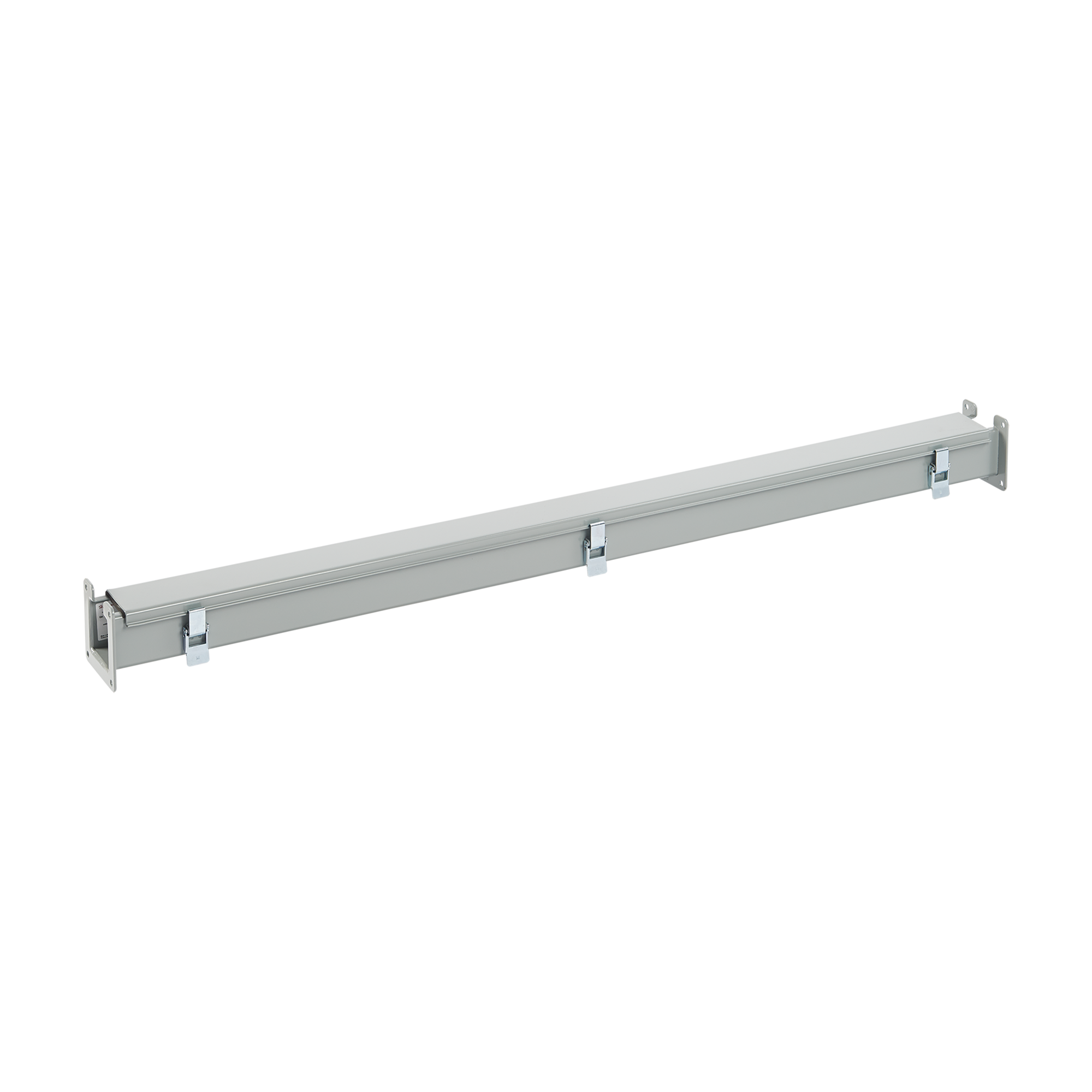

Hoffman F126L48 Straight Section Lay-in Hinged-Cover Type 12, 12.00x6.00x48.00

Product Description

The HOFFMAN F126L48 Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.

• Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
• This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
• Seams continuously welded and ground smooth

Product Highlights

The F126L48 wireway is designed for industrial applications, protecting wiring from oil and contaminants with easy cable lay-in and quick-release latches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F126L48
• Country of Origin: MX

Technical Specifications

• Article Number: 18760
• Type: Straight Section
• Height: 12in
• Width: 6in
• Depth: 48in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• UPC: 783510187606
• EAN: 8713574238589
• Applications: Power Distribution
• IP Rating: 54
• Brand: nVent HOFFMAN
• Sub Brand: Hoffman
• Application: Power Distribution
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: F126L48
• Country of Origin: MX
• NEMA Rating: 12
• Standards: UL 870, File No. E27524 Listed, CSA File No. 42184, RoHS Compliant
• UNSPSC: 39131710
• ECCN: EAR99
• Cover Type: Quick Release Latch Cover
• Color Family: Gray
• Dimensions: 8.50 in H X 52.00 in W X 14.25 in L
