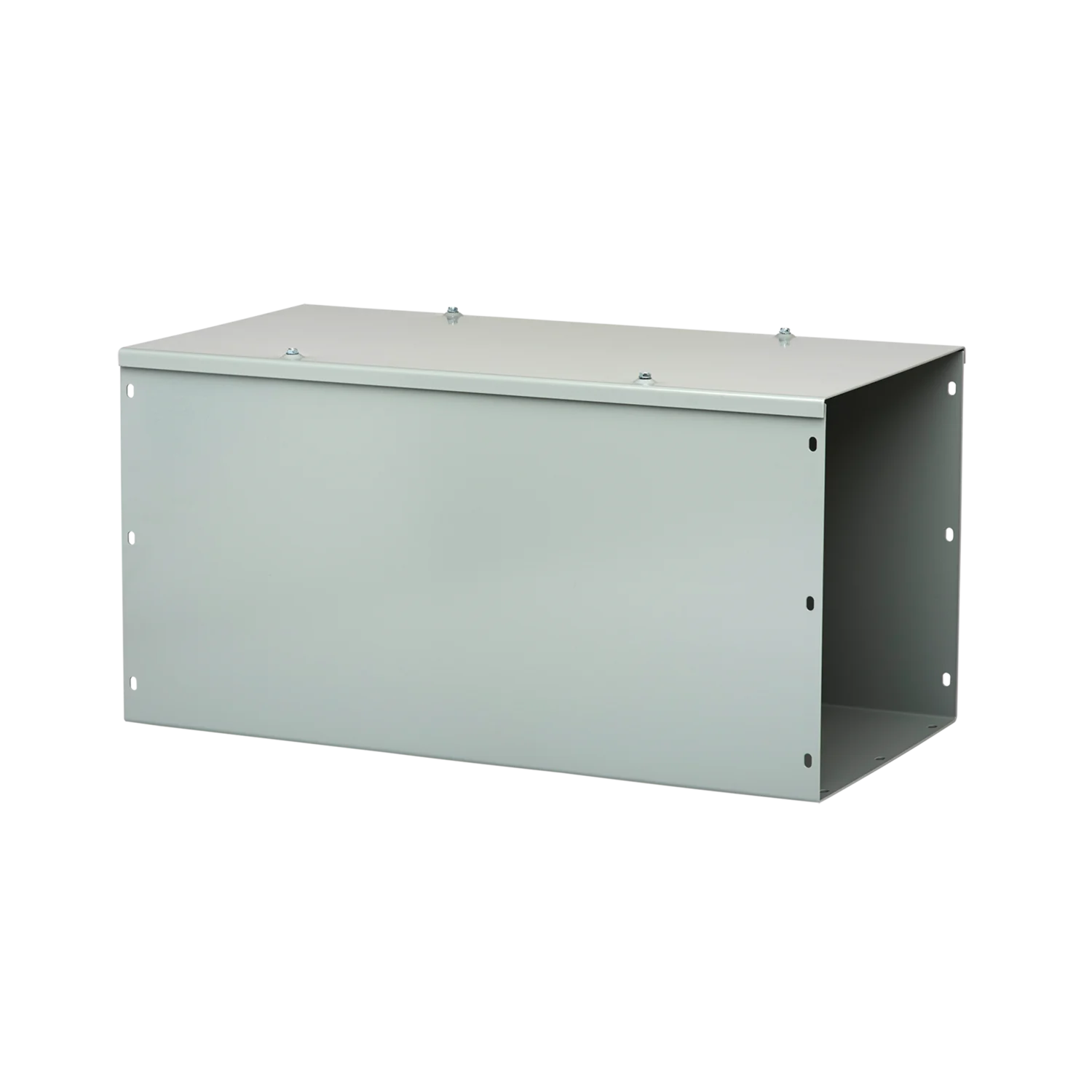

Hoffman F1212G60 N1 Layin Wirewy-No K 12 inches x 12 inches x 60 inches

Product Description

The Hoffman F1212G60 N1 Layin Wirewy-No K is a straight section wireway designed for enclosing wires and cables in wireway runs. The sections are open on one side, allowing wires and cables to be laid in along the wireway run. This prevents damage to insulation that can occur in pull-through wiring systems.

• Available in lengths from 12 inch to 120 inch, with or without knockouts
• Constructed from steel with a painted finish
• Features a liftoff cover without knockouts

Product Highlights

This Hoffman wireway is ideal for power distribution applications, offering electrical protection with a NEMA Type 1 rating and an IP30 rating.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F1212G60
• Country of Origin: Mexico

Technical Specifications

• Material: Steel
• Finish: Painted Steel
• Knockouts: No
• Type: Straight Section
• Style: Liftoff Cover No Knockouts
• Width: 12 in
• Height: 12 in
• Wireway: Lay-In NEMA Type 1 Hinged-Cover Wireway
• IP Rating: IP30
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: NEMA Type 1 Indoor; electrical protection
• Type Number: Type 1
• Depth (Imperial): 60 in
• Protection Rating: NEMA Type 1
• Thickness (Imperial): 14 ga
• Depth: 60 Inch
• Length: 60 in
• Color Coding: ANSI 61
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351051860
• Cover Type: Hinged
• Series: F40
• IP/NEMA Rating: NEMA 1, IP30
• Number of Knockouts: 0
