Hoffman F121290EGV Wireway Ell Ww 90 degree

Product Description

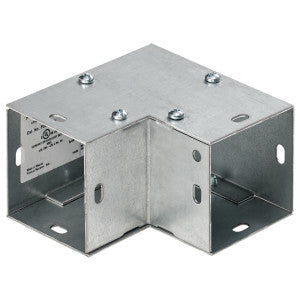

The HOFFMAN F121290EGV wireway elbow facilitates right-angle installations in wireway systems. Designed for lay-in applications, any side of this elbow can be removed, allowing wires and cables to be laid in along the wireway run. This prevents damage to insulation, common in pull-through systems. Sides are secured with screws.

• Used for right-angle installations.
• Any side can be removed, retaining lay-in feature regardless of elbow orientation.
• Wires and cables can be laid in along wireway run.

Product Highlights

This galvanized 90-degree elbow features a lay-in design, simplifying wire and cable installation in wireway systems.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F121290EGV
• Country of Origin: MEX

Technical Specifications

• Bend Angle: 90 Degree
• Width: 12 Inch
• Height: 12 Inch
• Material: 16/14 Gauge Steel (Body/Cover)
• Finish: Unpainted Galvanized
• Enclosure: NEMA 1, IP30
• Approval: UL 870, CUL, CSA C22.2
• RoHS/Reach Compliant: RoHS/Reach Compliant
• Applicable Standard: IEC 60529, EEMAC Type 1
• Type: Elbow
• Thickness: 14ga
• Application: Power Distribution
• Brand: nVent HOFFMAN
• Modification Services: Yes
• NEMA Rating: 1 Indoor, electrical protection
• Protection Rating: NEMA Type 1
• Thickness (Imperial): 14
• Thickness (Metric): 1.9
• Type Number: Type 1
• ECCN: EAR99
• Series: F40GF Series
• Fitting Type: 90 Degree Elbow
• Cover Type: Flat, Screw
