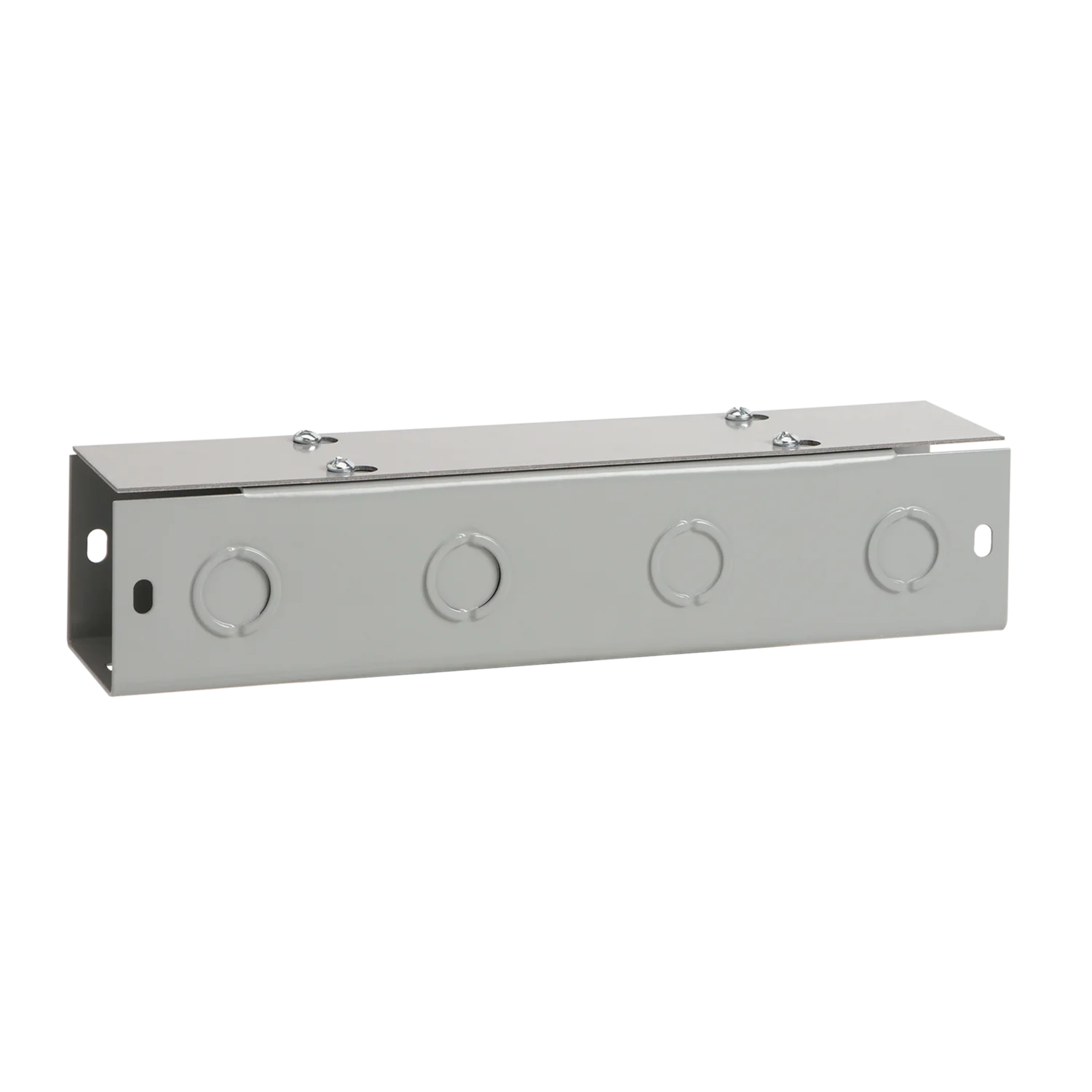

Hoffman F1010T112GVP Straight Section Lay-in Flat-Cover Type 1 10x10x12

Product Description

The HOFFMAN F1010T112GVP straight sections are used for enclosing wire and cable in wireway runs. The sections are completely open on one side so wire and cable can be laid-in along run, which eliminates the action of pulling wires or cables that can result in insulation damage. Available in lengths from 12 to 120 inches, with or without knockouts.

• Lay-in design eliminates pulling wires or cables, preventing insulation damage.
• Flat-cover design supports flush mounting with walls or ceilings.
• Covers feature keyhole screw slots for easy installation and removal.

Product Highlights

Straight sections enclose wire and cable in wireway runs. The lay-in design protects wires and cables in corrosive or dirty indoor and outdoor applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F1010T112GVP
• Country of Origin: Mexico

Technical Specifications

• Article Number: 36329
• Type: Straight Section
• Height: 11 inch
• Width: 11 inch
• Depth: 12in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510363291
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F40FC
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F1010T112GVP
• Numeric ID: 2510412
• Enclosure NEMA Rating: Type 1
• Enclosure Length: 12"
• Wire Enclosure Composition: Steel
• Wire Enclosure Component Size: 10"
• Enclosure Gauge: 16 Gauge
• Enclosure Environment Rating: Indoor
• Enclosure Latch Type: Screw
• Manufacturer: Hoffman
• Knockouts: No
• Cover Type: Flat
• NEMA Rating: 1
• Application: Power Distribution
• Length: 13 inch
• UNSPSC: 39131710
