Hoffman F1010GCP Clsr Plate W/Ko Ww, 10 Inch

Product Description

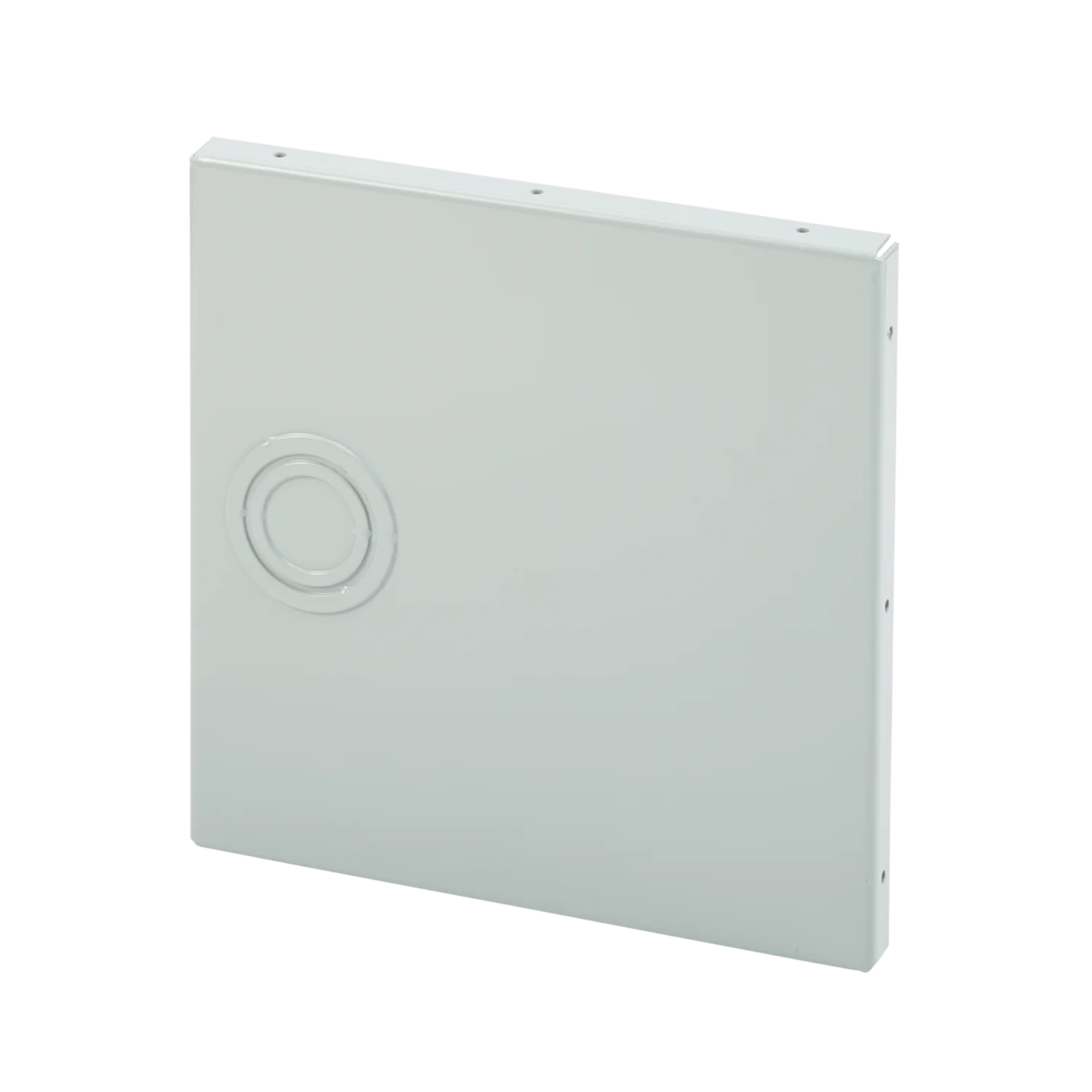

The HOFFMAN F1010GCP is a wireway section closure plate designed for lay-in wireways. Constructed from 14/16 gauge steel with an ANSI 61 gray polyester powder-coated finish, it provides a NEMA 1 enclosure. This closure plate is UL 870, CUL, and CSA C22.2 approved and conforms to IEC 60529 standards.

• Designed for lay-in wireway sections
• Constructed from 14/16 gauge steel
• Features ANSI 61 gray polyester powder-coated finish

Product Highlights

This closure plate seals the end of a wireway section or run, ensuring protection and compliance with industry standards.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F1010GCP
• Country of Origin: MEX

Technical Specifications

• Wireway Type: Lay-In
• Wireway Cover Type: Screw
• Width: 10 Inch
• Height: 10 Inch
• Material: 14/16 Gauge Steel
• Finish: ANSI 61 Gray Polyester Powder Coated
• Enclosure: NEMA 1
• Approval: UL 870, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• Type: Closure Plate
• Color: Gray
• IP Rating: IP30
• Knockouts: Yes
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: NEMA Type 1
• Type Number: Type 1
• Manufacturer: HOFFMAN
• Protection Rating: NEMA Type 1
• Knockouts Included: Yes
• Thickness (Metric): 1.9 mm
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Bulletin Number: F40PF
