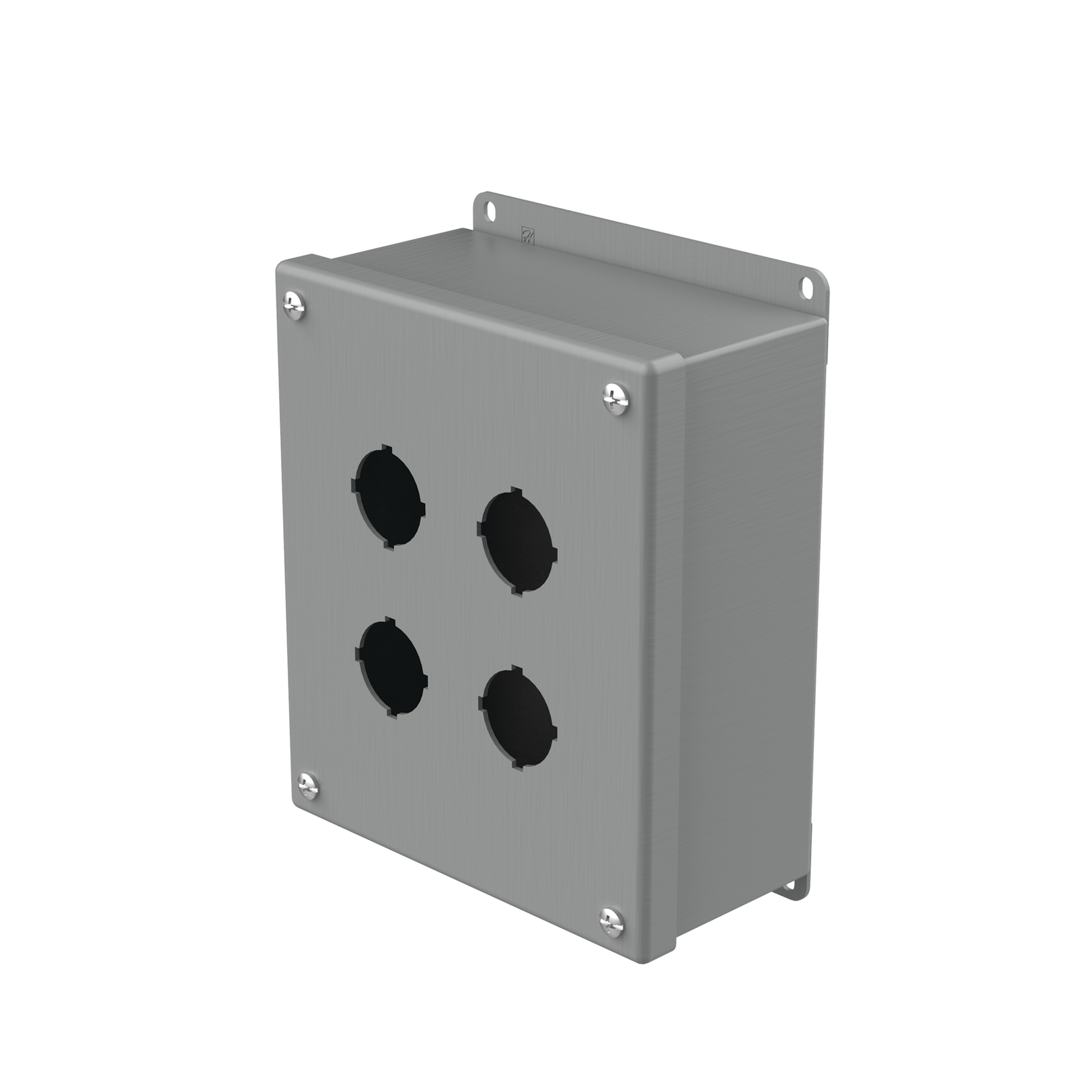

Hoffman E4SPB Pushbutton Square Enclosures Type 12, 4Pbx30.5mm

Product Description

The HOFFMAN E4SPB pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. Features continuously welded and ground smooth seams, captivated cover screws that thread into sealed wells, and a bonding provision on the cover. Also includes a grounding stud on the body.

• Oil-resistant gasket
• Factory stamped 4-way pushbutton holes
• External welded-on mounting brackets for easy installation

Product Highlights

Ideal for controls and drives, indoor, and installation housing applications. Meets CSA File Number 42186: Type 12, CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997, IEC 60529, IP65, NEMA/EEMAC Type 12, 13, UL 508A Listed; Type 12, 13; File No. E61997 standards.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E4SPB
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 58050
• Height: 7.25in
• Width: 6.25in
• Depth: 3in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 30.5 mm
• Hole Quantity: 4
• Mounting: 7.75 x 5.38in
• UPC: 783510580506
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: PB1
• Brand: nVent HOFFMAN
• Cable Entry: No Cable Entry
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• IP Rating: IP65
• Manufacturer Part Number: E4SPB
• Number of Holes: 4 Hole
• Numeric ID: 2510415
• Series: Type 4 Series
• Type: Pushbutton Array Enclosure
• Applications: Controls and Drives, Indoor, Installation Housing
• Gauge: 14 AWG
• Size: 4PB x 30.5mm
• Standard: CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Sub Brand: Hoffman
• Product UPC: 78351058050
• Used With: 30.5 mm Push Button
• Length: 6.500
• ItemPackageQuantity: 1
• ECCN: EAR99
• Item Length: 6.500
• Item Height: 3.000
