Hoffman E12PBSS Pushbutton Screw Cover Type 4X, 12Pbx30.5mm, Ss304

Product Description

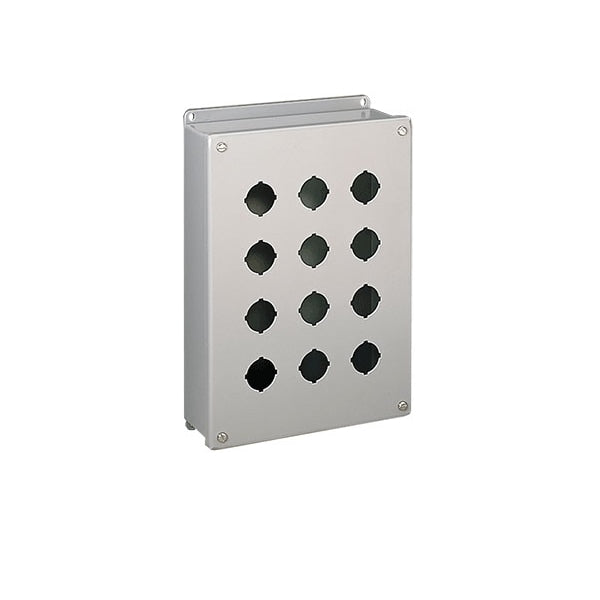

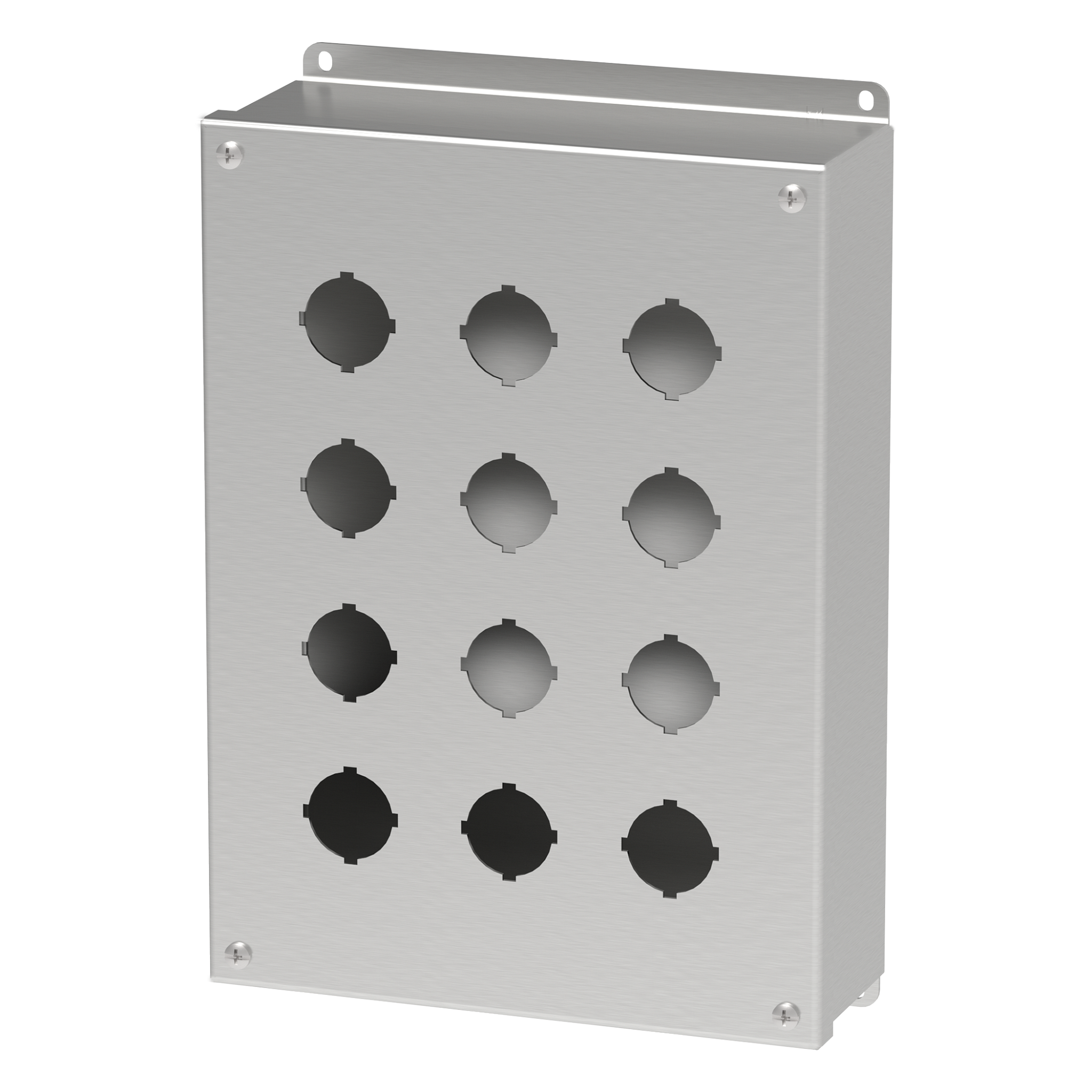

The HOFFMAN E12PBSS is a pushbutton screw cover enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. It features continuously welded and ground smooth seams.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

This enclosure is ideal for use in corrosive and hygienic environments, controls and drives, and other applications requiring a watertight and corrosion-resistant enclosure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E12PBSS
• Country of Origin: Mexico

Technical Specifications

• Article Number: 59670
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 12
• Material Flammability Rating: UL 508A
• Mounting: 12.25 x 7.62in
• UPC: 783510596705
• Bulletin Number: PB1S
• Applications: Controls and Drives, Corrosive Environments, Hygienic Environments
• Gauge: 14 AWG
• Mounting Type: External Feet
• Number of Holes: 12 Hole
• Size: 12PB x 30.5mm
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Type: 12 Hole, Watertight, Corrosion-Resistant
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351059670
• Used With: 30.5 mm Push Button
• DISK UNSPSC: 39121326
• IP/NEMA Rating: IP66, NEMA 4X
• Enclosure Material: 304 Stainless Steel
• Closure Method: Captive Screws
• Metallic / Non-Metallic: Metallic
• Cover Style: Solid
• Standards: UL 508A Listed; Type 4, 4X, 12; File Number E61997; cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997; NEMA/EEMAC Type 4X, 12, 13; IEC 60529, IP66
• IP Rating: IP66
• Mfr: Hoffman Enclosures, Inc.
• Design: Cover Included, Perforated
• Packaging: Bulk
• Container Type: Enclosure
• Cable Entry: No Cable Entry
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Series: Pentair Stainless Series
• Manufacturer Part Number: E12PBSS
