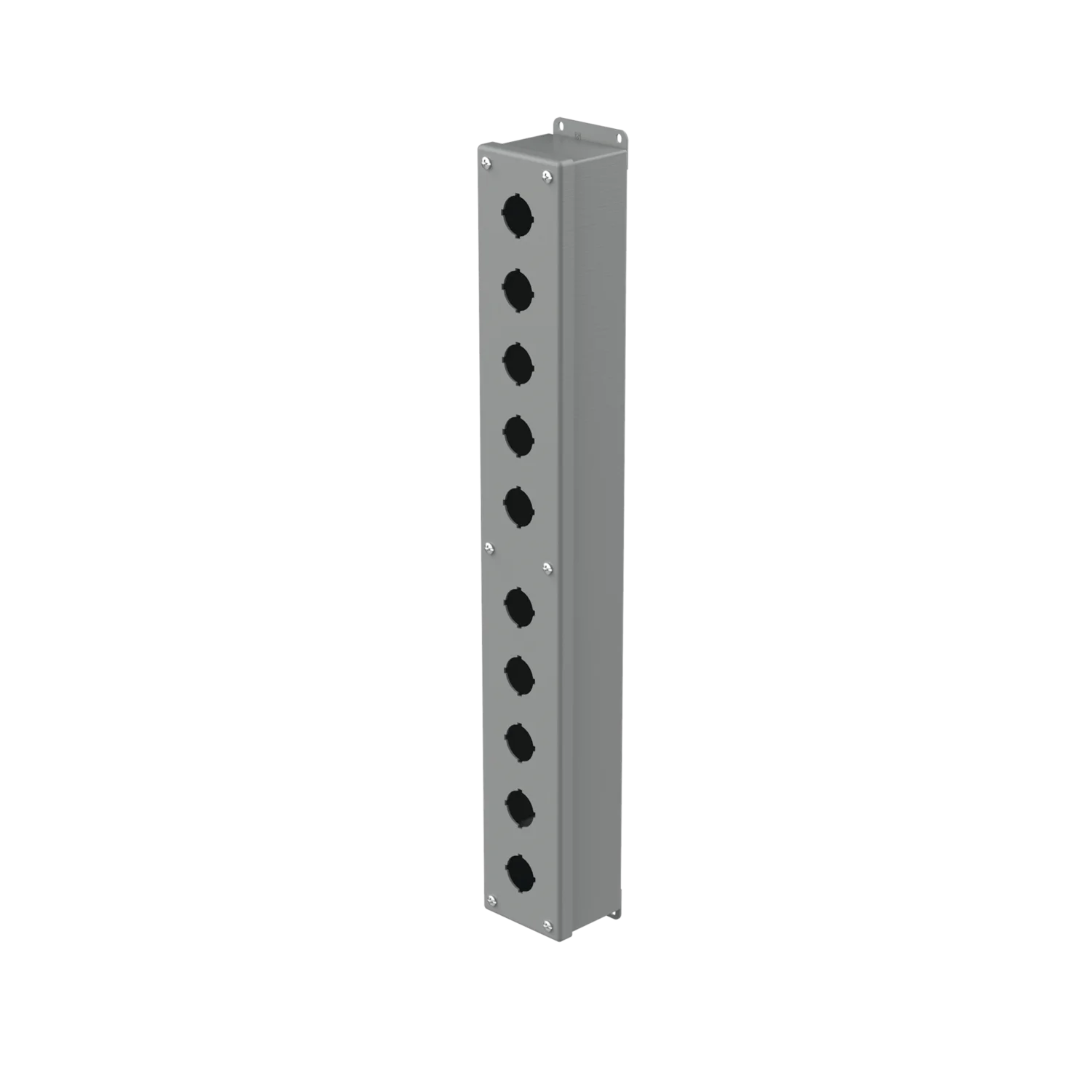

Hoffman E10PB Pushbutton Enclosures Type 12, 10Pb x 30.5mm, Steel

Product Description

The HOFFMAN E10PB pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. Features include continuously welded and ground smooth seams, captivated cover screws that thread into sealed wells, and a bonding provision on the cover. A grounding stud is located on the body.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

Designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. External welded-on mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E10PB
• Country of Origin: United States

Technical Specifications

• Article Number: 57860
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 10
• UPC: 783510578602
• Bulletin Number: PB1
• ItemPackageQuantity: 1
• MPN: E10PB
• Country of Origin: United States
• Type: Enclosure
• IP/NEMA Rating: IP65, NEMA 12
