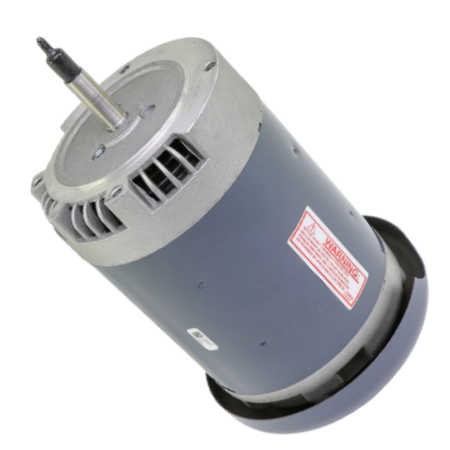

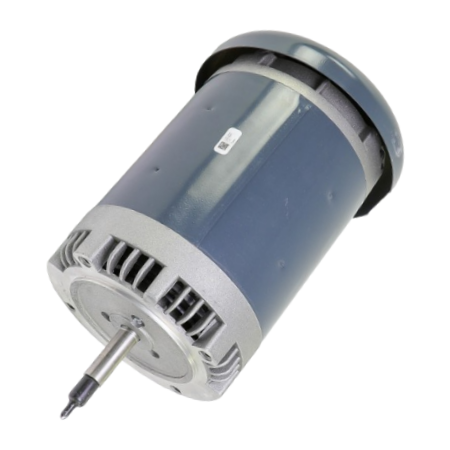

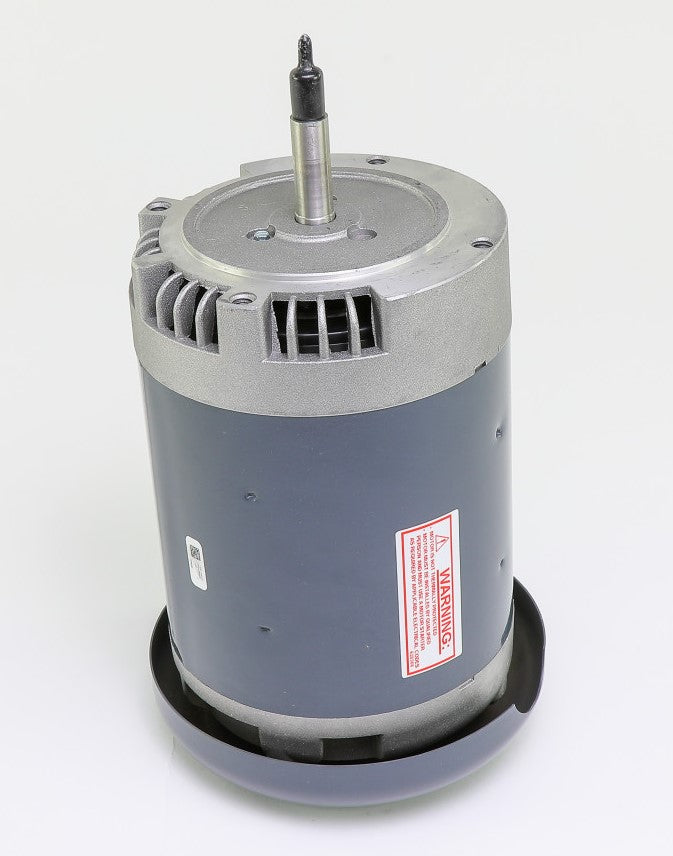

Hoffman DM2060 motor 1hp 230/460v 3ph 3500rpm ODP replacement DM0060

Product Description

The HOFFMAN DM2060 is a 1HP, 230/460V, 3-phase motor designed for high-performance operation in domestic, commercial, and industrial water systems. It operates at 3500 RPM with a 56CZ frame and features an open drip-proof (ODP) enclosure. This motor is CSA-certified for reliability and safety, built with double-sealed ball bearings and a 303 stainless steel shaft. It supports 208-230/460V at 60 Hz and is a direct replacement for part number DM0060.

• 1 Horsepower, 230/460V, 3-phase operation
• 3500 RPM with Open Drip Proof (ODP) enclosure
• CSA-certified for safety and reliability

Product Highlights

High-performance motor for water systems, featuring ODP enclosure and CSA certification.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: DM2060
• Country of Origin: United States

Technical Specifications

• Brand: HOFFMAN
• MPN: DM2060
• Horsepower: 1HP
• Voltage: 230/460V
• Phase: 3ph
• RPM: 3500rpm
• Enclosure Type: ODP
• Country of Origin: United States
• Certifications: CSA-certified
• Shaft Material: 303 Stainless Steel
• Frequency: 50/60 Hz
• Frame Size: 56CZ
• Ambient Temperature: 40°C
• Pump Part Type: Motor
• Replacement MPN: DM0060
• For Use With: C-35™ Pump
