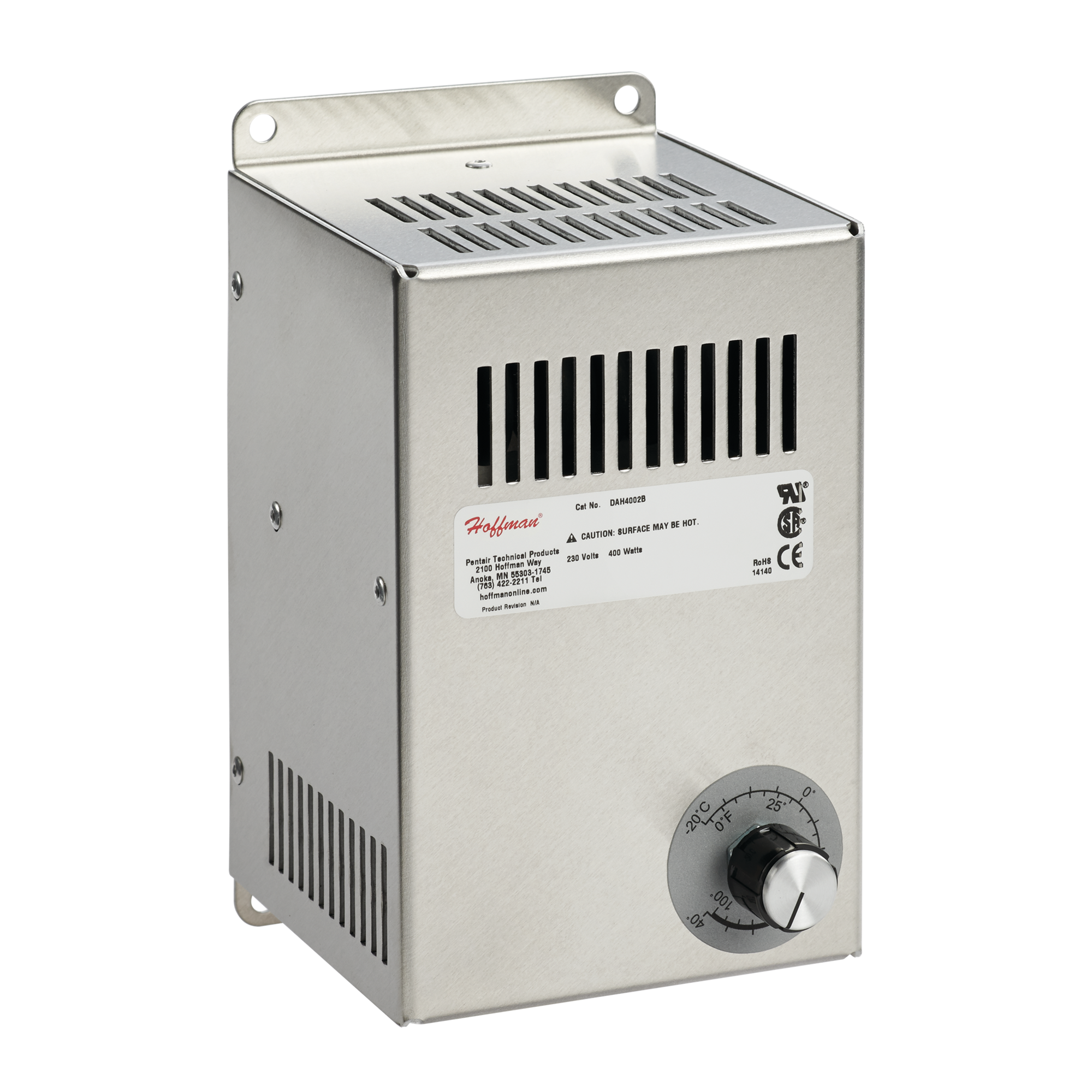

Hoffman DAH4002B Electric Heater 400W

Product Description

The HOFFMAN DAH4002B electric heater protects equipment from low temperatures, condensation, and corrosion. This thermostatically controlled, fan-driven heater maintains a stable enclosure temperature. The fan draws cool air from the bottom, passes it across the thermostat and heating element, and releases heated air through the top of the unit. It is made of aluminum.

• Thermostat range adjustable from 0 F to 100 F (-18 C to 38 C)
• Includes four 10-32 x self-tapping screws
• Features a ball bearing fan

Product Highlights

The Hoffman DAH4002B electric heater maintains steady temperatures within enclosures to keep electrical components functioning properly in the cold.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: DAH4002B
• Country of Origin: US

Technical Specifications

• IGCC: 5887
• Type: Electric Heaters
• Color: Unpainted
• Finish: Brushed
• Vendor: 351000
• Weight: 2.3
• Material: Aluminum
• Voltage AC: 200-250 V
• Application: Power Distribution; Controls and Drives
• Max Current: 1.86 A
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Depth (Metric): 111 mm
• Voltage Rating: 200 - 250 VAC
• Width (Metric): 108 mm
• Amperage Rating: 1.86 A
• Height (Metric): 191 mm
• Nominal Voltage: 220 V
• Weight (Metric): 1 kg
• Depth (Imperial): 4.38 in
• Frequency Rating: 50/60 Hz
• Housing Material: Aluminum
• WES Product code: 2650309802
• Width (Imperial): 4.25 in
• Height (Imperial): 7.5 in
• Weight (Imperial): 2.3 lb
• Thickness (Metric): 1.5 mm
• Thickness (Imperial): 0.06 in
• Nominal Capacity Watts: 400 W
• Article Number: 70580
• Heating Capacity: 400W
• UPC: 783510705800
• EAN: 8713574253063
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Brand Name: Hoffman
• Country of Origin: US
• Standard: UL 508A Component Recognized, File No. E61997, CE
• Sub_Brand: Hoffman
• ECCN: EAR99
• UNSPSC: 40101809
• Heater Type: Fan Forced
• Includes: (4) Self-Tapping Screws
• Includes Thermostat: Thermostat Included
• Mounting Holes On Center Spacing: 7 in H x 3.50 in W
• Operating Voltage: 230V AC
• Overall Height: 7-1/2 in
• Overall Length: 7-1/2 in
• Overall Width: 4-3/10 in
• Phase: Single
• Thermostat Setpoint - Maximum: 100 °F
• Thermostat Setpoint - Minimum: 0 °F
• Wattage: 400 W
