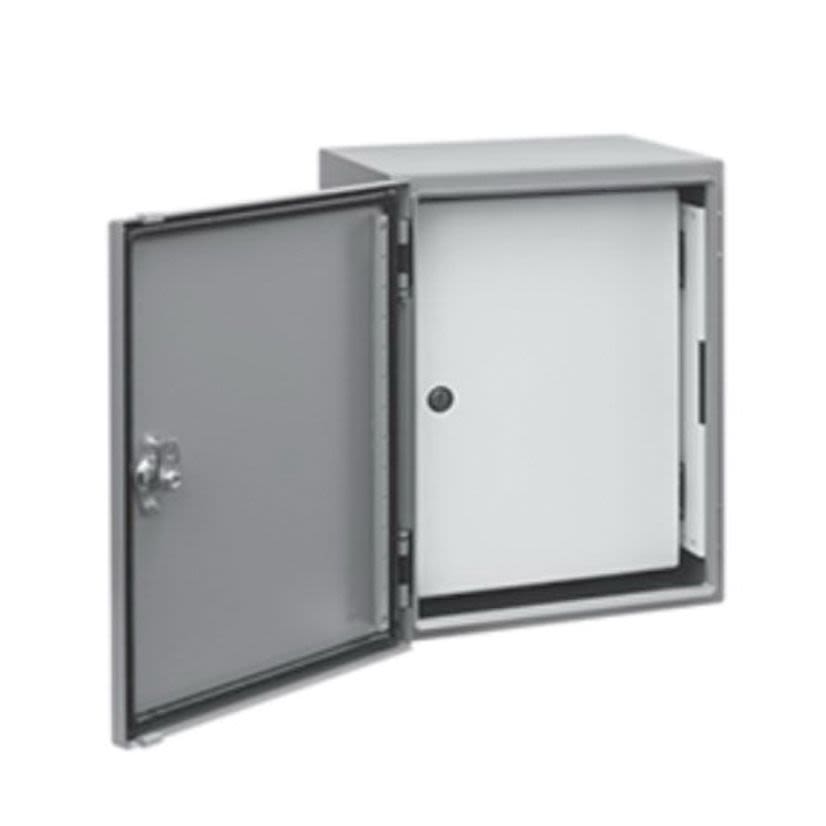

Hoffman CSP2424 Concept Swing-Out Panel Fits 24.00x24.00

Product Description

The HOFFMAN CSP2424 Concept Swing-Out Panel provides access to mounted internal equipment. For CSPB panels, the maximum swing is 94 degrees, and for CSP panels, the maximum panel swing is 106 degrees. Kits include panel, brackets, and hardware to mount to the front flange.

• CSPB panels, maximum swing is 94 degrees
• CSP panels, maximum panel swing is 106 degrees
• Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors

Product Highlights

The CSP2424 swing-out panel allows easy access to enclosure components. It fits 24.00x24.00 sized enclosures.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSP2424
• Country of Origin: United States

Technical Specifications

• Article Number: 12380
• Height: 21.78in
• Width: 21.84in
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 12ga
• Fits Enclosure Size: 24.00 x 24.00in
• UPC: 783510123802
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: CWY
• Brand: nVent Hoffman
• Sub Brand: Concept
• Used With: 24 x 24 in Enclosures
• Size: fits 24.00x24.00 in
• Type: 106
• BABA Compliant: Yes
• Country of Origin: United States
• Series: CWY
• Suitable For Use With: 24 x 24 in CONCEPT Enclosures
• Type / Style: CONCEPT? Swing-Out Panels
