NVENT Hoffman CSD483620 Concept Single-Door Enclosure 48.00x36.00x20.00
NVENT Hoffman CSD483620 Concept Single-Door Enclosure 48.00x36.00x20.00

Hoffman CSD483620 Concept Single-Door Enclosure 48.00x36.00x20.00

Brand: NVENT
SKU: CSD483620
Availability: Out Of Stock
$1,911.26
$1,911.26
LTL Delivery

This product weighs 159 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

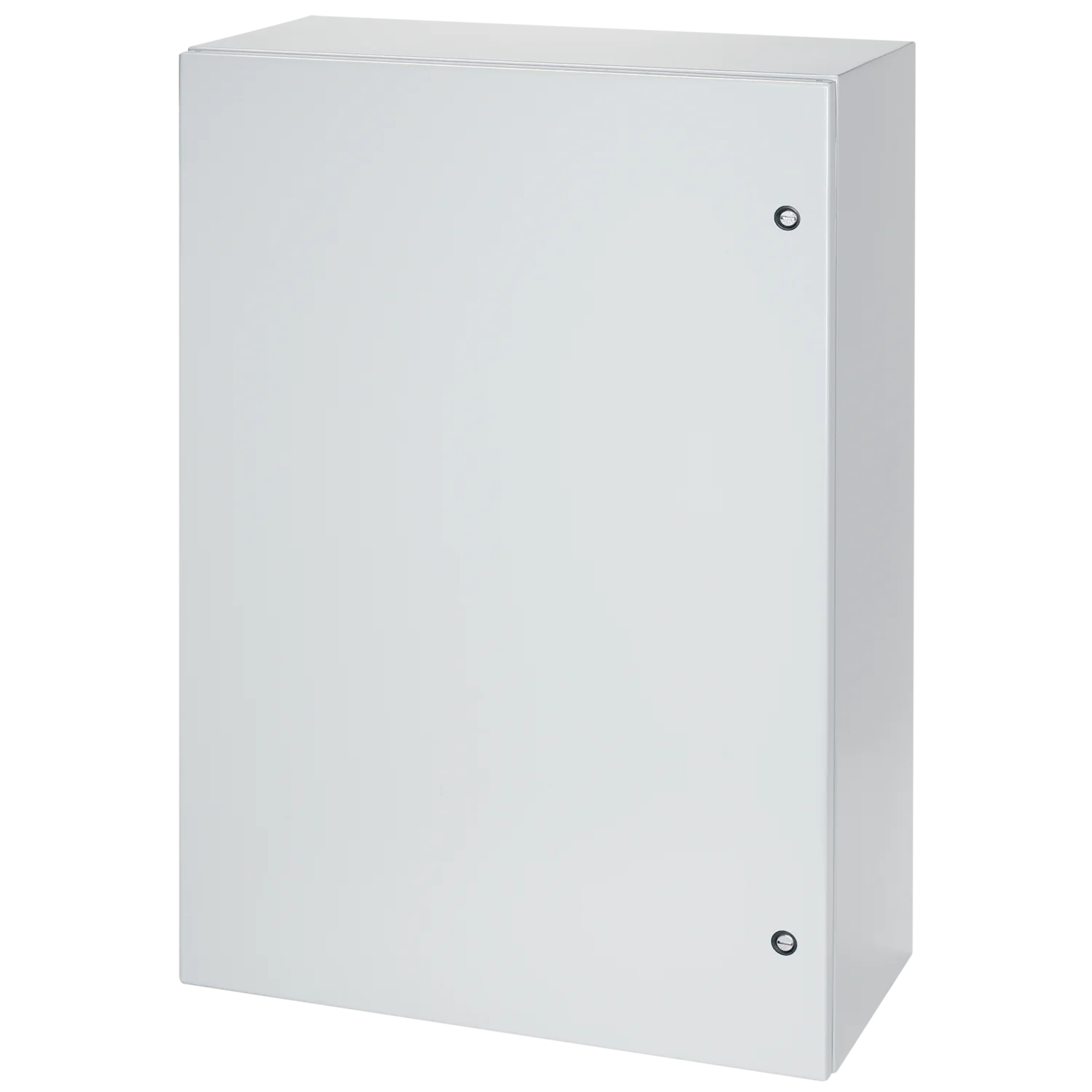

The HOFFMAN CSD483620 Concept Single-Door Enclosure measures 48.00x36.00x20.00 inches. This steel enclosure features continuously welded seams, corner-formed doors, and easily removable hinge pins. Designed for controls and drives, it offers a durable, powder-coated finish and a seamless foam-in-place gasket.

  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

Durable steel enclosure with a powder-coated finish, ideal for machine control applications. Features a removable door with hidden hinges and a seamless foam-in-place gasket.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: CSD483620
  • Country of Origin: United States of America (the)
Technical Specifications
IGCC
4476
Size
48.00x36.00x20.00 in
Type
Mild Steel Wall Mounted Industrial Enclosures
Depth
20 in
Width
36 in
Finish
Powder Coated
Height
48 in
Material
Steel
IP Rating
IP66
Color Code
ANSI 61
Application
Controls and Drives
Latch Style
3-point
NEMA Rating
12 Indoor; dust-resistant
Type Number
Type 4
Manufacturer
HOFFMAN
Concept Panel
CP4836
Latch Quantity
1
Product Family
Concept
Mounting (Metric)
1181 x 876 mm
Protection Rating
NEMA Type 12
Mounting (Imperial)
46.50 x 34.50 in
Panel Size (Metric)
1174 x 869 mm
Panel Size (Imperial)
46.20 x 34.20 in
Body Thickness (Metric)
1.9 mm
Conductive Concept Panel
CP4836G
Body Thickness (Imperial)
14 ga
Door Thickness (Imperial)
14 ga
Article Number
29436
UPC
783510294366
Brand
nVent HOFFMAN
Cover Type
Hinged
Lock
Quarter Turn Latch
Series
CW1
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Composition
Painted Steel
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
GTIN
00783510294366
UNSPSC
39121324
Country of Origin
United States of America (the)
BABA Compliant
No
Approval
UL 508A, CUL, CSA C22.2
Material Specification
14 Gauge (Door/Body)
