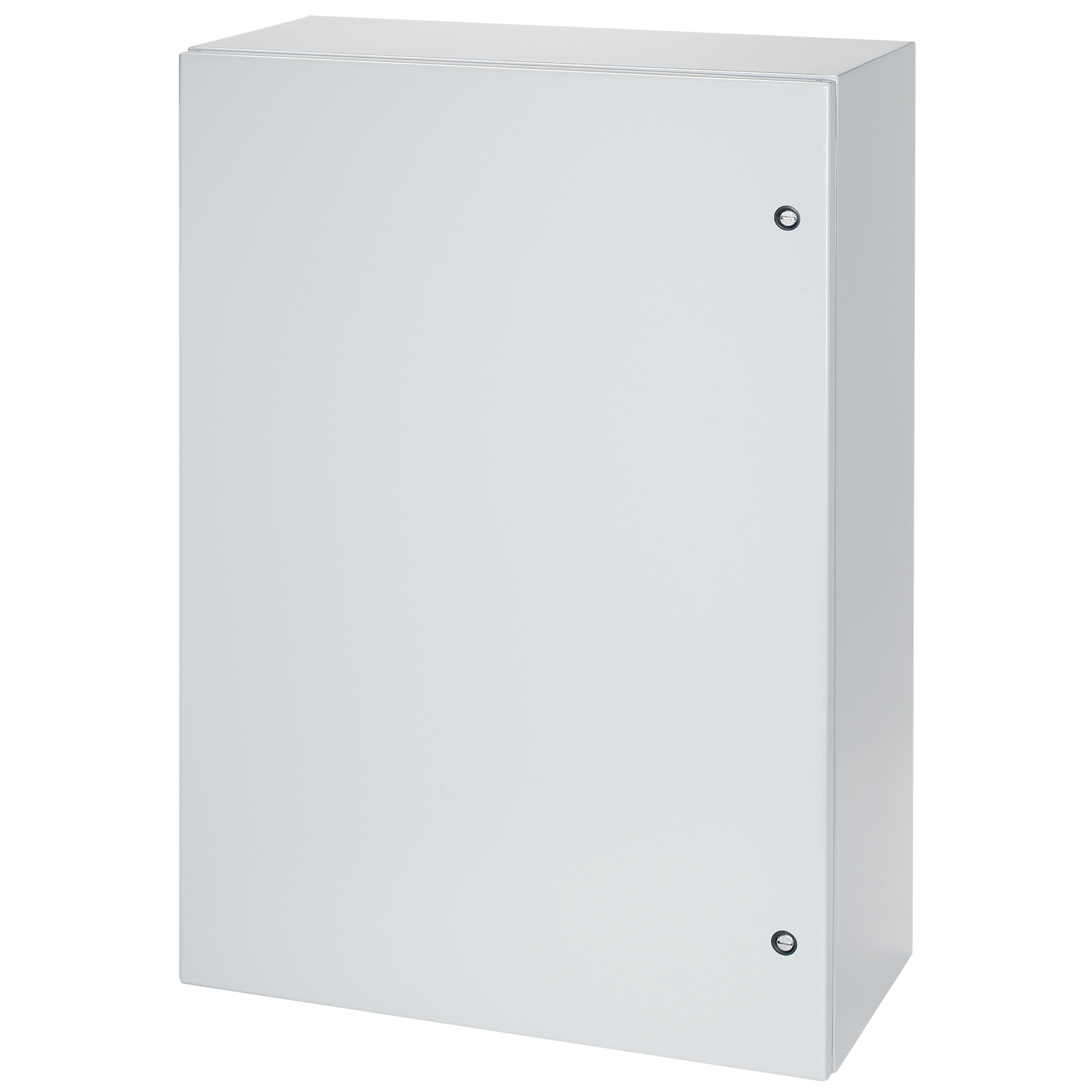

Hoffman CSD482412 Concept Wall-Mount Enclosure 48.00X24.00X12.00

Product Description

The HOFFMAN CSD482412 Concept™ Wall-Mount Enclosure is ideal for machine control applications. It features streamlined styling, flush quarter-turn latches, and a durable finish. Constructed with continuously welded and ground smooth seams, corner-formed doors, and simple easy-to-remove hinge pins. The enclosure includes panel mounting studs for optional CONCEPT panels and accessories.

• Constructed from 14 gauge steel
• Seams are continuously welded and ground smooth
• Features a seamless foam-in-place gasket

Product Highlights

The HOFFMAN CSD482412 is a robust and versatile wall-mount enclosure designed for various industrial applications, ensuring protection and easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD482412

Technical Specifications

• Type: 4/12
• Brand: Hoffman
• Color: Gray
• Material: Steel
• Description: Wall Mount Enclosure
• Concept Panel: CP4824
• Latches Style: 3-Point
• A x B x C: 48.00 x 24.00 x 12.00 in
• Body Gauge: 14 ga
• Door Gauge: 14 ga
• Conductive Panel: CP4824G
• J Dimension: 24 in
• Number of Latches: 1
• Mounting G x H: 46.50 x 22.50 in
• Manufacturers Part Number: CSD482412
• Size: 48.00x24.00x12.00 in
• Depth: 12 in
• Width: 24 in
• Finish: Powder Coated
• Height: 48 in
• Weight: 98 lb
• IP Rating: IP66
• Color Code: ANSI 61
• Application: Controls and Drives
• NEMA Rating: NEMA 4/12/IP66
• Type Number: Type 4
• Product Family: Concept
• Mounting (Metric): 1181 x 572 mm
• Protection Rating: NEMA Type 12
• Panel Size (Metric): 1173 x 564 mm
• Modification Services: Yes
• Panel Size (Imperial): 46.20 x 22.20 in
• Door Thickness (Metric): 1.9 mm
• Body Thickness (Imperial): 14 ga
• Enclosure Width: 24 in
• Enclosure Height: 48 in
• Enclosure Depth: 12 in
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• Cover Type: Concealed Hinged
• Length: 48 in
• Lock: 3-Point Latch
• Mounting Type: Wall
• Series: CW1
• Approval: UL 508A, CUL, CSA C22.2
• Material Specification: 14 Gauge (Door/Body)
• UNSPSC Code: 24102001
