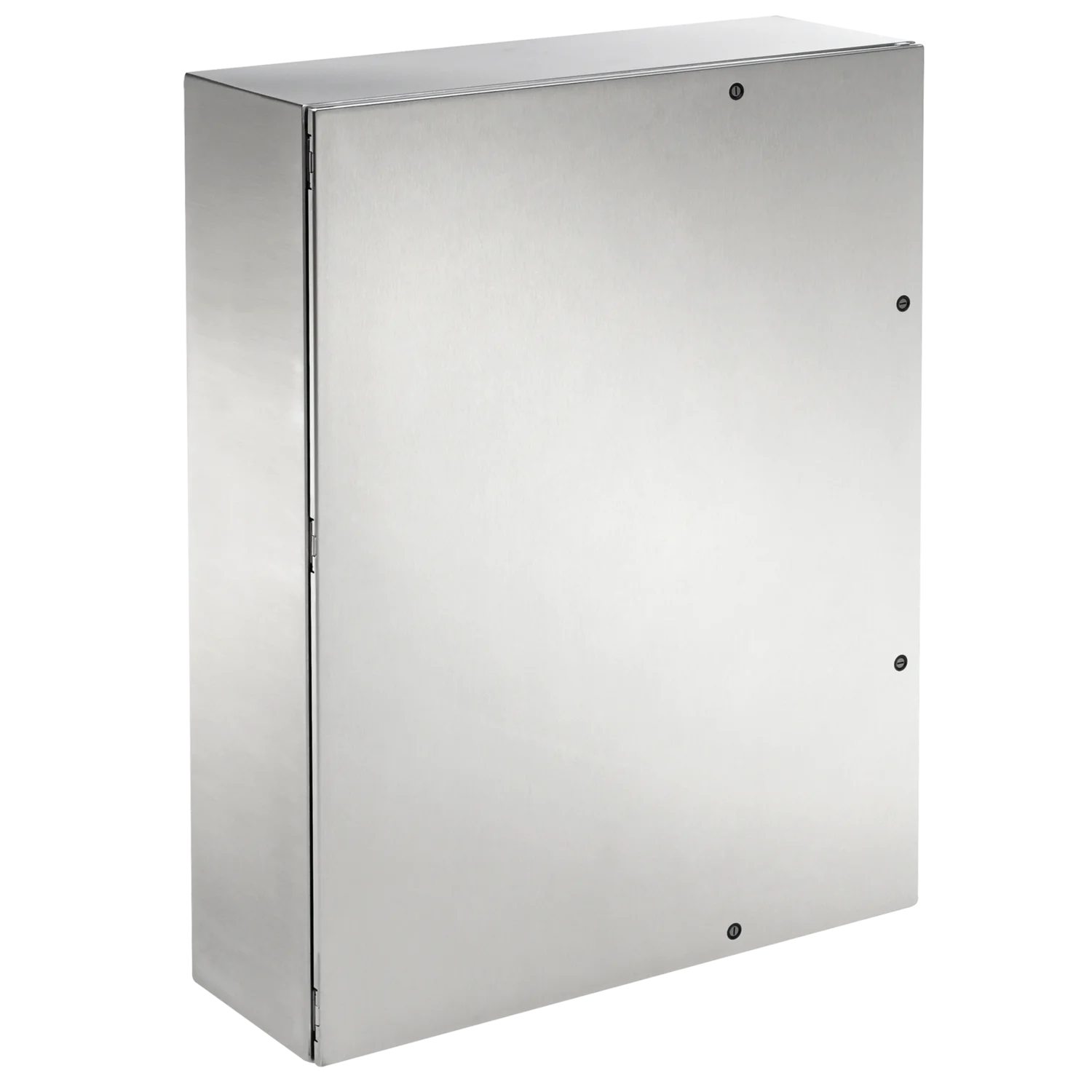

Hoffman CSD423612SSR Concept Wallmount Multi 1/4-Turn Latch 4X, 42x36x12

Product Description

The HOFFMAN CSD423612SSR Concept enclosure is designed for indoor or outdoor applications needing corrosion protection from chemicals and water. These enclosures house larger controls and feature streamlined styling with an attractive stroked finish, flush quarter-turn latches, and an integral door ramp that ensures a secure closure.

• Seams continuously welded and ground smooth.
• Minimum-width body flange provides maximum body opening.
• Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door.

Product Highlights

Ideal for housing larger controls, this wall-mount enclosure provides robust protection in corrosive environments with its stainless steel construction and secure latching system.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD423612SSR
• Country of Origin: USA

Technical Specifications

• Article Number: 14834
• Height: 42 in. (1067mm)
• Width: 36 in. (914mm)
• Depth: 12 in. (305mm)
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 1.98 mm
• Door Thickness: 14ga
• Mounting: Internal Holes
• Latch Quantity: 4
• Latch Type: Quarter-Turn
• UPC: 783510148348
• Bulletin Number: CWS
• Cover Type: Solid
• Lock: Quarter Turn Latch
• Mounting Type: Wall
• Panel Size: 40.2 x 34.2 in
• Series: CWS
• Type: 1-Door
• NEMA Rating: NEMA 4X
• Applications: For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water
• Body Gauge: 14
• Door Gauge: 14
• Gauge: 14
• IP Rating: 66
• Number of Latches: 4
• Size: 42.00x36.00x12.00 in
• Standard: 12,13,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,File Number E61997,IEC 60529,IP66,Mee,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Style: Quarter-turn
• Cover Latching: Latch, 4x1/4 Turn Slot
• Optional Panel: CP4236
• NEMA: 4X
• Material Specification: Type 304
• Cover Mounting: Hinge
• IP/NEMA Rating: IP66, NEMA 4X, NEMA 3
