Hoffman CSD36368SSR Concept Wallmount Multi 1/4-Turn Latch 4X, 36x36x8

Brand: NVENT
SKU: CSD36368SSR
Availability: In Stock

Ships via freight in 1-3 business days
$4,219.26
$4,219.26
LTL Delivery

This product weighs 89 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

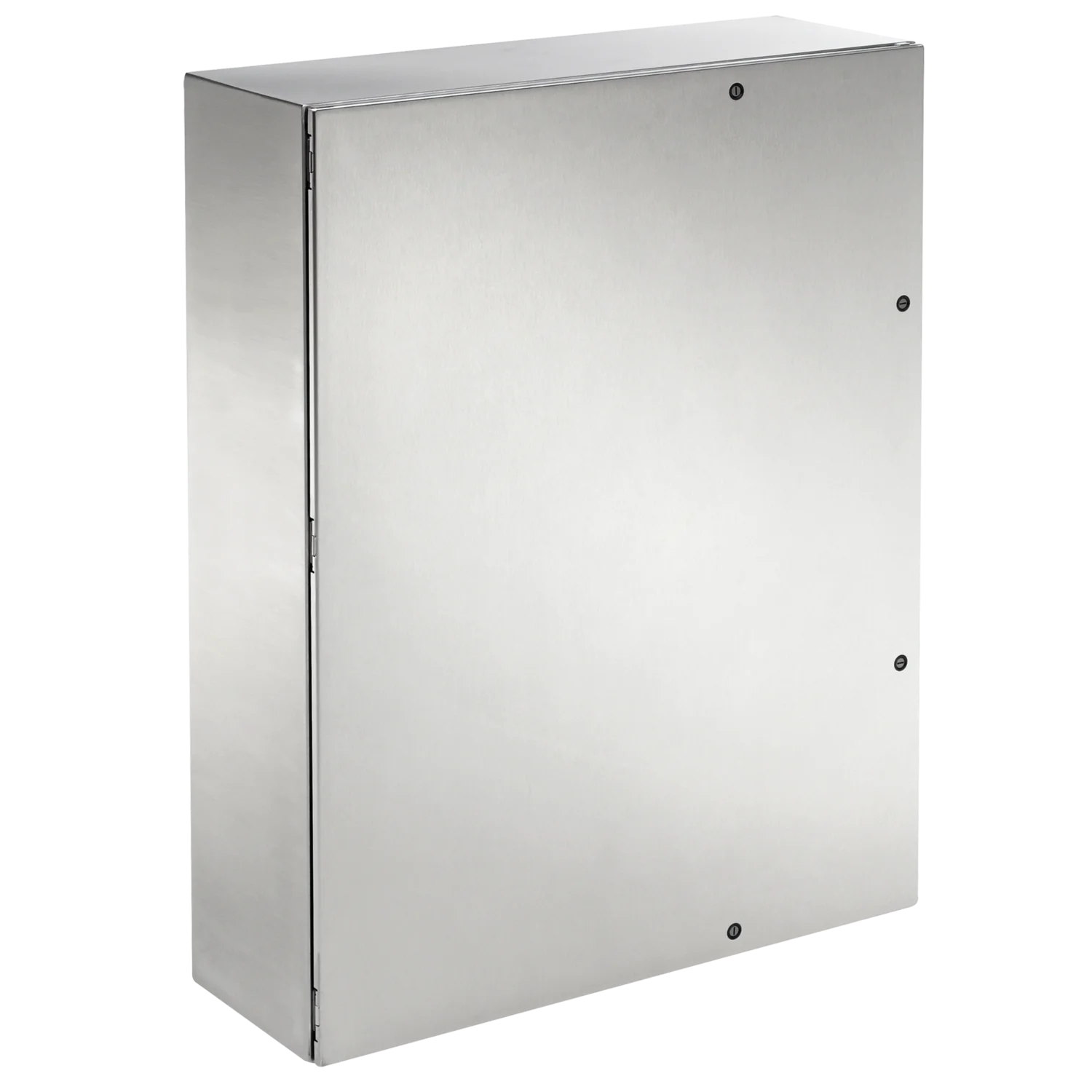

The HOFFMAN CSD36368SSR Concept enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. It houses larger controls and features streamlined styling with an attractive stroked finish and flush quarter-turn latches. An integral door ramp ensures the door gasket sealing surface aligns with the enclosure body for secure closure.

  • Seams continuously welded and ground smooth
  • Minimum-width body flange provides maximum body opening
  • Corner formed doors
  • External formed 90-degree body flange
  • Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door

Product Highlights

This wall-mount enclosure is ideal for protecting larger controls in corrosive environments, featuring a robust design and multiple mounting options.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: CSD36368SSR
  • Country of Origin: United States
Technical Specifications
Article Number
34585
Height
36 in
Width
36 in
Depth
8 in
Material
Stainless Steel 304
Finish
Brushed #4
Body Thickness
14ga
Door Thickness
14ga / 1.98 mm
Mounting
34.50 x 34.50 in / 876 x 876 mm
Latch Quantity
4
Latch Type
Quarter-Turn
UPC
783510345853
Standard Packaging Quantity
1
Packing Quantity
1
UNSPSC
39121324
Approval
UL 508A, CUL, CSA C22.2
Back Panel
CP3636, CP3636G
Nema Rating
NEMA 3R/4/4X/12/13, IP66
Service Type
Indoor/Outdoor
Material Specification
14 Gauge
Type
Single Lock, Single Door
Cover Type
Stainless Steel Hidden Hinged, Hinge Pin, Seamless Foam-In-Place Gasketed, (4) 1/4 Turn Latch
Gauge
Body: 14 ga, Door: 14 ga
Size
36 in x 36 in x 8 in
Panel Size
34.20 x 34.20 in / 869 x 869 mm
Item
CONCEPT with Additional Quarter-Turn Lat
For Use With
For Use With Mfr. Model Number CP3636G, CP3636
Application
Indoor
Features
Dust-Resistant
Series
Concept
Standards
UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997; cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number E61997; Mounting brackets required to meet UL/CSA external mounting requirements.; NEMA/EEMAC Type 3R, 4, 4X, 12, 13; IEC 60529, IP66; Meets NEMA Type 3RX requirements
Conductive Panel
CP3636G
Protection Rating
NEMA Type 12; NEMA Type 4X; NEMA Type 13; NEMA Type 3R; IP66
Panel
CP3636
GTiN
00783510345853
Product UPC
78351034585
