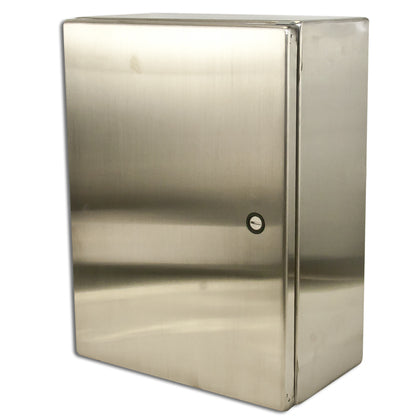

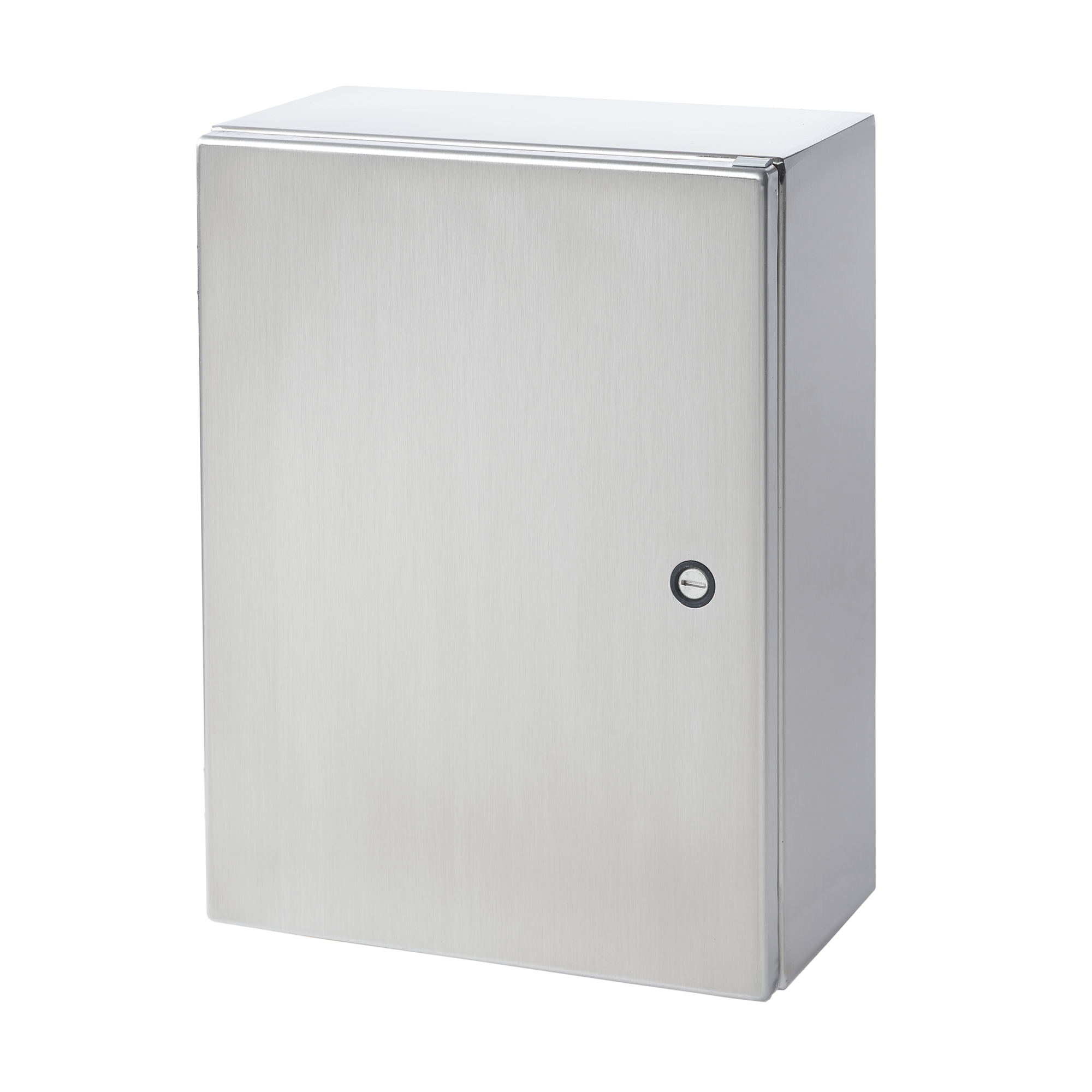

Hoffman CSD363010SS Concept Wall Mt Encl 36.00x30.00x10.00in

Product Description

The Hoffman CSD363010SS, CONCEPT™ Wall Mount Enclosure, is designed to house electrical components and controls in corrosive or outdoor environments. Constructed from 14 gauge Type 304 stainless steel, it features continuously welded and ground smooth seams. The enclosure includes a Type 4-rated gasket and a Type 316L stainless steel padlocking POWERGLIDE Handle with 3-point latching.

• Constructed from 14 gauge Type 304 stainless steel bodies and doors
• Features seams that are continuously welded and ground smooth
• Includes a Type 4-rated gasket

Product Highlights

This Hoffman CONCEPT™ enclosure provides robust protection for electrical components in harsh environments, ensuring secure and reliable operation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD363010SS
• Country of Origin: USA

Technical Specifications

• Brand: Hoffman
• Material: SS Type 304
• Description: Wall Mount Enclosure
• Concept Panel: CP3630
• Latches Style: Quarter-turn
• A x B x C: 36.00 x 30.00 x 10.00 in
• Body Gauge: 16 ga
• Door Gauge: 14 ga
• Conductive Panel: CP3630G
• Number of Latches: 2
• Mounting G x H: 34.50 x 28.50 in
• Manufacturers Part Number: CSD363010SS
• Type: 4X
• Height: 36in
• Width: 30in
• Depth: 10in
• Finish: Brushed #4
• Body Thickness: 16ga
• Door Thickness: 14ga
• Mounting: 34.50 x 28.50in
• Latch Type: Quarter-Turn
• UPC: 783510128739
• Cover Type: Hinged
• Lock: Quarter Turn Latch
• Mounting Type: Wall
• NEMA Rating: 4X Watertight, corrosion-resistant
• Series: CWS
• IP/NEMA Rating: IP66, NEMA 4X, NEMA 3
• IP Rating: 66
• Size: 36.00x30.00x10.00 in
• Standard: 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Style: Quarter-turn
• Sub Brand: Concept
• 12-Digit UPC: 783510128739
• Applications: For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water
• Body Thickness [Metric]: 1.59 mm
• Door Thickness [Metric]: 1.98 mm
• Application: Controls and Drives; Corrosive Environments
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: CSD363010SS
• EU RoHS Indicator: RCP
• Height [Metric]: 29.2100 cm
• Interchangeable: No
• Item Group: CWS
• Length: 31.2500 in
• Length [Metric]: 104.1400 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• Panel Type: CP3630
• Product Family: Concept
• Standards: UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, CSA File No. 42186: Type 4, 4X, 12, VDE IP66, IEC 60529
• Stock Status: NORMALLY STOCKED
• Stainless Steel Wall Mounted Industrial Enclosures: Stainless Steel Wall Mounted Industrial Enclosures
• UNSPSC: 39121324
• UPC 11: 78351012873
• UPC 12: 783510128739
• Width [Metric]: 79.3750 cm
• Enclosure: 3R
• GTiN: 00783510128739
