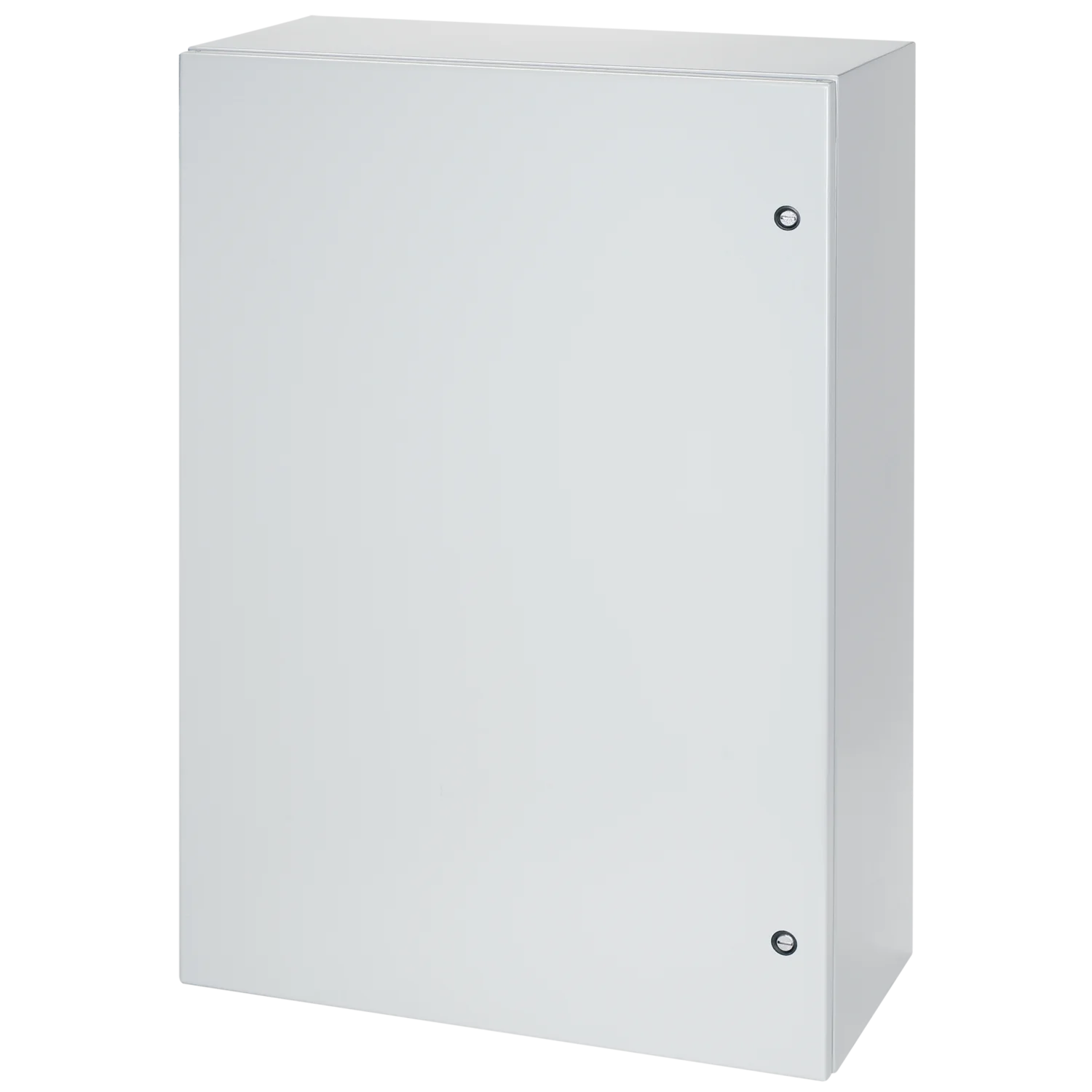

Hoffman CSD362412 Csd362412 Wlmnt Encl 36.00x24.00x12.00 in

Product Description

The HOFFMAN CSD362412 Csd362412 Wlmnt Encl is a Concept Single-Door Enclosure with dimensions 36.00x24.00x12.00 inches. It features streamlined styling, flush quarter-turn latches, and a durable finish, making it ideal for machine control applications. The enclosure is constructed from mild steel with a powder-coated gray finish.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

Durable mild steel enclosure with powder-coated finish, ideal for machine control applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD362412
• Country of Origin: USA

Technical Specifications

• Size: 36.00x24.00x12.00 in
• Type: Single Lock, Single Door
• Color: Gray
• Depth: 12 in
• Width: 24 in
• Finish: Powder Coated
• Height: 36 in
• Material: Mild Steel
• IP Rating: IP66
• Color Code: ANSI 61
• Application: Controls and Drives
• Latch Style: Quarter-turn
• NEMA Rating: 12 Indoor; dust-resistant
• Type Number: Type 4
• Manufacturer: HOFFMAN
• Concept Panel: CP3624
• Latch Quantity: 2
• Product Family: Concept
• Mounting (Metric): 876 x 572 mm
• Protection Rating: NEMA Type 12
• Mounting (Imperial): 34.50 x 22.50 in
• Panel Size (Metric): 869 x 564 mm
• Modification Services: Yes
• Panel Size (Imperial): 34.20 x 22.20 in
• Body Thickness (Metric): 1.52 mm
• Conductive Concept Panel: CP3624G
• Body Thickness (Imperial): 16 ga
• Door Thickness (Imperial): 14 ga
• UPC: 783510775902
• Body Gauge: 16
• Cover Type: 3-Point Latch
• Door Gauge: 14
• Gauge: 14 and 16
• Latches Style: Quarter-turn
• Mounting Type: Wall
• Number of Latches: 2
• Standard: CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
• Brand: nVent Hoffman
• Sub Brand: Concept
• Color Coding: ANSI 61
• Enclosure Environment Rating: Outdoor-Indoor
• Enclosure Hinge Type: Standard Hinge
• Enclosure Latch Type: Quarter Turn
• Enclosure Composition: Painted Steel
• Enclosure NEMA Rating: NEMA Type 12
• Line: CONCEPT
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Enclosure Number of Doors: 1 Door
• Component: Steel Enclosure
• IP/NEMA Rating: IP66, NEMA 12, NEMA 4
• Mounting: Wall
• Special Program: Hoffman On Demand
• Applications: For Machine Control Applications
• GTiN: 00783510775902
• Product UPC: 78351077590
• Depth (mm): 305 mm
• Height (mm): 914 mm
• Length: 40.7 Inch
• Width (mm): 610 mm
