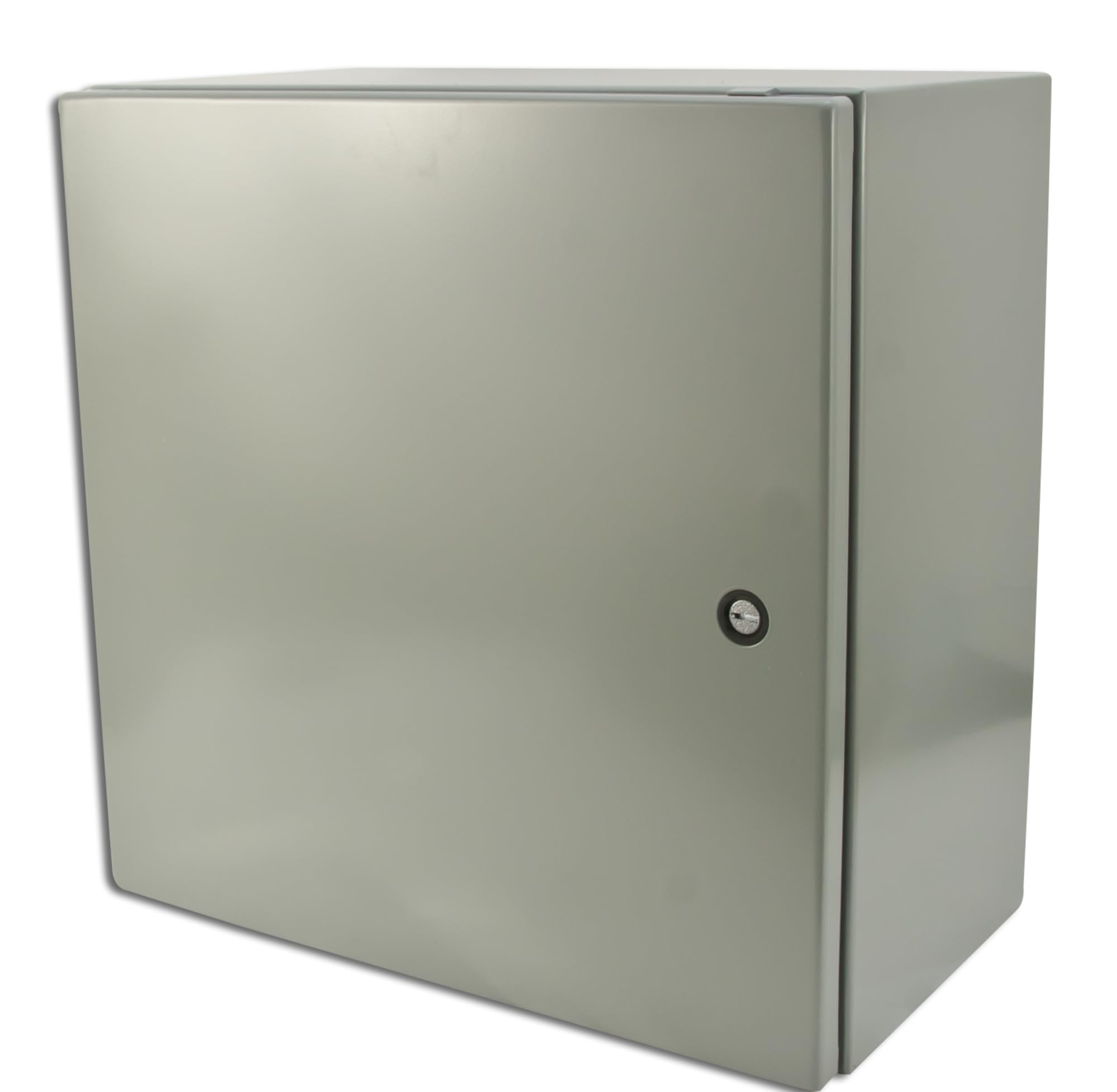

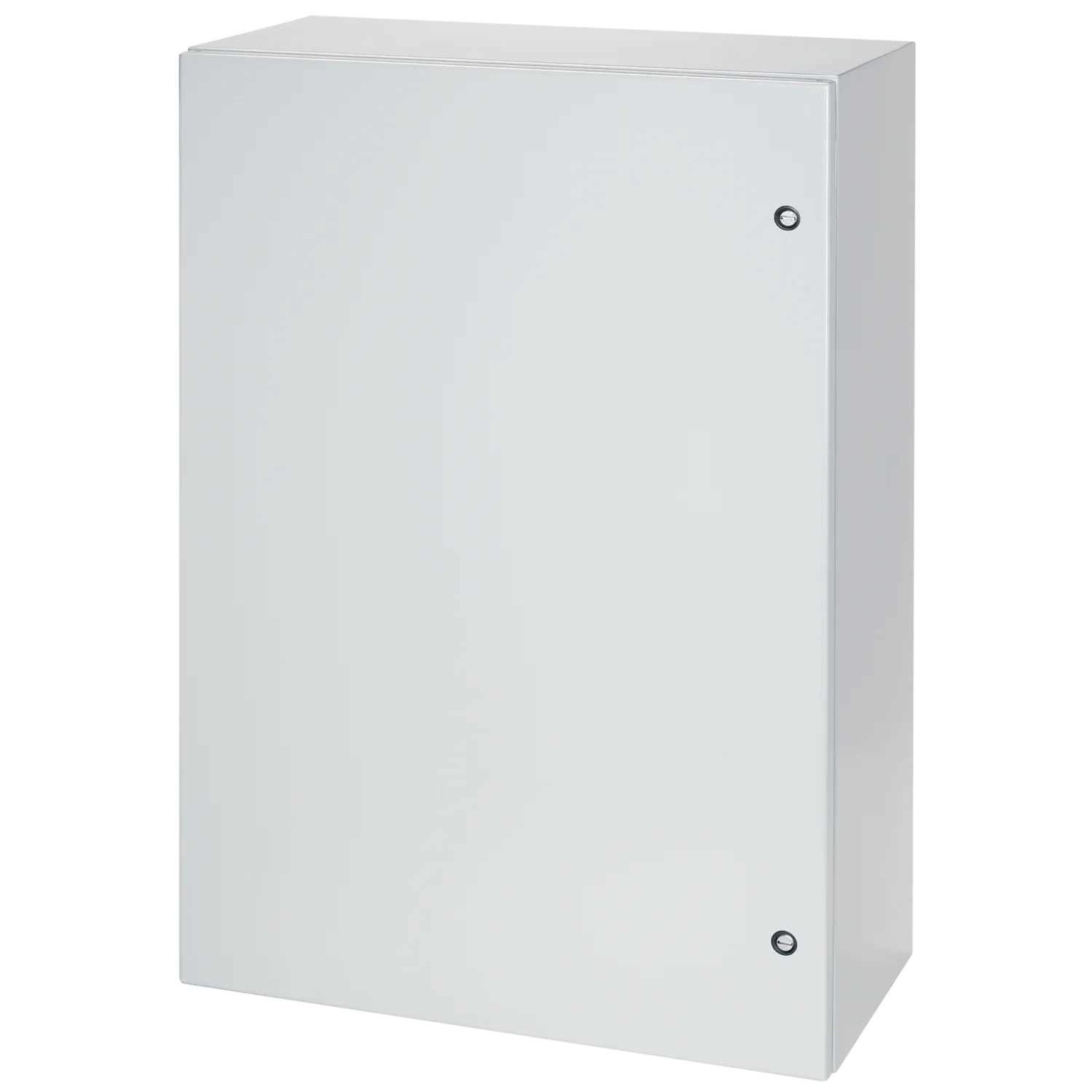

Hoffman CSD362410 Concept Wall-Mount Enclosure 36.00x24.00x10.00

Product Description

The HOFFMAN CSD362410 Concept Wall-Mount Enclosure is ideal for machine control applications. It features streamlined styling, flush quarter-turn latches, and a durable finish. Constructed from 14, 16, or 18 gauge steel with continuously welded and ground smooth seams. Designed with corner-formed doors and simple, easy-to-remove hinge pins.

• Seams continuously welded and ground smooth
• Panel mounting studs fit optional CONCEPT panels and other accessories
• Quarter-turn slotted latch(es)

Product Highlights

This wall-mount enclosure provides a safe housing for electrical and pneumatic components with a clean, aesthetic appearance.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD362410

Technical Specifications

• Type: Junction Box
• Brand: Hoffman
• Material: Steel
• Description: Wall Mount Enclosure
• Concept Panel: CP3624
• Latches Style: Quarter-Turn
• A x B x C: 36.00 x 24.00 x 10.00 in
• Body Gauge: 16 ga
• Door Gauge: 14 ga
• Conductive Panel: CP3624G
• J Dimension: 5 in
• Number of Latches: 2
• Mounting G x H: 34.50 x 22.50 in
• Manufacturers Part Number: CSD362410
• NEMA Type: 4/12
• Bulletin: CW1 (CONCEPT Wall-Mount Enclosure)
• Height: 36in
• Width: 24in
• Depth: 10in
• Finish: Powder Coated
• Body Thickness: 16ga
• Door Thickness: 14ga
• Mounting: 34.50 x 22.50in
• Latch Quantity: 2
• Latch Type: Quarter-Turn
• Enclosure Width: 24 in
• Enclosure Height: 36 in
• Enclosure Depth: 10 in
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• UNSPSC Code: 31260000
• Approximate Depth: 10 in
• Approximate Height: 36 in
• Approximate Width: 24 in
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• Series: Concept Type 4 and 12 Series
• Unit of Measure: EA
• UPC Code: 78351037549
