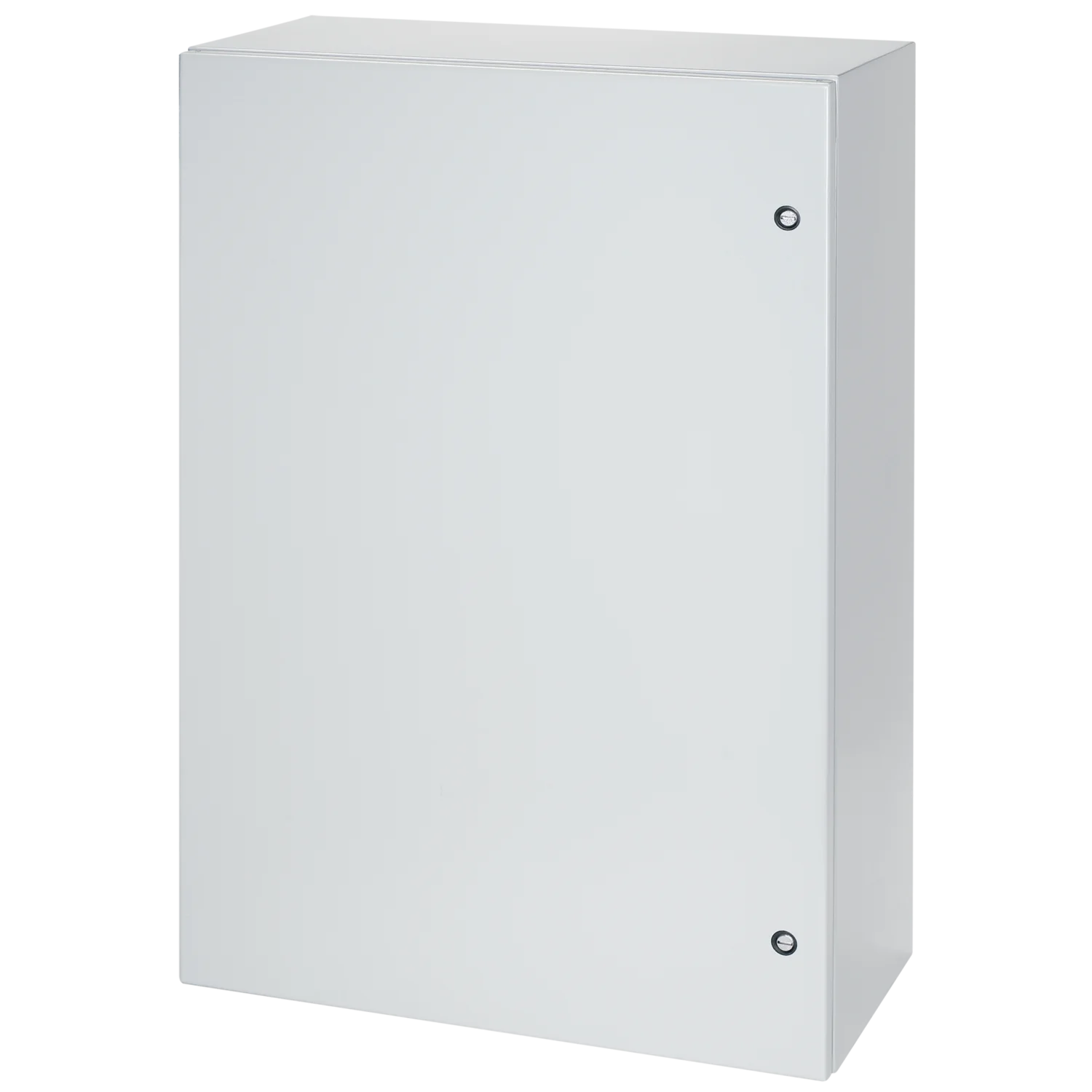

Hoffman CSD302410LG Concept Single-Door Enclosure 30 x 24 x 10 in

Product Description

The HOFFMAN CSD302410LG Concept Single-Door Enclosure features streamlined styling and flush quarter-turn latches. Ideal for machine control applications, this enclosure has an attractive and durable finish. It is constructed from mild steel with a powder-coated finish. Designed with continuously welded and ground smooth seams.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

The HOFFMAN CSD302410LG enclosure is perfect for machine control applications, offering a durable and aesthetically pleasing solution with easy installation and maintenance.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD302410LG
• Country of Origin: US - United States

Technical Specifications

• Article Number: 37689
• Height: 30 in
• Width: 24 in
• Depth: 10 in
• Material: Mild Steel
• Finish: Textured, Polyester Powder Painted
• Color Code: RAL 7035
• Body Thickness: 1.52 mm
• Door Thickness: 14ga
• Mounting: Wall
• Latch Quantity: 2
• Latch Type: Quarter-Turn
• UPC: 783510376895
• Bulletin Number: CW1
• Application: Machine Control Applications
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Color Family: Gray
• IP/NEMA Rating: IP66, NEMA 12, NEMA 4
• Body Gauge: 16
• Color Coding: RAL 7035
• Cover Type: Hidden Hinged, Hinge Pin, Seamless Foam-In-Place Gasketed, (2) 1/4 Turn Latch
• Door Gauge: 14
• Gauge: 14 and 16
• IP Rating: 66
• Latches Style: Quarter-turn
• Mounting Type: Wall
• Number of Latches: 2
• Size: 30.00x24.00x10.00 in
• Standard: CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
• Type: Two Lock, Single Door
• Brand: nVent Hoffman
• Sub Brand: Concept
• 12-Digit UPC: 783510376895
• GTiN: 00783510376895
• Product UPC: 78351037689
• UNSPSC: 39121324
• Approval: UL 508A, CUL, CSA C22.2
• Back Panel: CP3024, CP3024G
• Nema Rating: NEMA 4/12/13, IP66
• Material Specification: 16 Gauge (Body), 14Gauge (Door)
