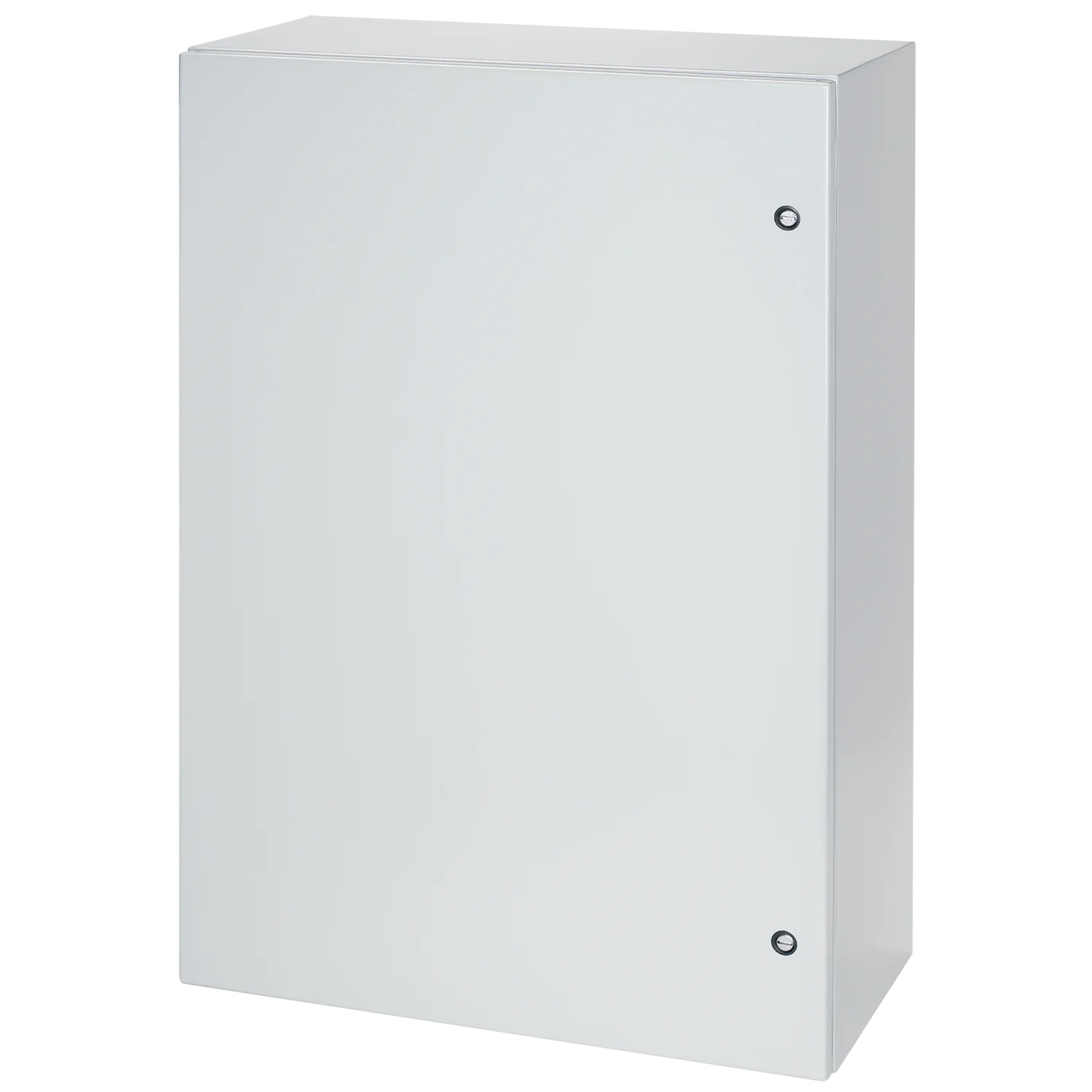

Hoffman CSD24206 Concept Single-Door Enclosure 24.00x20.00x6.00

Product Description

The HOFFMAN CSD24206 Concept Single-Door Enclosure features streamlined styling, flush quarter-turn latches, and a durable finish. Ideal for machine control applications, this enclosure is designed to safely house electrical and pneumatic components. Seams are continuously welded and ground smooth.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

The Hoffman Concept Series CSD24206 is NEMA 4/12 rated, has a removable door with hidden hinges, and a seamless foam-in-place gasket for an oil-tight and dust-tight seal.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD24206
• Country of Origin: USA

Technical Specifications

• Article Number: 77360
• Height: 24 in
• Width: 20 in
• Depth: 6 in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Mounting: 22.50 x 18.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510773601
• Application: CONCEPT Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions fo
• Brand Name: Hoffman
• Cover_Type: Concealed Hinged
• NEMA_Rating: NEMA 4/12/IP66
• Series: CW1
• Size: 24.00X20.00X6.00 in
• Special Features: Corner formed door, Door opens 210 deg, External formed body flange, Four hinges on 60 in high enclosures, Grounding stud on body, bonding provision on door, High-torque threadless studs and fasteners on door, Installation instructions provided, Minimum width body flange provides maximum door opening, Mounting holes in back of body for direct mounting or optional external mounting brackets, Panel mounting studs fit optional CONCEPT panels and other accessories, Provisions on door for optional high impact thermoplastic data pocket, Removable door with hidden hinges for clean, aesthetic appearance, Seamless foam in place gasket, Seams continuously welded and ground smooth, Simple easy-to-remove and install hinge pins with built-in captivation clip, Streamlined styling, flush quarter turn latches and an attractive, durable finish
• Standard: Wall-mounting brackets required to maintain UL/CSA external mounting requirement.CONCEPT solid single-door, door with window and flush-mount models, UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997,
• Sub_Brand: Hoffman
• Type: 1-Door
• Enclosure Width: 20 in
• Enclosure Height: 24 in
• Enclosure Depth: 6 in
• Mount: Hinged
• IP/NEMA Rating: IP66, NEMA 12, NEMA 4
