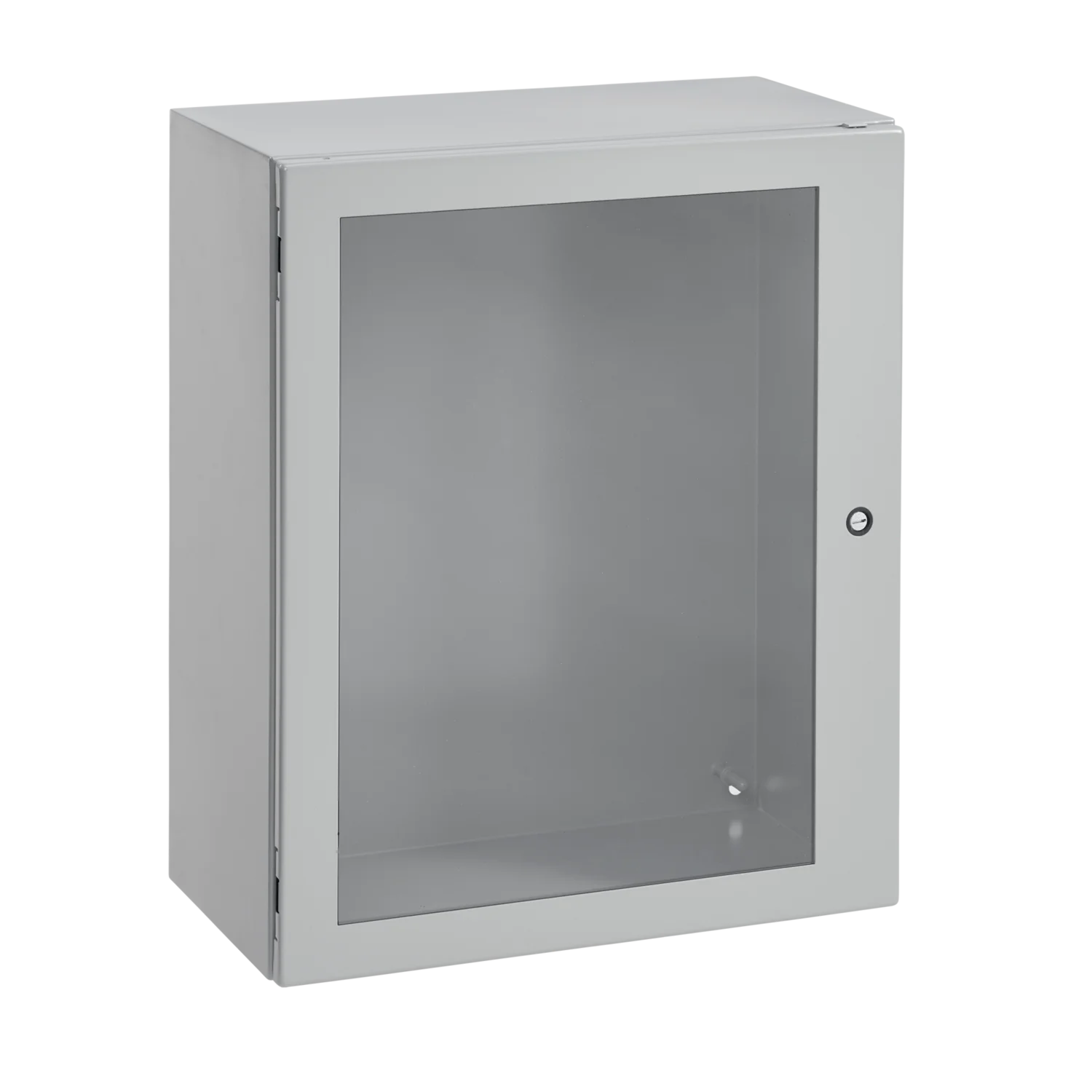

Hoffman CSD242010W Concept Window-Door Enclosure 24.00x20.00x10.00

Product Description

The HOFFMAN CSD242010W Concept Enclosures are ideal for machine control applications. They feature streamlined styling, flush quarter-turn latches, and a durable finish. The seams are continuously welded and ground smooth, with corner-formed doors. These enclosures offer easy-to-remove and install hinge pins and high-torque threadless studs and fasteners on the door.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

Ideal for machine control applications, these enclosures feature a durable finish and easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD242010W
• Country of Origin: US - United States

Technical Specifications

• Article Number: 37769
• Height: 24 in
• Width: 20 in
• Depth: 10 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 14ga
• Window Size: 20.49 x 15.30in
• Mounting: 22.50 x 18.50in
• Latch Quantity: 1
• UPC: 783510377694
• Packing Quantity: 1
• ECCN: EAR99
• Application: Machine Control Applications
• Enclosure Cover Type: Single Door with Window
• Latch: Quarter-Turn
• Color Family: Gray
• Brand: Concept
• UNSPSC: 39121324
• UNSPSC Code: 31260000
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• Manufacturer Part Number: CSD242010W
• Series: Concept Type 4 and 12 Series
• Type: Junction Box
