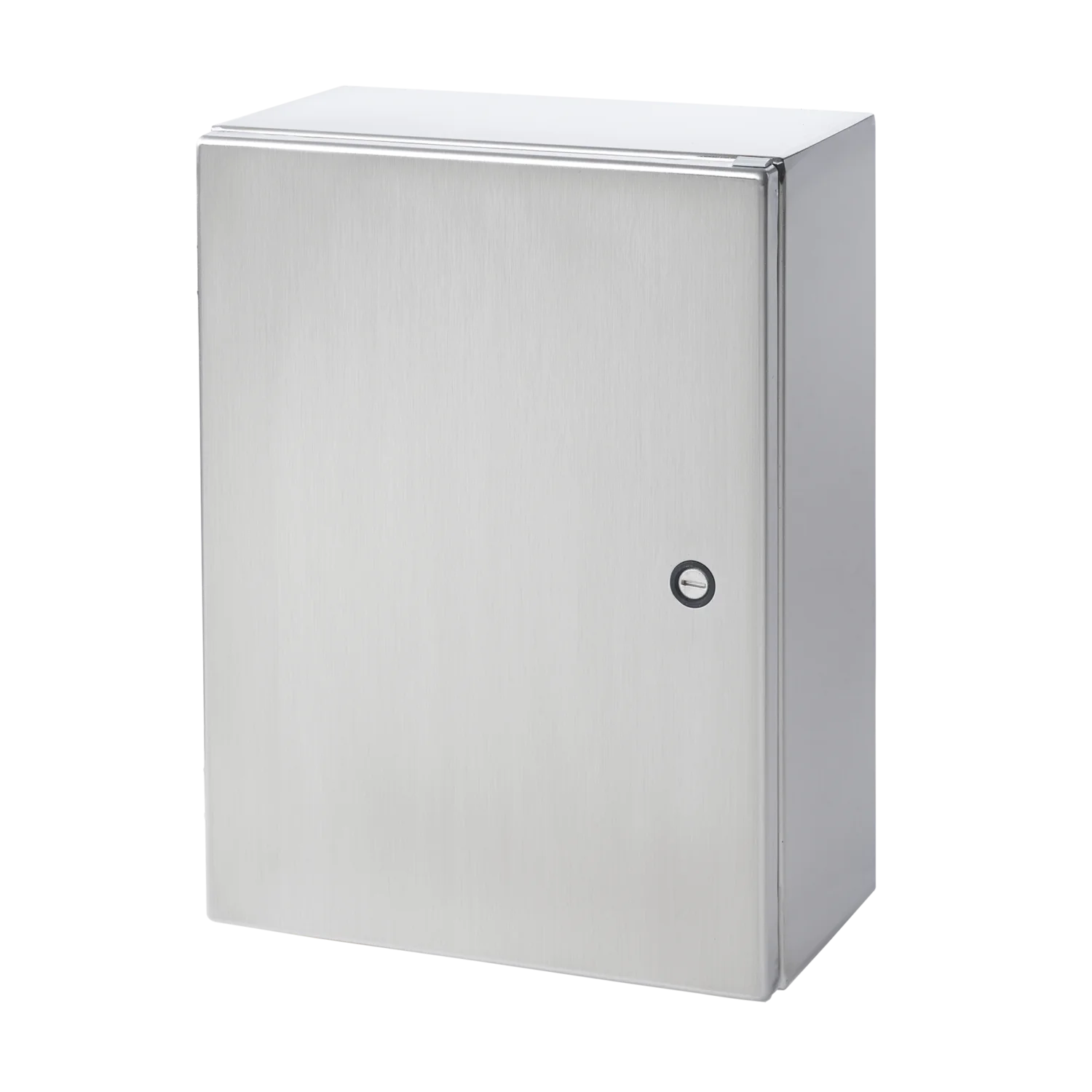

Hoffman CSD241610SS Concept Wallmount 1/4-Turn Latch Type 4X, 24x16x10

Product Description

The HOFFMAN CSD241610SS Concept Wallmount enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. This wall mount enclosure is made from stainless steel.

• Minimum-width body flange provides maximum body opening.
• External formed 90-degree body flange.
• Panel mounting studs fit optional Concept panels and other accessories.

Product Highlights

The Hoffman Concept Series CSD enclosures are single-door, wall-mounted enclosures designed to safely house electrical and pneumatic components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD241610SS
• Country of Origin: United States

Technical Specifications

• Article Number: 12863
• Height: 24in
• Width: 16in
• Depth: 10in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 16ga
• Door Thickness: 16ga
• Mounting: 22.50 x 14.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510128630
• Type: Metalic
• Enclosure Width: 16 in
• Enclosure Height: 24 in
• Enclosure Depth: 10 in
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• Cover Type: Solid
• NEMA: 4X
• Material Thickness: 16 Gauge
• Material Specification: Type 304
• Cover Mounting: Hinge
• Cover Latching: Latch, 1/4 Turn Slot
• Optional Panel: CP2416
