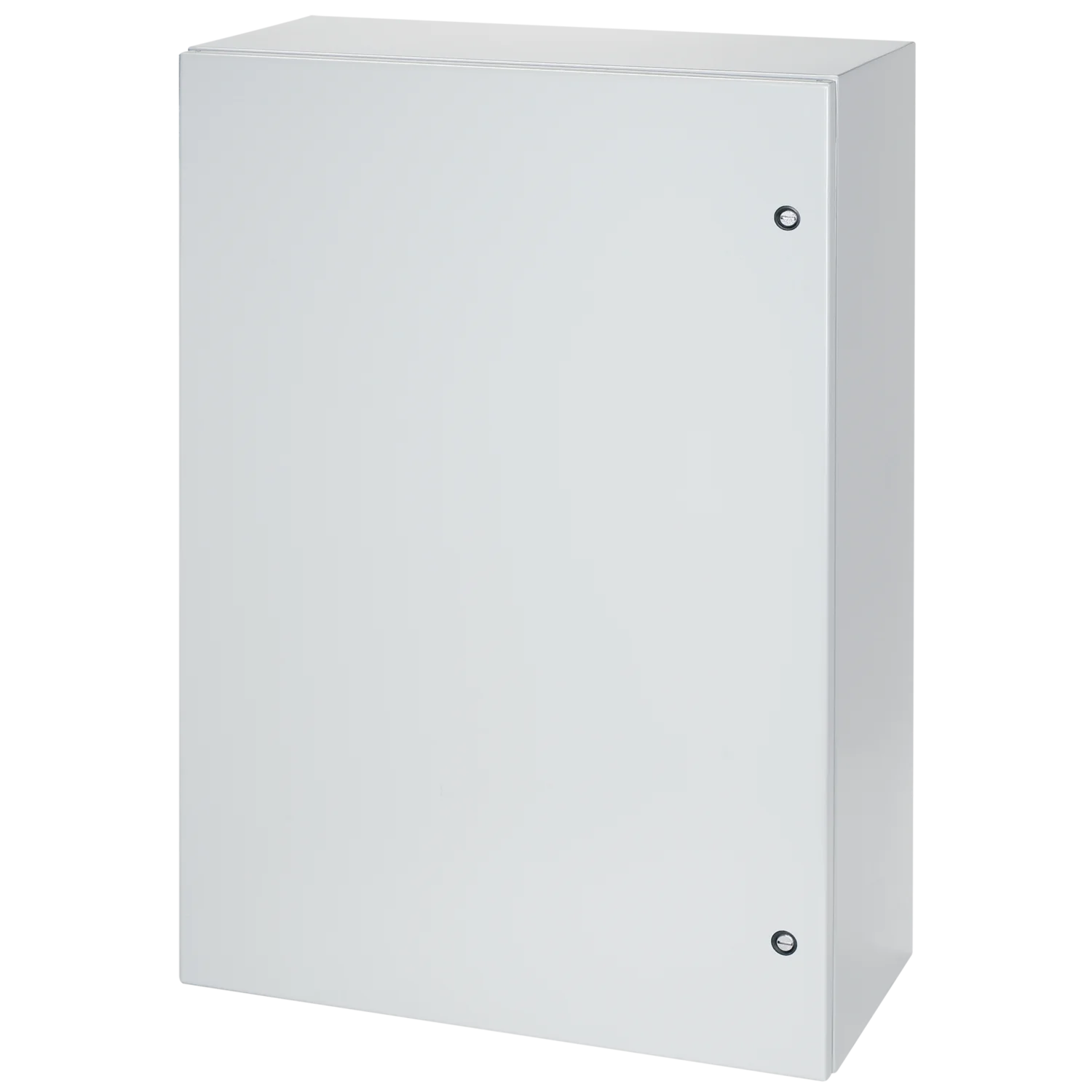

Hoffman CSD20208LG Concept™ Wall-Mount Encl 20.00X20.00X8.00

Product Description

The HOFFMAN CSD20208LG Concept™ Wall-Mount Enclosure is ideal for machine control applications, featuring streamlined styling and flush quarter-turn latches. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions for application and mounting flexibility. Two-door landscape models provide full-width access and easy panel installation.

• Constructed with 14, 16 or 18 gauge steel
• Seams are continuously welded and ground smooth
• Features a seamless foam-in-place gasket

Product Highlights

This wall-mount enclosure has corner-formed doors, simple hinge pins, and high-torque threadless studs. It includes panel mounting studs for optional CONCEPT panels and mounting holes for external wall-mount brackets.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20208LG
• Country of Origin: United States

Technical Specifications

• Type: 4/12
• Brand: Hoffman
• Color: Gray
• Material: Steel
• Description: Wall Mount Enclosure
• Concept Panel: CP2020
• Latches Style: Quarter-Turn
• A x B x C: 20.00 x 20.00 x 8.00 in
• Body Gauge: 18 ga
• Door Gauge: 16 ga
• Conductive Panel: CP2020G
• Number of Latches: 1
• Mounting G x H: 18.50 x 18.50 in
• Manufacturers Part Number: CSD20208LG
• Height: 20in
• Width: 20in
• Depth: 8in
• Finish: Powder Coated
• Color Code: RAL 7035
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510159597
• MPN: CSD20208LG
• Model: CSD20208LG
• Country of Origin: United States
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - Metric: 508mm
• External Width - Metric: 508mm
• External Depth - Metric: 223mm
• IP Rating: IP66
• NEMA Rating: NEMA 4, 12, 13
• External Height - Imperial: 20"
• External Width - Imperial: 20"
• External Depth - Imperial: 8.8"
• Product Range: -
