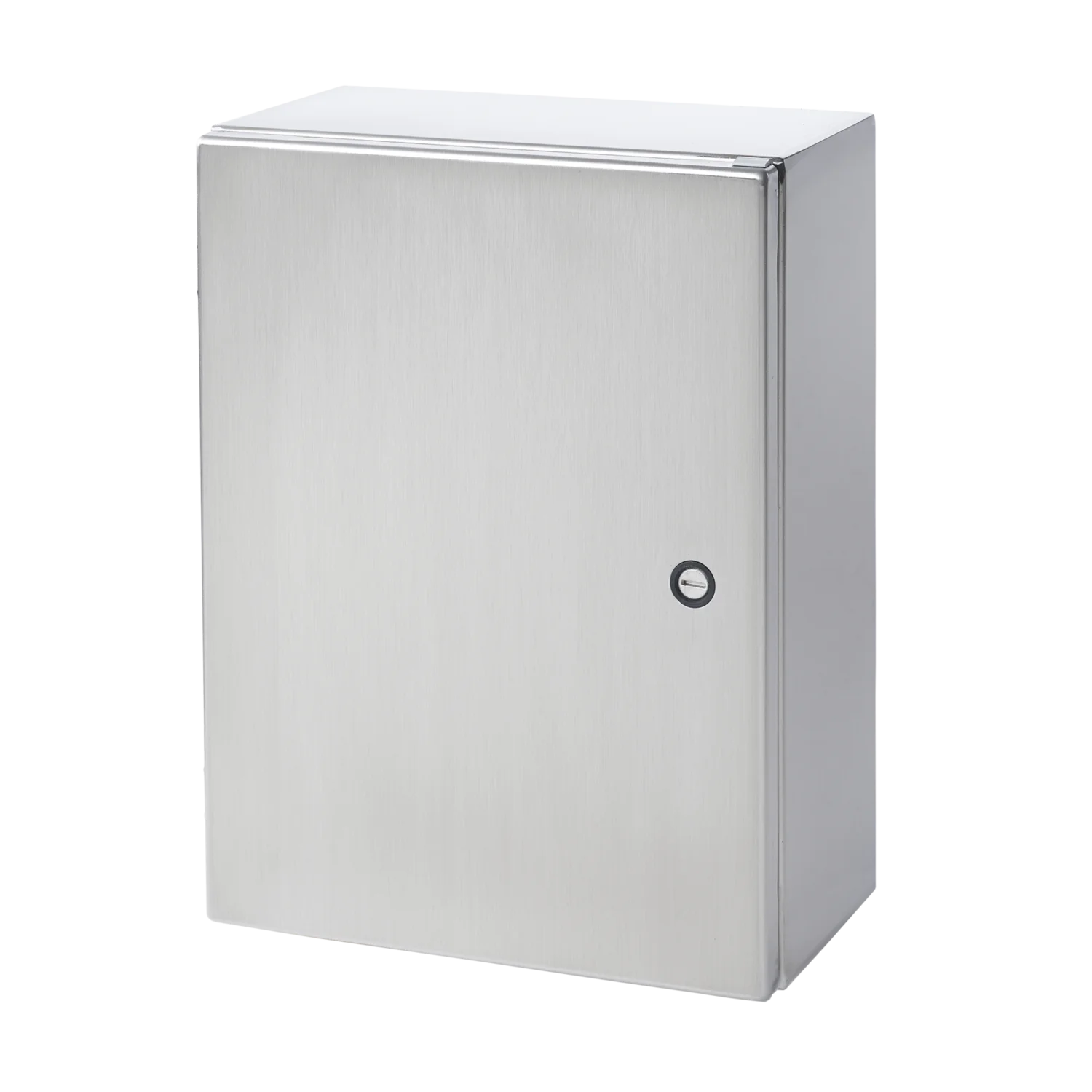

Hoffman CSD20206SS Concept Wallmount 20 x 20 x 6 in.

Product Description

The Hoffman CSD20206SS Concept Wallmount enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Ideal for housing electrical and pneumatic components.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The Hoffman Concept Series CSD20206SS enclosures are continuously welded and ground smooth, with no holes or knock-outs. Suitable for use in corrosive environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20206SS
• Country of Origin: USA

Technical Specifications

• Article Number: 78370
• Height: 20 in
• Width: 20 in
• Depth: 6 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 16ga
• Door Thickness: 16ga
• Mounting: Wall
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510783709
• Bulletin Number: CWS
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• IP/NEMA Rating: IP66, NEMA 3, NEMA 4
• Standards: Build America Buy America Compliant, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, UL 508A Listed
• Closure Method: 1/4 Turn Latch
• Cover Closure Type: Hinged
• Knockouts: No
• Metallic / Non-Metallic: Metallic
• Color: Silver
• Cover Style: Solid
• Gasket: Polyurethane
• Includes: Grounding Hardware, Sealing Washer
• Interior Panel: 32FK16
• Enclosure Cover Features: 1/4 Turn Latch with Screw Driver Slot
• Metal Gauge: 14/16 ga
• Series: CWS
• Gasket Material: Seamless Foam-In-Place
• Compatible Panel Model Number: CP2020, CP2020G
• Includes Knockouts: Knockouts Not Included
• Environment - MERCH: Washdown and Corrosion Resistant
• Nominal Width: 20 in
• Nominal Height: 20 in
• Nominal Depth: 6 in
• Body Material Thickness: 16 ga
• ECCN: EAR99
• UNSPSC: 39121324
• Brand: Concept
• NEMA Rating: 4X
• Application: Chemical & Water Corrosion Protection
• Mounting Type: Wall
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Style: Quarter-turn
