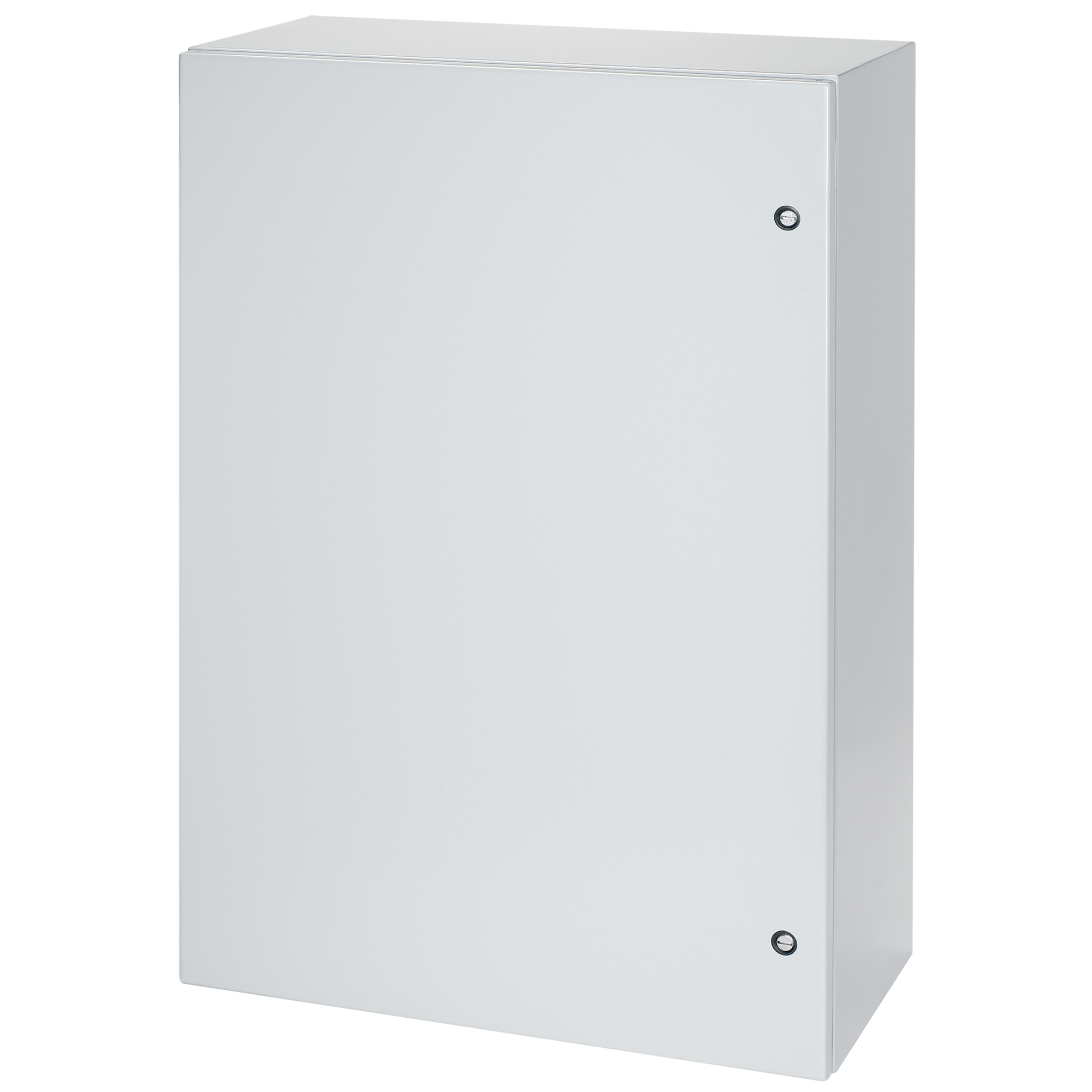

Hoffman CSD20206 Concept Single-Door Enclosure 20.00x20.00x6.00

Product Description

The HOFFMAN CSD20206 Concept Enclosures feature streamlined styling, flush quarter-turn latches, and a durable finish. Designed to safely house electrical and pneumatic components. Seams are continuously welded and ground smooth. The enclosure has a minimum-width body flange that provides a maximum door opening of 210 degrees.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

The HOFFMAN CSD20206 is a single-door wall-mount enclosure with quarter-turn latches and a powder-coated finish. It is designed for housing electrical and pneumatic components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20206
• Country of Origin: United States

Technical Specifications

• Article Number: 77340
• Height: 20in
• Width: 20in
• Depth: 6in
• Material: Alloy Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 1.52 mm
• Door Thickness: 16ga
• Mounting: 18.50 x 18.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510773403
• Bulletin Number: CW1
• Body Gauge: 16
• Door Gauge: 16
• IP Rating: 66
• Latches Style: Quarter-turn
• Mounting Type: Wall
• Number of Latches: 1
• Size: 20.00x20.00x6.00 in
• Standard: CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
• Type: Single Door, Enclosure
• Brand: Hoffman
• Sub Brand: Concept
• 12-Digit UPC: 783510773403
• Color: ANSI 61 Gray
• Enclosure Width: 20 in
• Enclosure Height: 20 in
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• Finish Type: Granite
• Specification Met: IP66, NEMA 4
• Product Height: 20 in
• IP/NEMA Rating: IP66, 12, 4
• Product Width: 20 in
• Product Depth: 6 in
• MPN: CSD20206
• Country of Origin: United States
• Category: Business & Industrial
