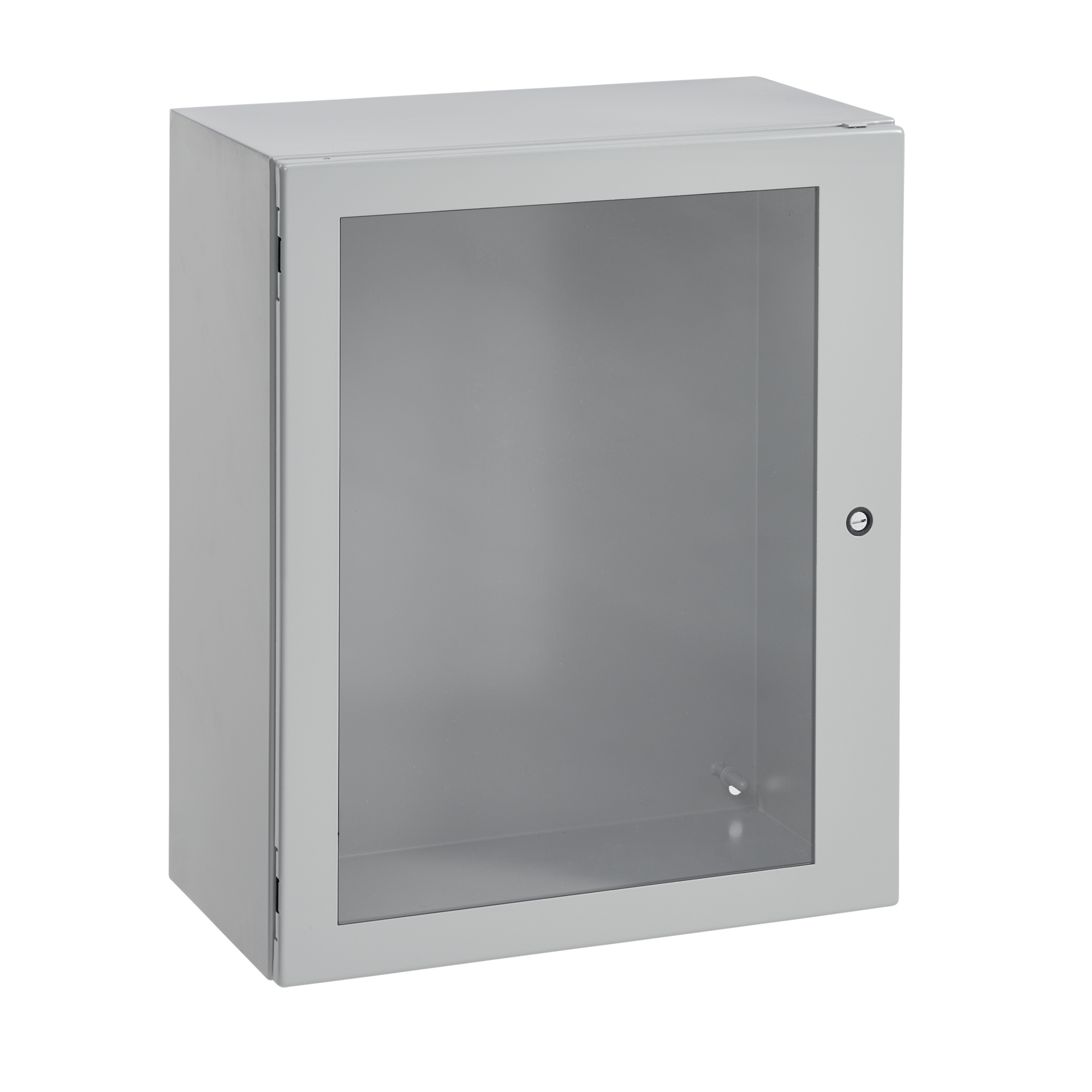

Hoffman CSD20168W Concept Window-Door Enclosure 20.00x16.00x8.00

Product Description

The HOFFMAN CSD20168W Concept Enclosures are ideal for machine control applications. They feature streamlined styling, flush quarter-turn latches, and a durable finish. The enclosure is made of mild steel with continuously welded and ground smooth seams. It has a removable door with hidden hinges and a seamless foam-in-place gasket.

• Seams continuously welded and ground smooth
• Simple easy-to-remove and install hinge pins with built-in captivation clip
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The HOFFMAN Concept Enclosures are designed for machine control applications, offering a durable and aesthetically pleasing solution.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20168W
• Country of Origin: US - United States

Technical Specifications

• Article Number: 77840
• Height: 20 in
• Width: 16 in
• Depth: 8 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 14ga
• Window Size: 16.49 x 11.30in
• Mounting: 18.50 x 14.50in
• Latch Quantity: 1
• UPC: 783510778408
• Brand: nVent HOFFMAN
• Application: Controls and Drives
• Enclosure Cover Type: Single Door with Window
• Latch: Quarter-Turn
• Color Family: Gray
• Body Thickness [Metric]: 1.52 mm
• Catalog Number: CSD20168W
• Concept Panel: CP2016
• Conductive Concept Panel: CP2016G
• Country of Origin: US
• Door Thickness [Metric]: 1.9 mm
• IP Rating: 66
• Item Group: CW1
• Length: 17.3000 in
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• Mounting [Metric]: 470 x 368 mm
• NEMA Rating: 12 Indoor, dust-resistant
• Number of Latches: 1
• Panel Size: 18.20 x 14.20
• Panel Size [Metric]: 462 x 361 mm
• Product Family: Concept
• Size: 20.00x16.00x8.00 in
• Standards: UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 4, 12, 13, CSA Certified, File No. 42186: Type 4, 12, VDE IP66, IEC 60529
• Sub Brand: Concept
• Type: Mild Steel Wall Mounted Industrial Enclosures
• UPC 11: 78351077840
• UPC 12: 783510778408
• Width [Metric]: 43.9420 cm
• Window Size [Metric]: 419 x 287 mm
• Applications: For Machine Control Applications
• Body Gauge: 16
• Cover Type: Quarter Turn Slotted Latch
• Door Gauge: 14
• Gauge: 16 or 14
• Mounting Type: Wall
• Standard: CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
• MDM Pkg GTiN: 00783510778408
• Product UPC: 78351077840
