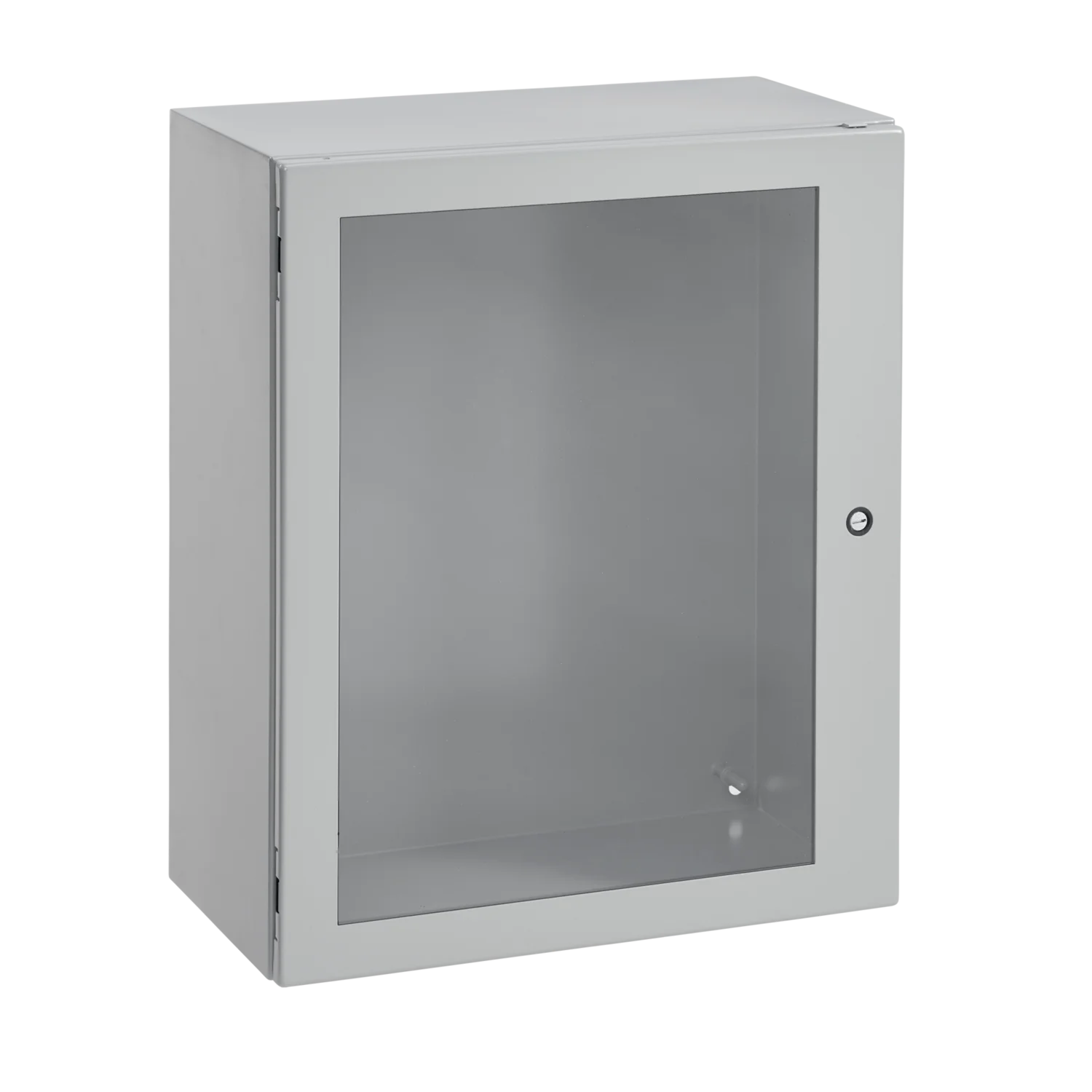

Hoffman CSD20166W Wall-Mount Enclosure/Window 20.00 inches x 16.00 inches x 6.00 inches

Product Description

The HOFFMAN CSD20166W Wall-Mount Enclosure/Window is designed for machine control applications. It features streamlined styling, flush quarter-turn latches and a durable finish. The enclosure's dimensions are 20.00 x 16.00 x 6.00 inches and is constructed of steel with continuously welded and ground smooth seams.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

This Hoffman wall-mount enclosure provides a secure housing for electrical components, featuring a clear polycarbonate window for easy monitoring.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20166W

Technical Specifications

• MPN: CSD20166W
• Brand: Hoffman
• Manufacturer: Hoffman
• Model / MPN: HFCSD20166W
• Material: Steel
• Height: 20in
• Width: 16in
• Depth: 6in
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 14ga
• Window Size: 16.49 x 11.30in
• Mounting: 18.50 x 14.50in
• Latch Quantity: 1
• UPC: 783510777906
