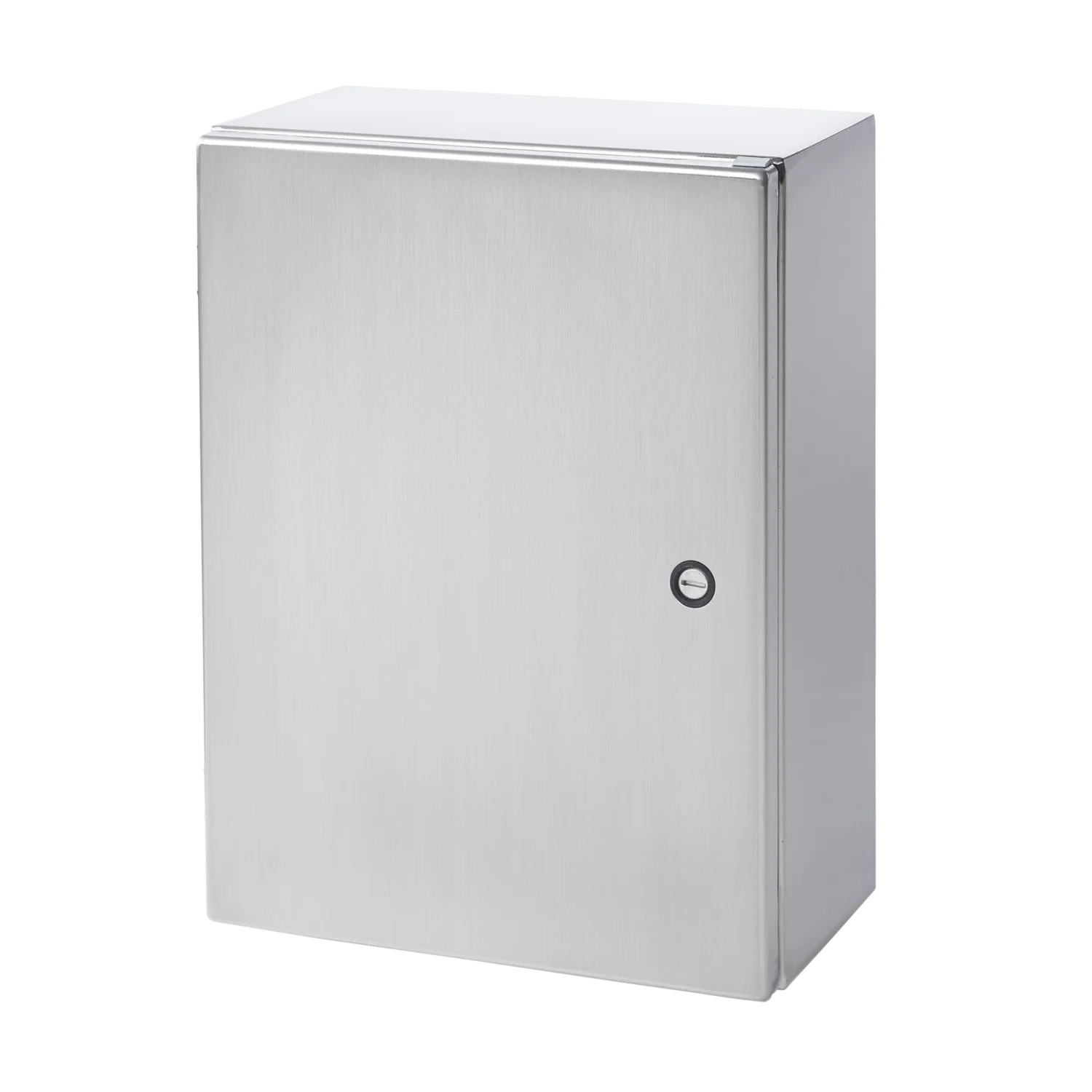

Hoffman CSD20166SS Concept Wallmount 20 x 16 x 6

Product Description

The HOFFMAN CSD20166SS Concept Wallmount enclosure is designed for indoor or outdoor applications needing protection from chemicals and water. Features include a minimum-width body flange, external formed 90-degree body flange and panel mounting studs for optional Concept panels and accessories. It is a NEMA 3R/4/4X/12/13, IP66 rated enclosure.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The enclosure has a self-grounding latch system with double seal and bonding provision on the door with a grounding stud on the body.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20166SS
• Country of Origin: US - United States

Technical Specifications

• Bulletin Number: CWS
• Finish: #4 Smooth Brushed
• UNSPSC: 39121324
• Approval: UL 508A, CUL, CSA C22.2
• Service Type: Indoor/Outdoor
• Mounting: Wall
• Material Specification: 16 Gauge (Door/Body)
• Type: 1-Door
• ECCN: EAR99
• Brand: Concept
• NEMA Rating: 3R, 4, 4X, 12
• Application: Chemical & Water Corrosion Protection
• Material: 304 Stainless Steel
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Style: Quarter-turn
• Height: 20 in.
• Depth: 6 in.
• Width: 16 in.
