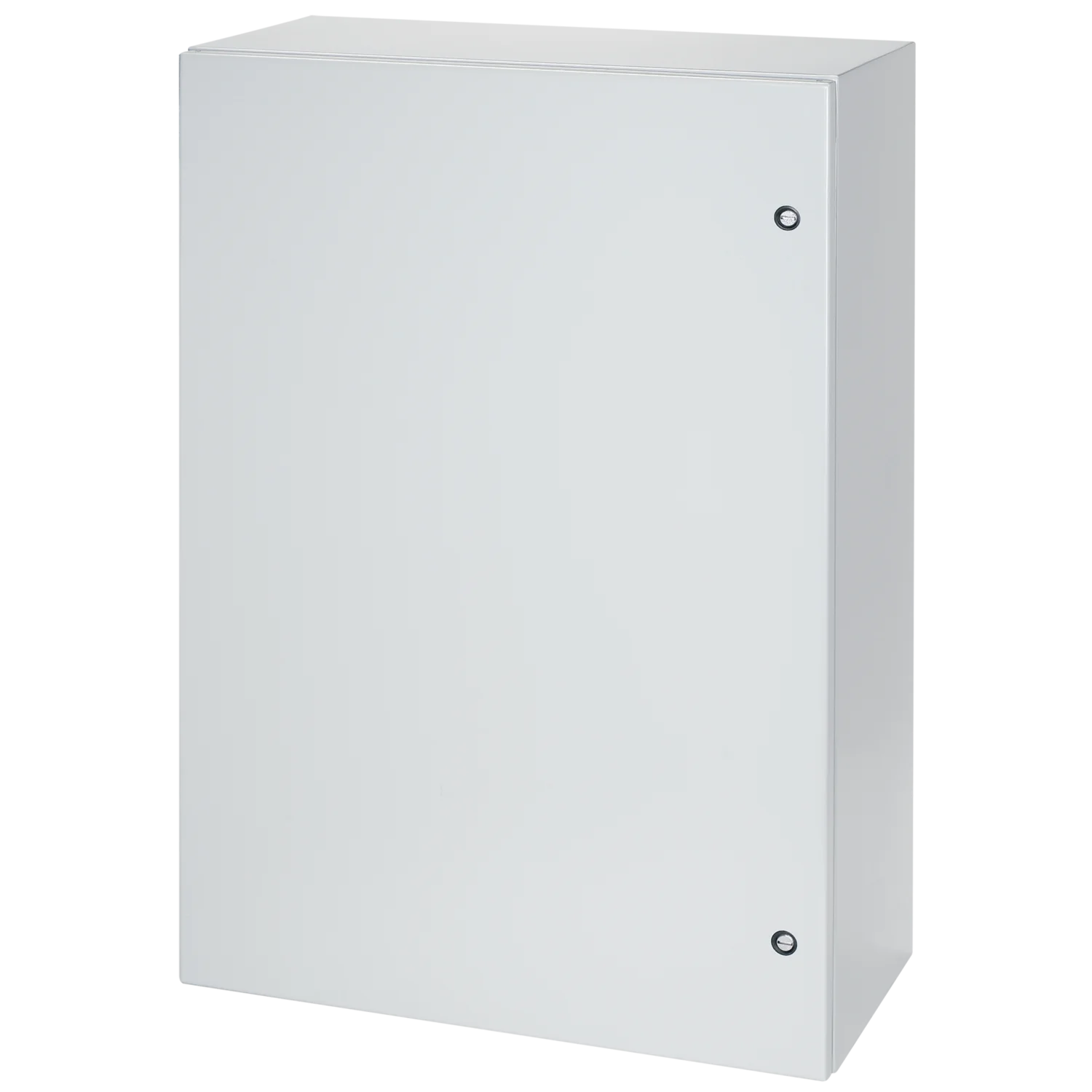

Hoffman CSD20126 Concept Single-Door Enclosure 20.00x12.00x6.00

Product Description

The HOFFMAN CSD20126 Concept Single-Door Enclosure features streamlined styling and flush quarter-turn latches. Seams are continuously welded and ground smooth, with corner-formed doors. It has simple, easy-to-remove hinge pins with a built-in captivation clip. Ideal for machine control applications.

• Continuously welded and ground smooth seams
• Simple easy-to-remove and install hinge pins with built-in captivation clip
• Minimum-width body flange provides maximum door opening (210 degrees)

Product Highlights

The enclosure has a powder-coated finish and a removable door with hidden hinges for a clean appearance. It includes panel mounting studs for optional Concept panels and mounting holes for external wall-mount brackets.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20126
• Country of Origin: Unknown

Technical Specifications

• Article Number: 29393
• Height: 20 in.
• Width: 12 in.
• Depth: 6 in.
• Material: Mild Steel
• Finish: Powder Coated
• Color: ANSI 61 Gray
• Color Code: ANSI 61
• Body Thickness: 1.52mm
• Door Thickness: 1.52mm
• Mounting: 470 x 267mm
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510293932
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Enclosure Type: Wall Mount
• External Height - Metric: 508mm
• External Width - Metric: 305mm
• External Depth - Metric: 152mm
• IP Rating: IP66
• NEMA Rating: NEMA 4, 12, 13
• External Height - Imperial: 20"
• External Width - Imperial: 12"
• External Depth - Imperial: 6"
• Product Range: CONCEPT Series
• ECCN: EAR99
• UNSPSC: 39121324
• Brand: Concept
• Application: Machine Control Applications
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Color Family: Gray
• IP/NEMA Rating: IP66, NEMA 12
