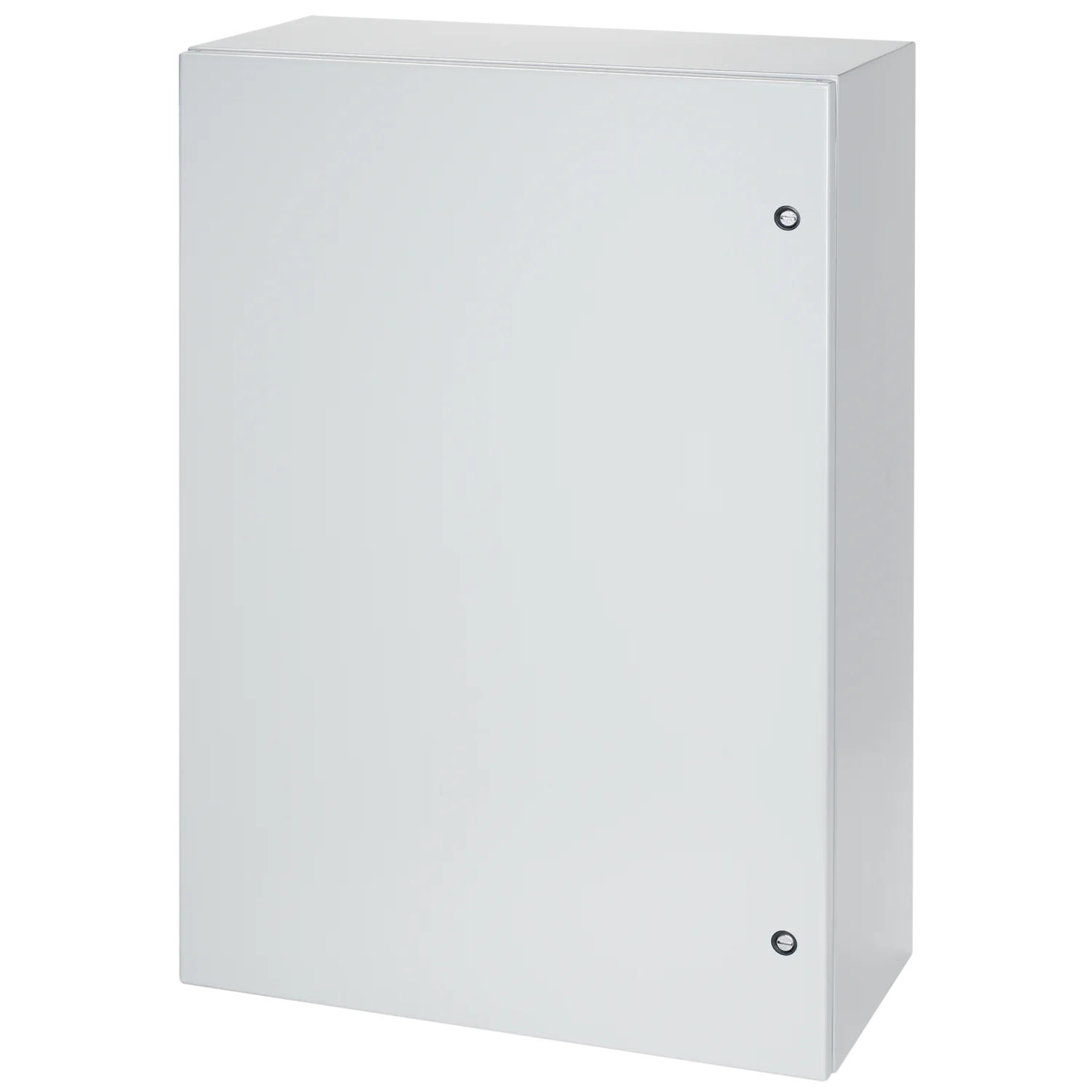

Hoffman CSD16206 Concept Single-Door Enclosure 16.00x20.00x6.00

Product Description

The HOFFMAN CSD16206 Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish. Designed to safely house electrical and pneumatic components, these enclosures feature continuously welded and ground smooth seams, ensuring no holes or knock-outs. Ideal for machine control applications.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

Durable and aesthetically pleasing single-door enclosure for housing electrical and pneumatic components in machine control applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD16206
• Country of Origin: United States

Technical Specifications

• Article Number: 77320
• Height: 16in
• Width: 20in
• Depth: 6in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 1.52 mm
• Door Thickness: 16ga
• Mounting: 14.50 x 18.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510773205
• EAN: 8713574312470
• Bulletin Number: CW1
• Applications: For Machine Control Applications
• Body Gauge: 16
• Cover Type: 3-Point Latch
• Door Gauge: 16
• Gauge: 14 and 16
• IP Rating: 66
• Latches Style: Quarter-turn
• Mounting Type: Wall
• Number of Latches: 1
• Size: 16.00x20.00x6.00 in
• Standard: CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
• Type: Enclosure Only
• Brand: HOFFMAN
• Sub Brand: Concept
• 12-Digit UPC: 783510773205
• GTiN: 00783510773205
• Product UPC: 78351077320
• Enclosure Width: 20 in
• Enclosure Height: 16 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 4,NEMA 12,NEMA 13
• Mount: Hinged
• Model: CSD16206
• MPN: CSD16206
• Country of Origin: United States
• Category: Business & Industrial
• Application: Industrial
• Cover_Type: Concealed Hinged
• Enclosure: NEMA 4/12/13, IP66
• NEMA_Rating: NEMA 4/12/IP66
• Series: CW1
• Special Features: Corner formed door Door opens 210 deg External formed body flange Four hinges on 60 in high enclosures Grounding stud on body, bonding provision on door High-torque threadless studs and fasteners on door Installation instructions provided Minimum width body flange provides maximum door opening Mounting holes in back of body for direct mounting or optional external mounting brackets Panel mounting studs fit optional CONCEPT panels and other accessories Provisions on door for optional high impact thermoplastic data pocket Removable door with hidden hinges for clean, aesthetic appearance Seamless foam in place gasket Seams continuously welded and ground smooth Simple easy-to-remove and install hinge pins with built-in captivation clip Streamlined styling, flush quarter turn latches and an attractive, durable finish
