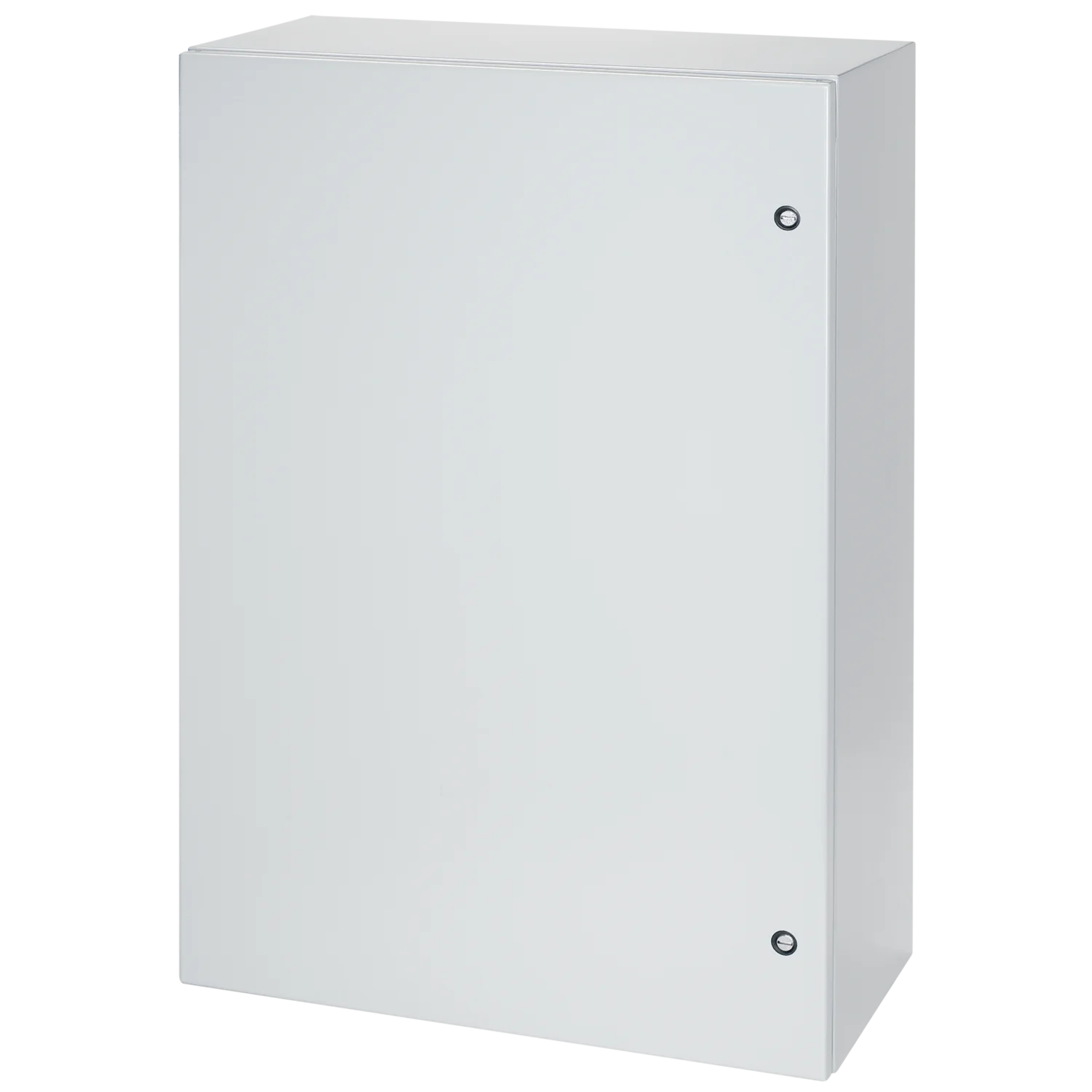

Hoffman CSD161210 Concept Wall-Mount Enclosure 16.00x12.00x10.00

Product Description

The Hoffman CSD161210 Concept™ Wall-Mount Enclosure is ideal for machine control applications. It features streamlined styling, flush quarter-turn latches, and a durable finish. The enclosure has continuously welded and ground smooth seams, corner-formed doors, and simple, easy-to-remove hinge pins. It is designed to safely house electrical and pneumatic components.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

The Hoffman CSD161210 enclosure is designed for machine control applications, featuring a durable finish and easy-to-remove hinge pins.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD161210
• Country of Origin: US - United States

Technical Specifications

• Type: Enclosure Only
• Brand: Hoffman
• Material: Steel
• Description: Wall Mount Enclosure
• Concept Panel: CP1612
• Latches Style: Quarter-Turn
• A x B x C: 16.00 x 12.00 x 10.00 in
• Body Gauge: 18 ga
• Door Gauge: 16 ga
• Conductive Panel: CP1612G
• J Dimension: 8 in
• Number of Latches: 1
• Mounting G x H: 14.50 x 10.50 in
• Manufacturers Part Number: CSD161210
• Height: 16 in
• Width: 12 in
• Depth: 10 in
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Latch Quantity: 1
• UPC: 783510374198
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: CW1
• UNSPSC Code: 31260000
• Approximate Depth: 10 in
• Approximate Height: 16 in
• Approximate Width: 12 in
• Configuration: Without Knock-Outs
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• NEMA Rating: NEMA 13
• Series: Concept Type 4 and 12 Series
• Unit of Measure: EA
• UPC Code: 78351037419
• Mount: Hinged
• ECCN: EAR99
• UNSPSC: 39121324
• Application: Machine Control Applications
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Color Family: Gray
• MPN: CSD161210
• Suitable For: Wall, Interior
• Features: Waterproof
• Box Shape: Rectangular
• Mounting Style: Flange, Screw, Cable
• Model: CSD161210
• Item Height: 16 in
• Length: 12"
• Panel Size (D x E): 361 x 259
