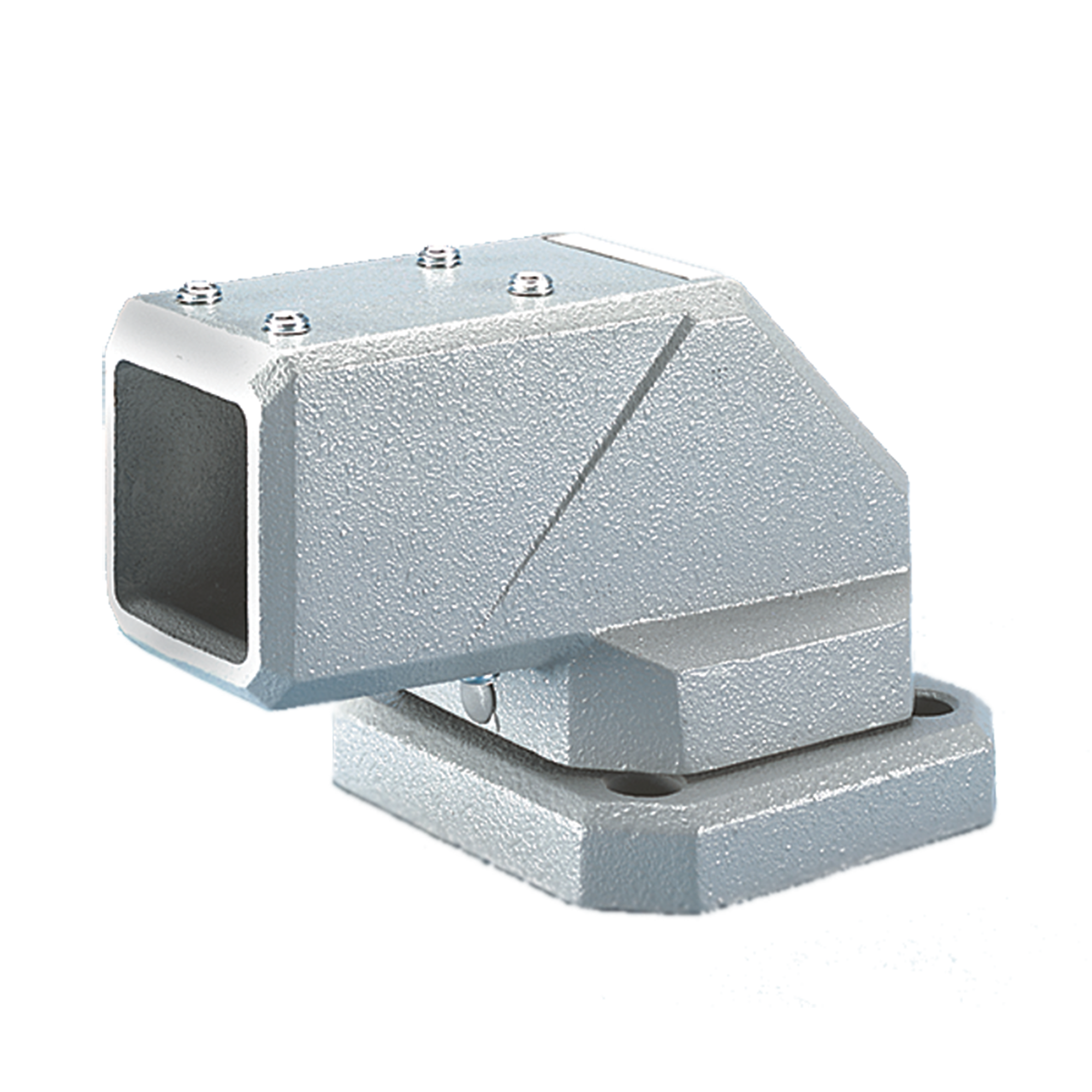

Hoffman CCS8SJLG, Set-Up Joint, Pendant Arm, Fits 80X80Mm, Castir/Ltgray

Product Description

The Hoffman CCS8SJLG is a set-up joint and pendant arm designed to fit structures with dimensions of eighty by eighty millimeters. Made from cast iron with a light-gray polyester powder finish, this component attaches equipment securely to a horizontal surface. It allows for a full circular motion with the pendant arm, enabling a rotation of up to three hundred six degrees. This product features a maintenance-free pivot bearing, ensuring smooth operation over time.

• Constructed from durable cast iron.
• Allows a full range of motion with a three hundred six degrees turn.
• Includes setscrews, a removable access plate, and a gasket.

Product Highlights

This product is ideal for mounting equipment where flexibility and easy access are necessary.

Product Information

Standard Information

• Brand: Hoffman Enclosures Inc
• Part Number: CCS8SJLG

Technical Specifications

• Material: Cast Iron
• Finish: Light Gray Polyester Powder Coating
• Dimensions: Fits 80x80mm
• Weight: Forty-five point five pounds
• UNSPSC Code: 24102001
