Product Description

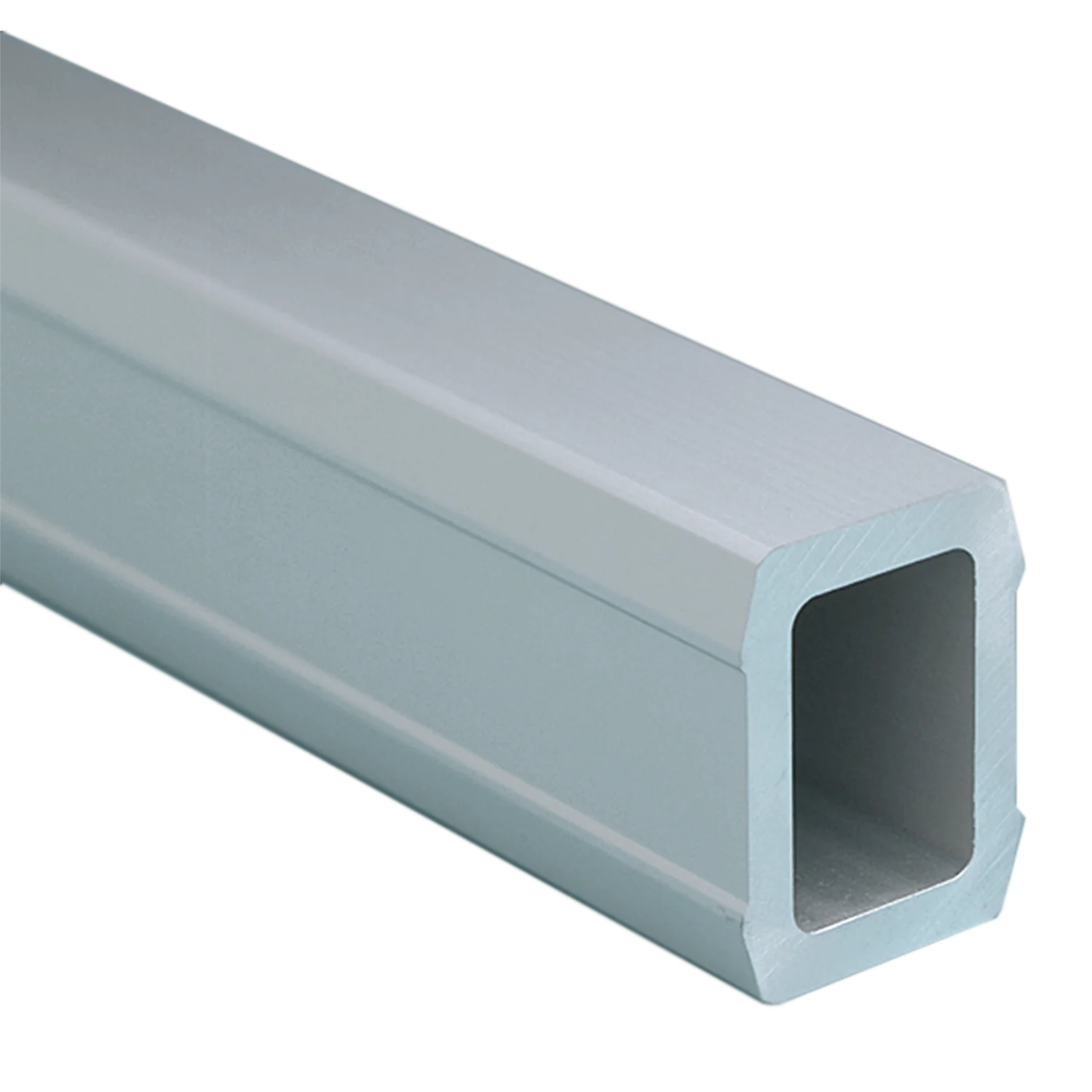

The HOFFMAN CCS2T5 Compact Series 2 Tube provides structural integrity and acts as a conduit for equipment wiring. This hollow aluminum extrusion is available in various lengths and features connection components fastened to the support arm with set screws. It conforms to DIN 59411 and 2395 standards.
- Hollow aluminum extrusion available in various lengths
- Connection components fastened to support arm with set screws
- Assembled Compact Series 2 HMI Arm System has a max weight load of 101 lb. (45.8 kg)
Product Highlights
The HOFFMAN CCS2T5 Compact Series 2 Tube provides structural support and protects equipment wiring.
Product Information
Standard Information
-
Brand: HOFFMAN
-
Manufacturer Part Number: CCS2T5
Technical Specifications
-
Article Number: 66290
-
Height: 19.68in
-
Width: 1.77in
-
Depth: 2.36in
-
Material: Aluminum
-
Finish: Anodized
-
Thickness: 0.31in
-
Length: 19.68in
-
Inside Cross Section: 1.96in
-
UPC: 783510662905
-
EAN: 8713574252028
-
Standard Packaging Quantity: 1
-
Packing Quantity: 1
-
Bulletin Number: CS4
-
Size: 1.77 x 2.36 in
-
Type: Profile
-
Brand: nVent Hoffman
-
Sub Brand: COMPACT
-
12-Digit UPC: 783510662905
-
Color: Gray
-
GTiN: 00783510662905
-
Product UPC: 78351066290
-
External Dimensions: 1.77 x 2.36 in
-
Manufacturers Part Number: CCS2T5
-
Description: Tubes
-
A x B x C: 19.68 x 1.77 x 2.36 in
-
For Use With: HMI Interface
-
Mounting Type: DIN Rail Mount
-
Numeric ID: 2510415
-
Primary Type: Tube
-
Series: 2 Series
