Hoffman C16C30 Consolet Enclosure 16.00x30.00x11.09

Product Description

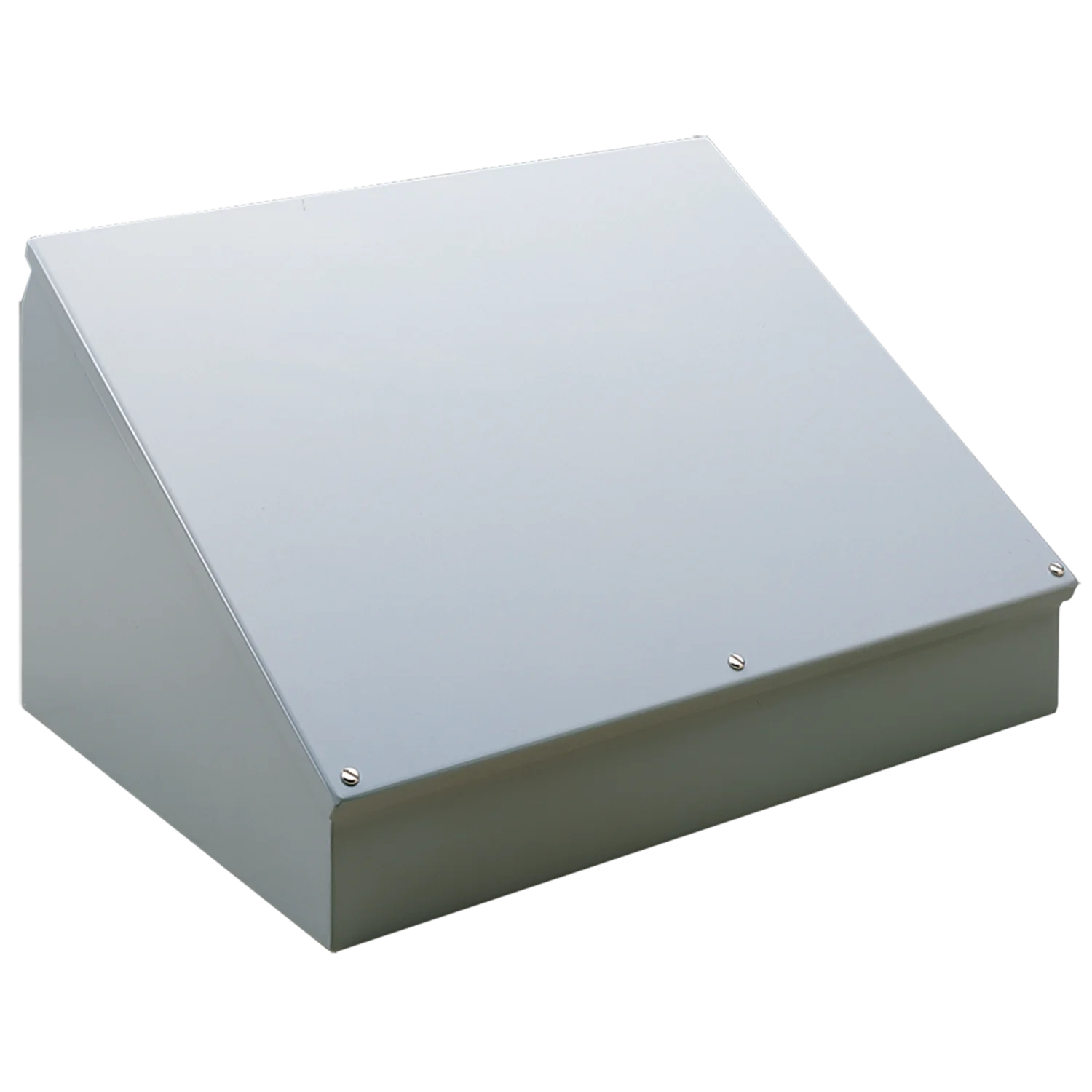

The HOFFMAN C16C30 consolet enclosures are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.

• Can be positioned on either of two sides to provide a 30- or 60-degree surface access
• Seams continuously welded and ground smooth
• No holes or knockouts

Product Highlights

The Hoffman consolet enclosures are suitable for mounting small control or instrumentation devices and can be mounted on desktops, pedestals or other flat surfaces.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: C16C30
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 59890
• Height: 16 in
• Width: 30 in
• Depth: 11.09 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510598907
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: C5
• Applications: Controls and Drives, Indoor
• Size: 16.00x30.00x11.09 in
• Standard: CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Control
• Brand: HOFFMAN
• Sub Brand: Hoffman
• 12-Digit UPC: 783510598907
• Length: 34.7 Inch
• UNSPSC: 39121323
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 12/13, IP65
• Mounting: Desktop/Pedestal/Surface
• Material Specification: 14 Gauge
• Control Panel Angle: 30/60 Degree
• Control Panel Width: 30.28 Inch
• Control Panel Height: 16.28 Inch
• Control Panel Mounting: Continuous Hinge with Screw, Gasketed
• Approximate Depth: 11 in
• Approximate Height: 16 in
• Approximate Width: 30 in
• Enclosure Mounting: Panel Mount
• Manufacturer Part Number: C16C30
• ECCN: EAR99
• Application: Industrial, Small Control Devices/Instrumentation Devices
• Cable Entry: Bottom
• Closure Method: Screws
• Cover Type: Screw On
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Gasket Material: Oil Resistant
• IP Rating: IP65
• Includes Knockouts: Knockouts Not Included
• Material Thickness: 14 ga
• Mounting Type: Pedestal
• NEMA Enclosure Rating: 12; 13
• Overall Depth: 11.09 in
• Overall Height: 16 in
• Overall Width: 30 in
• Product Type: Consolet Enclosure
• Standards: File No. E61997 cUL Listed Per CSA C22.2 No. 94; IEC 60529; UL 508A Listed
