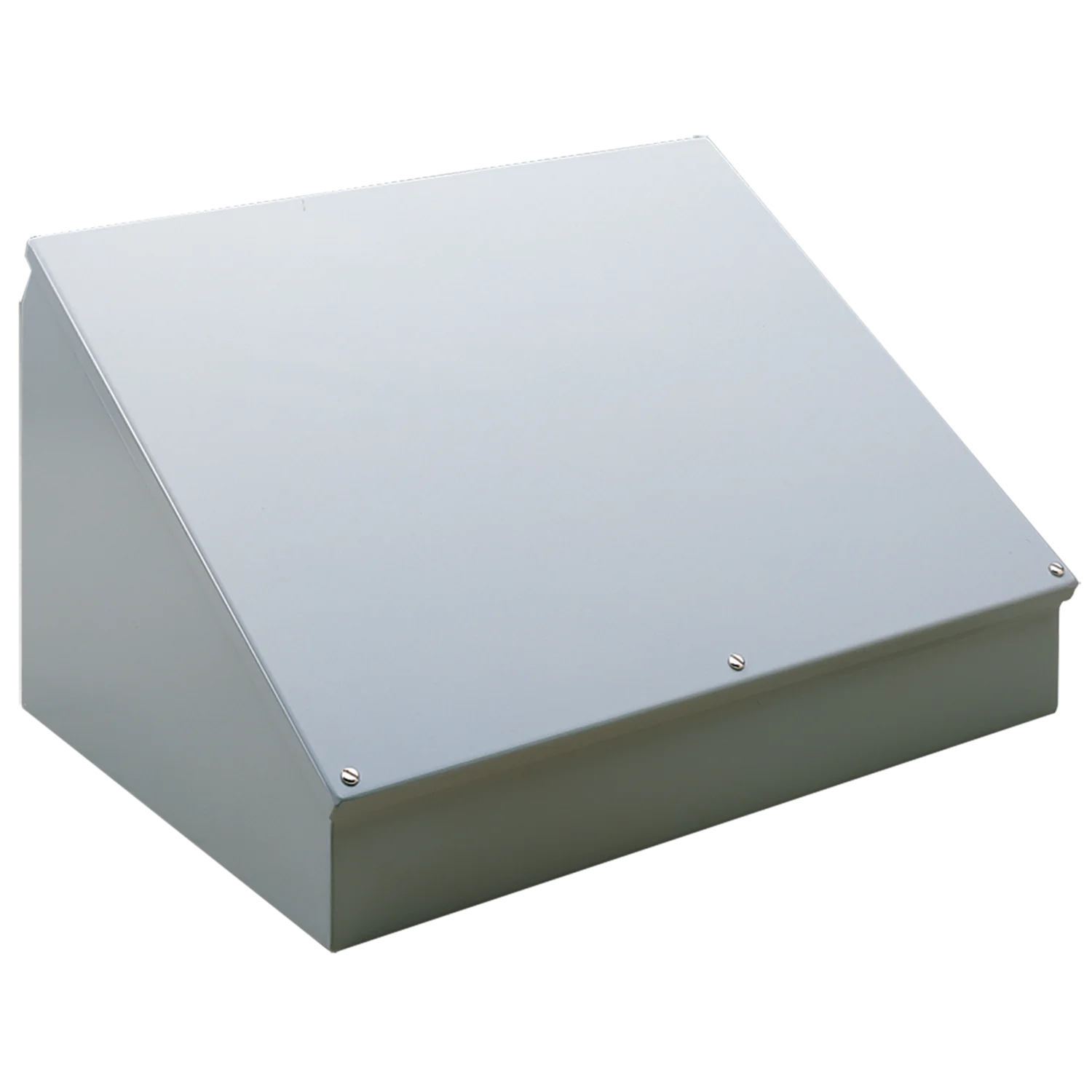

Hoffman C16C16 Consolet Enclosure Type 12, 16.00x16.00x11.09

Product Description

The HOFFMAN C16C16 consolet enclosures are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.

• Can be positioned on either of two sides to provide a 30- or 60-degree surface access
• Seams continuously welded and ground smooth
• No holes or knockouts

Product Highlights

The C16C16 consolet enclosures feature continuously welded seams, no holes or knockouts, and captivated cover screws that thread into sealed wells.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: C16C16

Technical Specifications

• Article Number: 59570
• Height: 16in
• Width: 16in
• Depth: 11.09in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Weight: 23lb
• UPC: 783510595708
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: C5
• Enclosure Interior Color: White
• Enclosure Hinge Type: Continuous Hinge
• Enclosure Latch Type: Screw Lift-Off
• Enclosure Mount Type: Pedestal Mount
• Enclosure Composition: Painted Steel
• Enclosure Environment Rating: Indoor
• Enclosure Door Type: Solid
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 12
• Manufacturer: Hoffman
• J Dimension: 16.28 in
• Dimension L: 14.62 in
• Dimension K: 15.5 in
• A x B x C: 16 x 16 x 11-1/16 in
• Dimension N: 14.38 in
• Dimension H: 16.28 in
• Dimension E: 9.62 in
• IP/NEMA Rating: IP65, 12, 13
• Type: Sloped Cover, Consolet Cover
• Product Width: 16 in
• Product Depth: 11.100 in
• Finish Type: Steel
• Style: Industrial
• UNSPSC Code: 31260000
• Approximate Depth: 11 in
• Approximate Height: 16 in
• Approximate Width: 16 in
• Brand: nVent HOFFMAN
• Color: Gray
• Enclosure Mounting: Desktop
• IP Rating: IP65
• Manufacturer Part Number: C16C16
• Series: HMI Series
• Size: medium in
• Unit of Measure: EA
