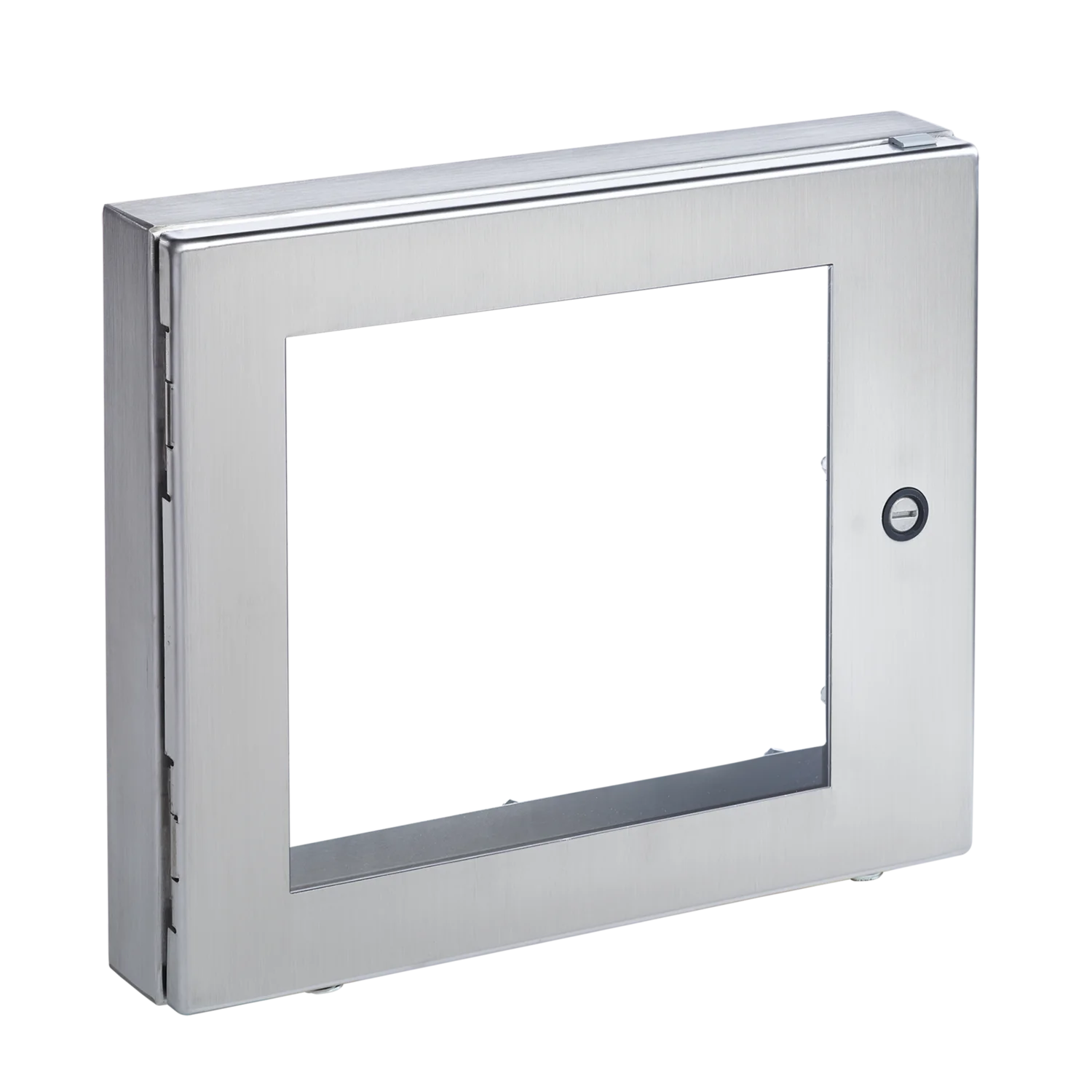

Hoffman AWDH1612N4SS Deep-Hinged Window Kit Type 4 and 4X, 14.19x8.14, SS Type 316

Product Description

The HOFFMAN AWDH1612N4SS deep-hinged window kits provide protection and visibility, allowing easy access to equipment and components. These kits are sized for direct mounting on enclosures with suitable mounting surfaces. They feature quarter-turn latching, clear polycarbonate windows, and a built-in gasket compression stop for flush mounting. Designed for left or right hinging.

• Quarter-turn latches for quick access
• 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
• 2.5-in. (64-mm) deep to allow for deep controls

Product Highlights

Provides protection, visibility, and easy access to displays, equipment, and components installed behind the viewing area.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AWDH1612N4SS
• Country of Origin: USA

Technical Specifications

• Article Number: 13014
• Height: 16in
• Width: 12in
• Material: Stainless Steel 316L
• Finish: Brushed #4
• Thickness: 14ga
• Window Size: 10.68 x 3.41in
• UPC: 783510130145
• EAN: 8713574254459
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A80SW
• Includes: Mounting Hardware
• Manufacturer Part Number: AWDH1612N4SS
• Size: 14.19 x 8.14 in.
• Type: Window Kit
• Enclosure Rating: 3R, 4, 4X, 12
• Enclosure Type: NEMA/EEMAC 3R, 4, 4X, 12
• Mounting Type: Wall
• Standard: 12,4,4X,CUL Listed,CUL Listed Per CSA C22.2,File No. E61997,IEC 60529,IP66Mild Steel,NEMA/EEMAC Type 3R,No. 94,Stainless Steel,Type 3R,Type 4,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• GTiN: 00783510130145
• Product UPC: 78351013014
• Depth: 2.73 Inch
• Length: 14.19 Inch
• IP/NEMA Rating: IP66, NEMA 3
• Standards: Build America Buy America Compliant
• Color: Gray
