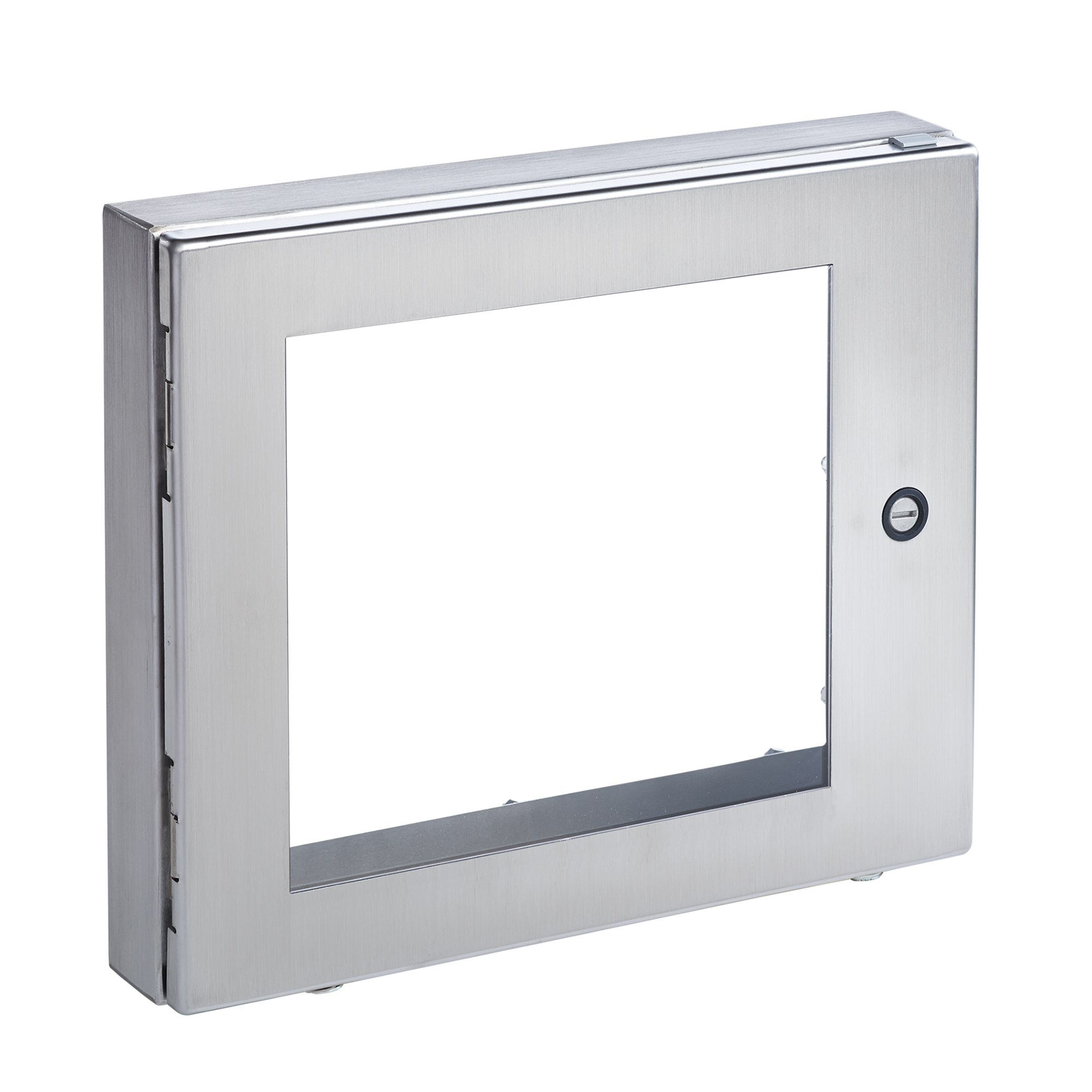

Hoffman AWDH1612N4 Deep-Hinged Window Kit 14.19 x 8.14

Product Description

The HOFFMAN AWDH1612N4 deep-hinged window kits provide protection and visibility, allowing easy access to displays and components. These window kits are sized for direct mounting on enclosures with suitable mounting surfaces. Designed for controls and power distribution applications.

• Quarter-turn latches for quick access
• 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
• 2.5-in. (64-mm) deep to allow for deep controls

Product Highlights

Provides protection, visibility, and easy access to displays and equipment. Designed for left or right hinging and includes mounting hardware.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AWDH1612N4
• Country of Origin: US - United States

Technical Specifications

• Article Number: 13005
• Height: 16in
• Width: 12in
• Material: Polyester, Metal, Polycarbonate, Stainless Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Window Size: 10.68 x 3.41in
• UPC: 783510130053
• Bulletin Number: A80W
• NEMA Rating: 4 Watertight
• Mounting Type: Wall
• Type: Window Kit
• Depth: 4.5 in.
• Accessory Type: Window Kits
• Application: Controls and Drives; Power Distribution
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: AWDH1612N4
• Country of Origin: US
• EU RoHS Indicator: RCP
• Harmonization Tariff Schedule Code: 7326908688
• Height [Metric]: 15.8750 cm
• Interchangeable: No
• IP Rating: IP66
• Item Group: A80W
• Length: 11.8800 in
• Length [Metric]: 45.4152 cm
• Modification Services: Yes
• Package Quantity: 1
• Size: 14.19 x 8.14 in
• Standards: cUL Listed per CSA C22.2 E61997, EU Certified, IEC 60529, IP66, RoHS Compliant, UL 508A E61997
• Thickness [Metric]: 1.9 mm
• UNSPSC: 39121321
• UPC 11: 78351013005
• UPC 12: 783510130053
• Width [Metric]: 30.1752 cm
• Window Size [Metric]: 271 x 87 mm
• Brand: nVent HOFFMAN
• Manufacturer: HOFFMAN ENCLOSURES
• ECCN: EAR99
• GTIN: 0783510130053
• Suitable For: Wall
• Box Shape: Rectangular
• Model: AWDH1612N4
• Item Height: 5 in
