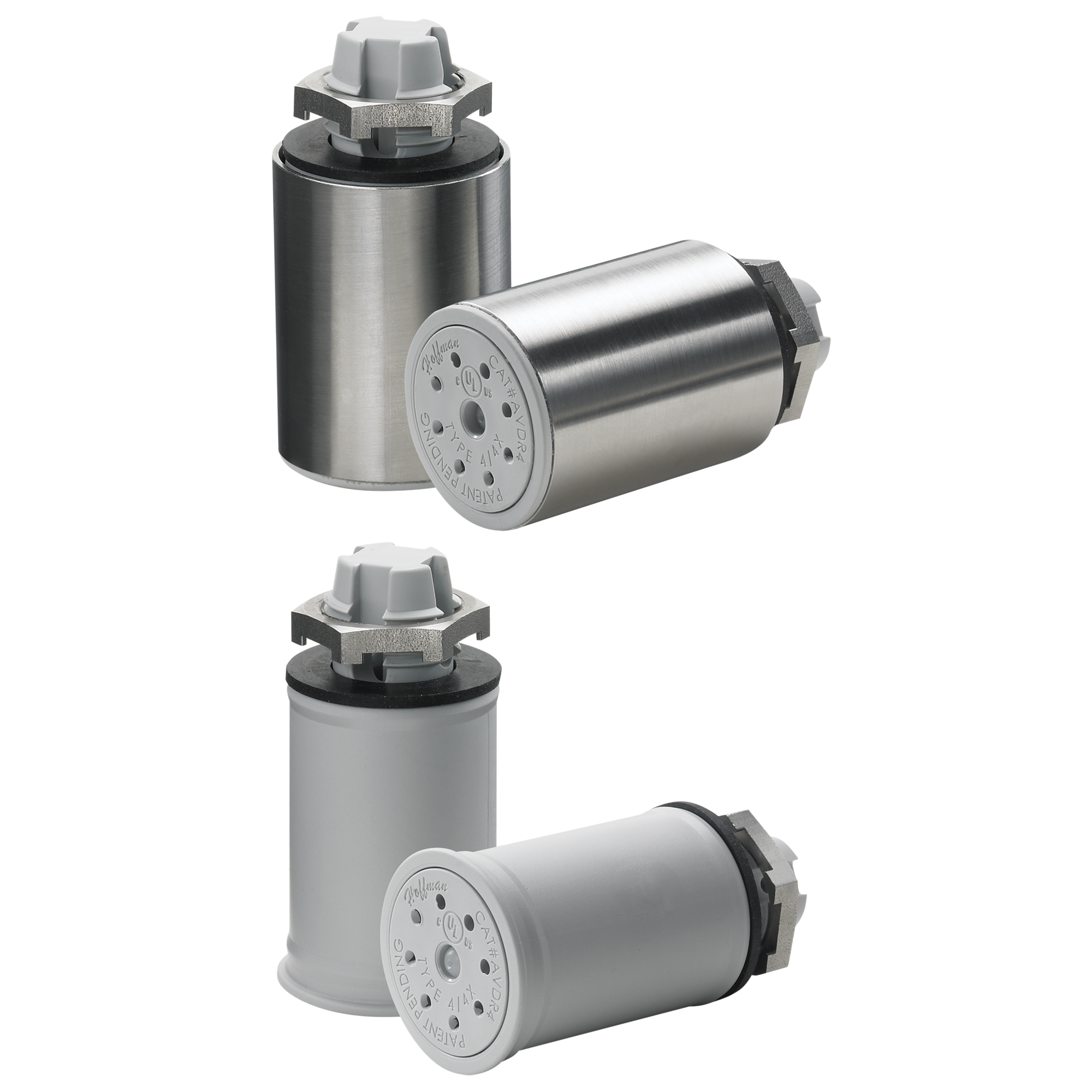

HOFFMAN AVDR4NM VENT DRAIN TYPE 4 COMPOSITE (2.00x1.25 OD)

Product Description

Hoffman AVDR4NM Vent Drain allows water to exit from the bottom of an enclosure. This product is UL-approved and acts as an air pressure equalizer. It reduces the risks caused by temperature-induced vacuums that can pull moisture into the enclosure.

• Uses gravity for effective drainage of collected liquids
• One-way shut-off to prevent contaminants from entering
• Compatible with various enclosure materials

Product Highlights

The vent drain ensures that moisture does not harm electrical components while maintaining UL Type ratings when installed correctly.

Product Information

Standard Information

• Manufacturer: Hoffman Enclosures Inc
• Part Number: 651038

Technical Specifications

• Material: Polyester
• Dimensions: 2.00 inches outer diameter x 1.25 inches
• UNSPSC Code: 24102001
• Installation: Fits in a seven-eighths inch hole or a half-inch NPT/NPS conduit hub
• Application: For use in mild steel, aluminum, stainless steel, or non-metallic enclosures
• Weight: 0.15 pounds
• Finish: Smooth matte
