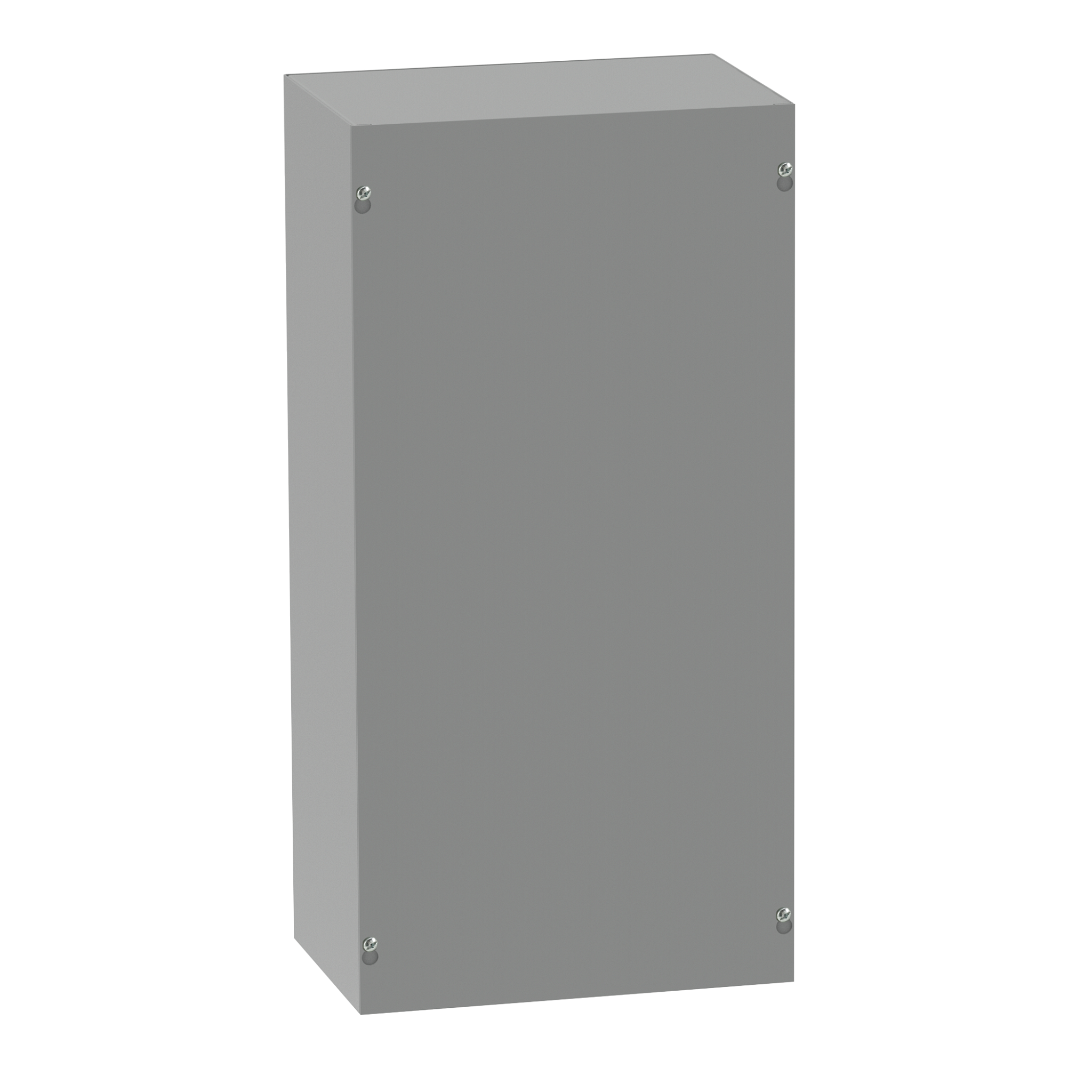

Hoffman ASE8X6X6NK Screw-Cover Enclosure 8x6x6 No Knockouts

Product Description

The HOFFMAN ASE8X6X6NK Screw-Cover Enclosure is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.

• Unique keyhole screw slots in the cover
• Available with or without knockouts
• Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts

Product Highlights

The enclosure features flat, removable covers fastened with plated steel screws, provision for grounding, and mounting holes on the back of the box.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ASE8X6X6NK
• Country of Origin: MX

Technical Specifications

• Article Number: 49439
• Height (H): 8in
• Width (W): 6in
• Depth (D): 6in
• Material: Mild Steel
• Finish: Painted
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: No
• Cover Screw Quantity: 2
• UPC: 783510494391
• Application: Power Distribution
• ARRA Compliant: C
• Assemble to Order: No
• Catalog Number: ASE8X6X6NK
• Color: Gray
• Country of Origin: MX
• Body Thickness [Metric]: 1.52 mm
• Door Thickness [Metric]: 1.52 mm
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Height [Metric]: 15.4940 cm
• Interchangeable: No
• IP Rating: IP30
• Item Group: A90P1
• Length [Metric]: 19.8120 cm
• Modification Services: Yes
• Number of Screws: 2
• Package Quantity: 1
• Size: 8.00x6.00x6.00 in
• Standards: UL 50, 50E Listed, Type 1, File No. E27525, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27525, NEMA/EEMAC Type 1, IEC 60529, IP30, RoHS Complaint
• Style: Painted
• Type: Pull and Junction Boxes
• UNSPSC: 39121303
• UPC 11: 78351049439
• UPC 12: 783510494391
• Width [Metric]: 16.0020 cm
• Brand: nVent HOFFMAN
• Manufacturer: HOFFMAN ENCLOSURES
• NEMA Rating: 1 Indoor
• Approximate Depth: 6 in
• Approximate Height: 8 in
• Approximate Width: 6 in
• Series: AS Series
• UPC Code: 78351049439
• ECCN: EAR99
• Cover Mounting: Screw
• Enclosure Cover Type: Screw Cover
• With Knockouts: No
