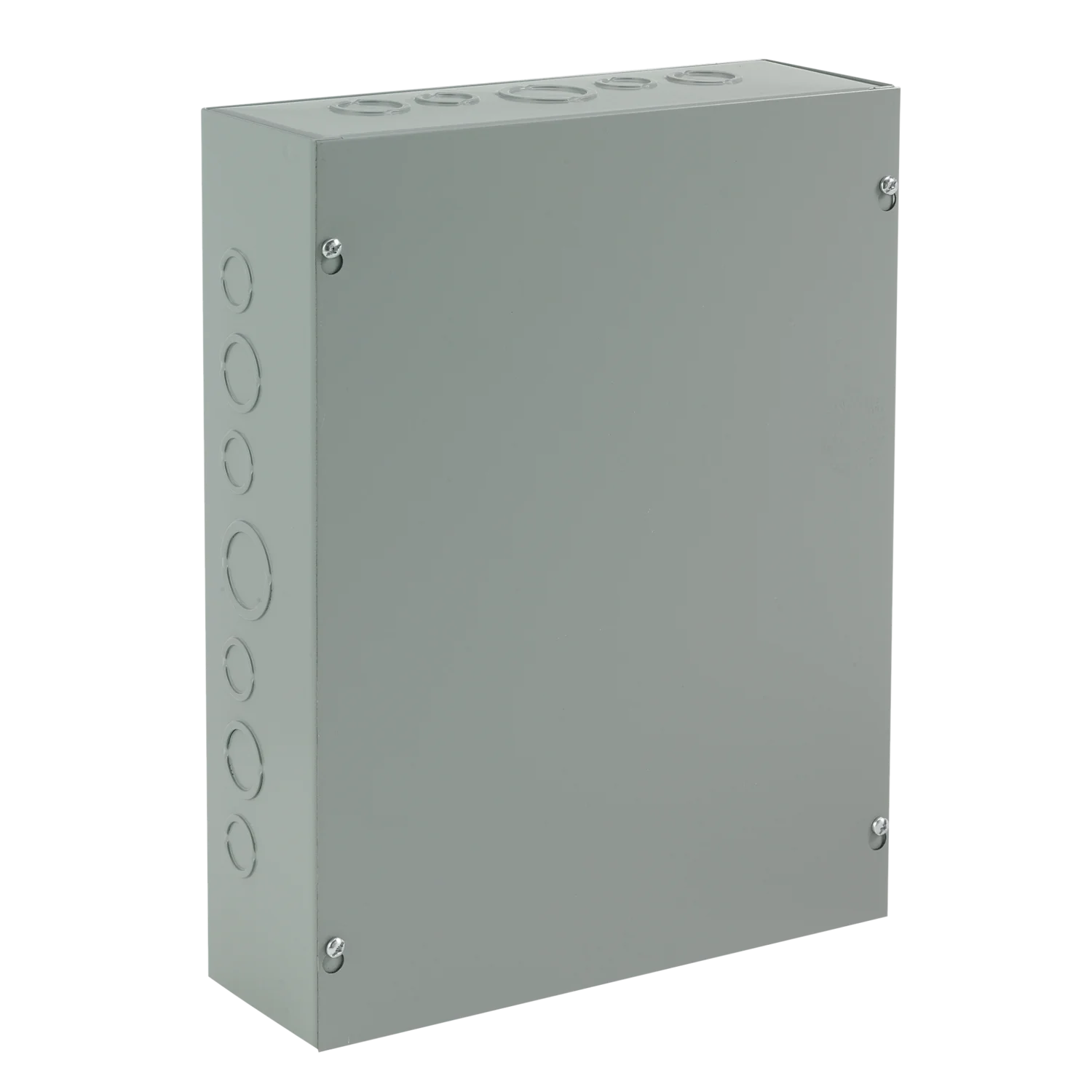

Hoffman ASE16X12X4 Screw-Cover Enclosure Type 1 16x12x4

Product Description

The Hoffman ASE16X12X4 screw-cover enclosure, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.

• Unique keyhole screw slots in the cover
• Available with or without knockouts
• Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts

Product Highlights

The Hoffman ASE Series Screw Cover Boxes serve as surface-mounted junction boxes or switch boxes. With the addition of a field-installed perforated subpanel, they can also house controls and instruments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ASE16X12X4
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 86430
• Height (H): 16in
• Width (W): 12in
• Depth (D): 4in
• Material: Mild Steel
• Finish: Painted
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Knockout Pattern Along A Sides: B-C-D-E-F-G-H
• Knockout Pattern Along B Sides: C-D-E-F-G
• UPC: 783510864309
• Type: Enclosure Only
• Enclosure Width: 12 in
• Enclosure Height: 16 in
• Enclosure Depth: 4 in
• Enclosure Rating: NEMA 1
• Mount: Screw
• ECCN: EAR99
• UNSPSC: 39121303
• Application: Commercial, General Industrial Applications
• Cover Mounting: Screw Cover
• Enclosure Cover Type: Screw Cover
• Height: 16 in.
• Depth: 4 in.
• Width: 12 in.
